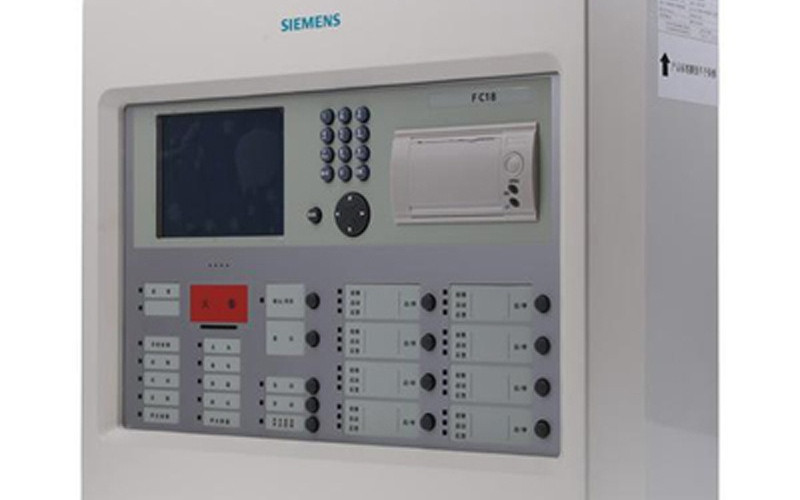

Siemens FC1820 fire alarm controller
Overview of FC1820 Fire Alarm Controller
The FC1820 fire alarm controller combines advanced technology with a user-friendly design to provide robust fire detection solutions suitable for various environments. Its extensive features make it ideal for comprehensive fire safety management systems.
The FC1820 fire alarm controller is a sophisticated device designed for effective fire detection and alarm management. Below is a detailed description of its features and specifications:
Key Features
l Compliance with Standards:
The controller adheres to national standards GB4717-2005 and GB16806-2006, ensuring reliability and safety in fire alarm systems.
l User-Friendly Interface:

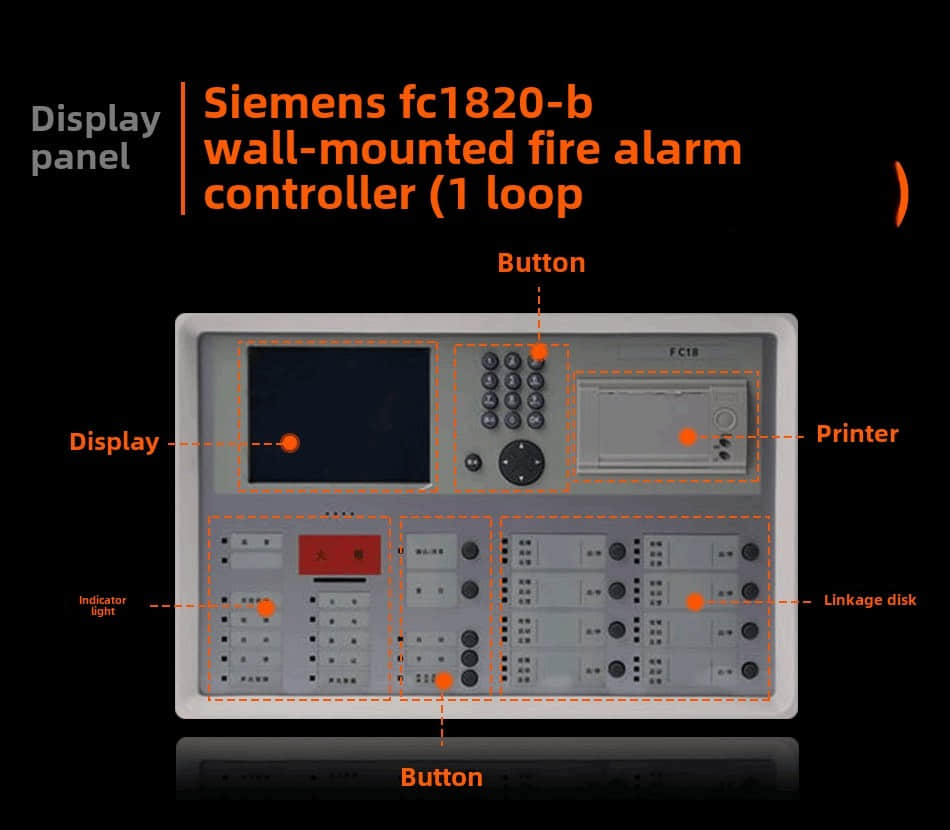

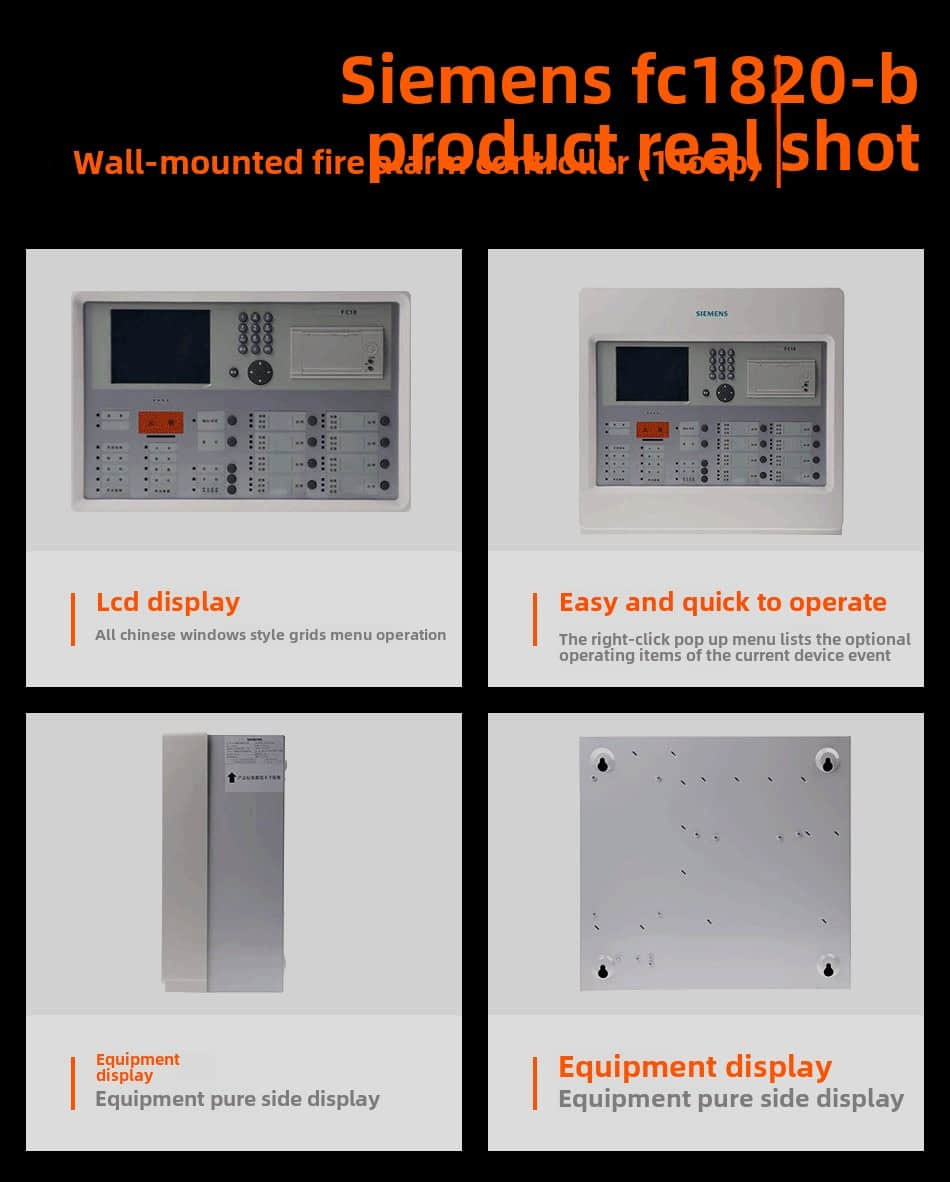

It features an entirely Chinese Windows-style menu, making navigation intuitive and straightforward. A right-click context menu provides quick access to available actions for devices and events.
l Extensive Storage Capacity:
This controller can store up to 3,000 historical records and logs all events during operation, facilitating easy access to past data.
l Automatic Screen Protection:
When inactive for a set period without alarms or faults, the controller automatically enters screen saver mode to prolong the life of the LCD. The screen lights up automatically upon event detection.
l Programmable I/O Options:
It includes two programmable input/output channels (40mA@24VDC), allowing for customizable alarm and fault outputs.
l Alarm Notification System:
The controller has one sound and light control circuit (0.5A@24VDC) for effective alarm signalling.
l Multi-Line Control:
Equipped with eight multi-line control circuits for manual or automatic operation of critical devices.
l Group Programming:
Devices can be grouped for programming, simplifying logic relationships and saving time during setup.
l Networking Capabilities:

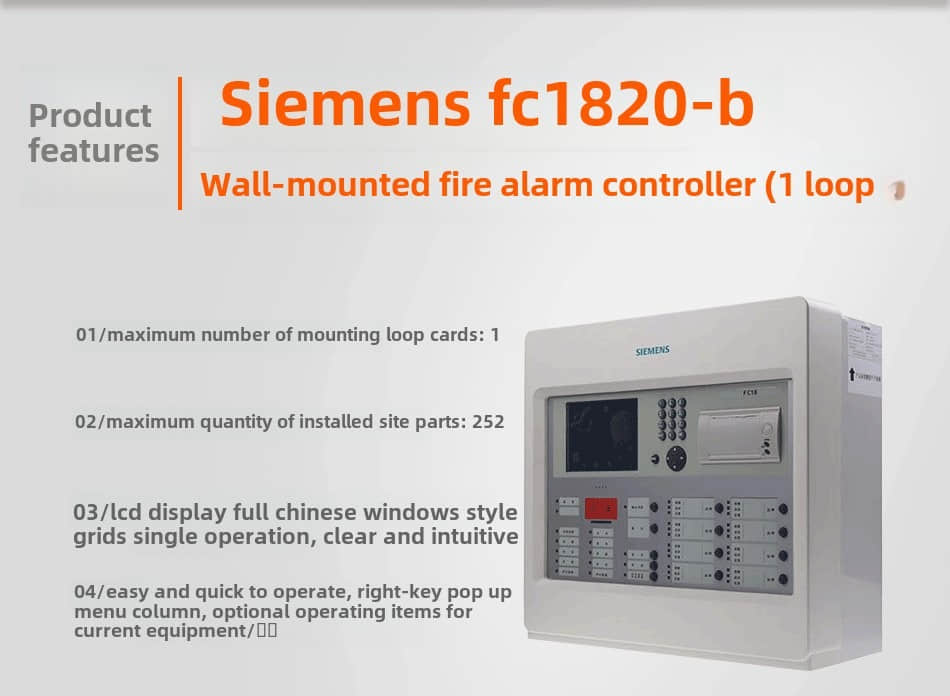

It supports up to 252 points on a single controller and can network up to eight controllers for expanded coverage.
l Communication Protocols:
The FC18-BUS network allows communication over distances up to 1000 meters, while the loop bus can extend up to 2500 meters.
l User Access Levels:
Passwords protect three user interface levels (primary, secondary, and tertiary), allowing different operational capabilities based on user authentication.
l Easy Installation and Maintenance:
Pluggable terminal blocks with clear labelling simplify installation and maintenance tasks.
l Adaptive Sensitivity Adjustment:
The controller can adjust the detectors' sensitivity automatically based on environmental changes, enhancing reliability in fire detection.
l Flexible Programming Options:
Programming can be performed directly on the controller or via a computer, providing versatility in setup processes.
l Efficient Debugging Tools:
Advanced coding label debugging methods streamline troubleshooting and installation efforts.

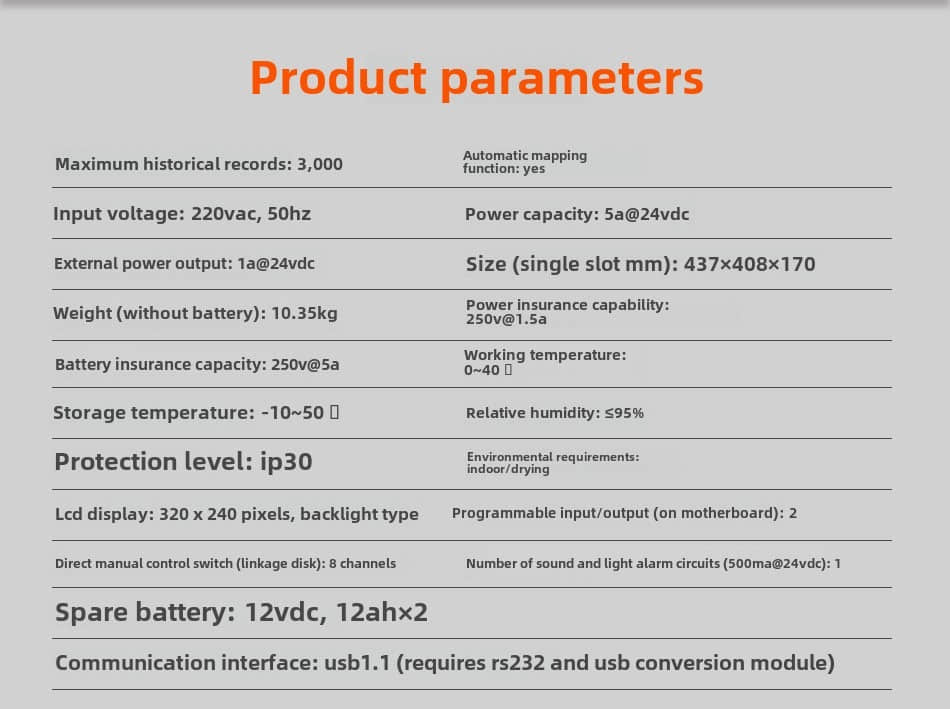

Technical Specifications
l Parameter Specification

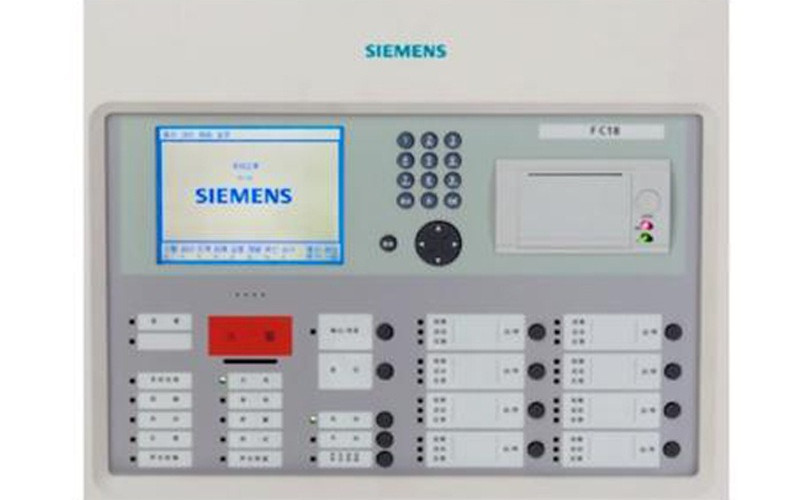

l LCD Display 320×240 pixels, backlit
l Programmable I/O 2
l Manual Control Switches 8 channels
l Alarm Output Channels 1 (500mA@24VDC)
l Maximum Historical Records 3,000
l Automatic Mapping Function Yes
l Backup Battery 12 V DC, 12 AH×2
l Communication Interface USB 1.1 (requires RS232/USB converter)
l Input Voltage 220 V AC, 50 Hz
l Power Capacity 5A@24VDC
l External Power Output 5A@24VDC

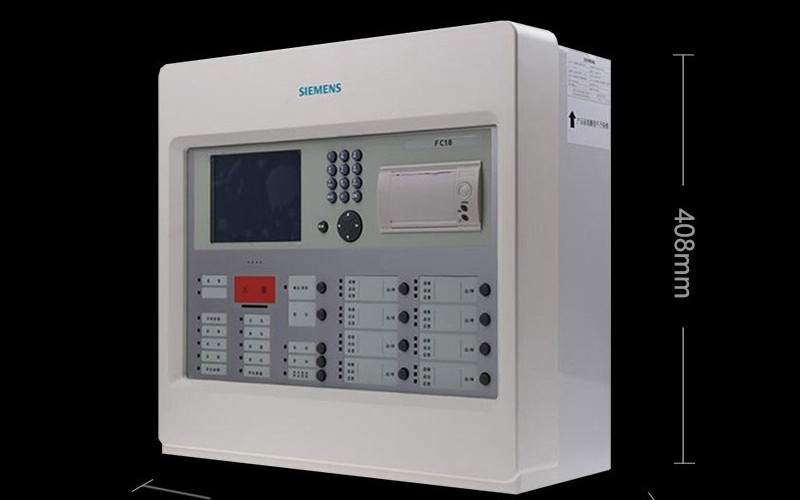

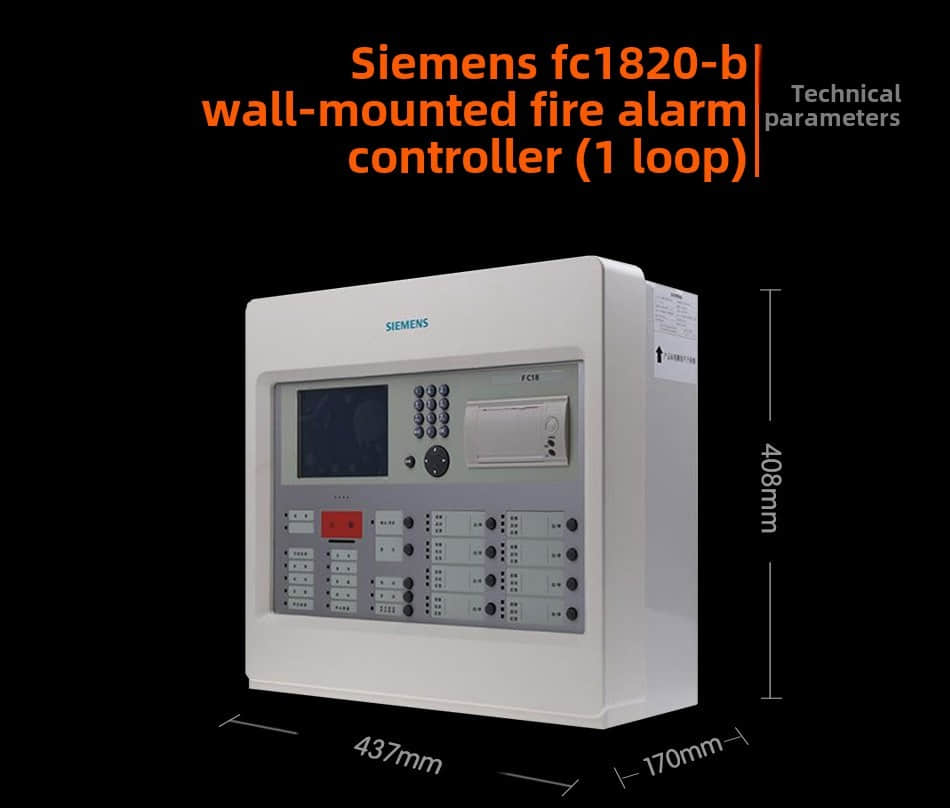

l Dimensions (mm) 437×408×170
l Weight (without battery) 10.35 Kg
l Operating Temperature 0 ~ 40°C
l Storage Temperature -10 ~ 50 °C
l Humidity ≤95%
l Protection Level IP30
l Environmental Requirements Indoor/Dry
