As an operator panel within the Siemens SIMATIC product ecosystem, the Siemens 6AV6642-0BA01-1AX1 corresponds to the SIMATIC TP177B PN/DP touch panel. Though officially discontinued, this hardware maintains an active service life and replacement demand across legacy industrial automation applications. This technical guide outlines core specifications, integration limits, and troubleshooting procedures for maintenance engineers and procurement teams.

1. Core Technical Specifications

Verify these electrical and physical parameters during spare parts matching and loop maintenance:

• Model Identifier: Siemens SIMATIC TP177B PN/DP (6av6642-0ba01-1ax1, 6av6 642-0ba01-1ax1, siemens 6av6642-0ba01-1ax1)

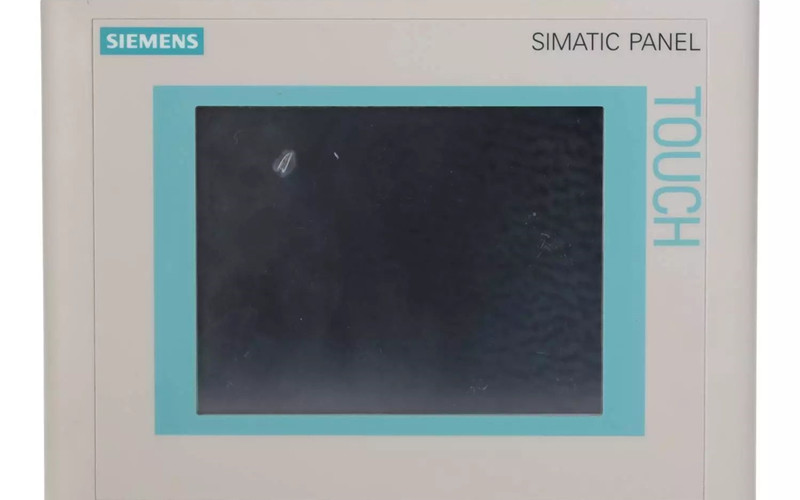

• Display Configuration: 5.7-inch STN LCD, 256 colors, $320 \times 240$ pixel resolution

• Communication Interfaces: MPI and PROFIBUS DP, with RS485/RS422, USB, and 10/100M Ethernet ports

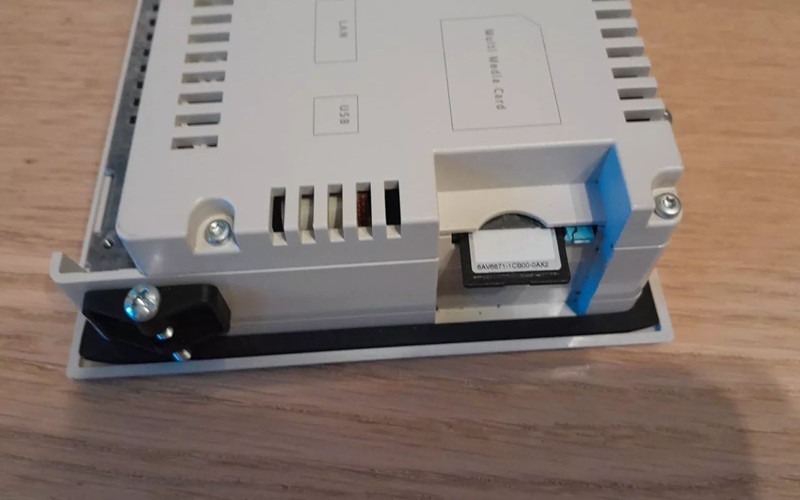

• Memory Capacity: 2048 KB user memory, 32 KB recipe memory, with MMC/SD card storage expansion slots

• Enclosure Rating: Front panel IP65, rear housing IP20 for industrial dust and moisture protection

• Power Supply: 24V DC input ($20.4\text{V}$ to $28.8\text{V}$ DC range)

• Environmental Limits: Operating temperature $0^\circ\text{C}$ to $50^\circ\text{C}$ (vertical mounting); storage temperature $-20^\circ\text{C}$ to $+60^\circ\text{C}$; maximum relative humidity $\le 90\%$

• Engineering Software: Configured via WinCC flexible 2005

• Mean Time Between Failures (MTBF): Approximately 50,000 hours at $25^\circ\text{C}$

2. Functional Characteristics & Software Integration

• Operator Interaction: Combines a touch-sensitive interface with programmable tactile function keys for alarm acknowledgement, system resets, and process commands.

• Visualization & Data Management: Supports dynamic trend plotting, alarm management, 32 switchable project languages, and internal recipe archiving via removable MMC/SD media.

• Part Numbers & Variants: Maintenance teams frequently cross-reference related legacy configurations, including variant designations like 6av6642-0dc01-1ax1, 6av6642-0ba01-1ax0, and short part codes such as 6av66420ba011ax1 to ensure correct hardware swaps.

3. Industrial Application Sectors

• Automated Production Lines: Deployed for real-time equipment status tracking and parameter entry to support manufacturing throughput.

• Process Control Systems: Integrates via PROFIBUS DP and MPI ports with programmable logic controllers (PLCs) and remote instrumentation loops.

• Machinery & CNC Panels: Used across specialized industrial machining centers requiring human-machine interaction.

4. Frequently Asked Questions (FAQ)

1. Can this panel be configured in TIA Portal V15?

No. Legacy operator panels are not supported in TIA Portal V15. Upgrading projects to V15 triggers an error stating the device is unsupported in that release. These older panels require WinCC flexible or compatible legacy software versions.

2. How should unresponsiveness or touch drift be handled?

If the touch screen fails to register inputs correctly, contamination or dust buildup around the reflective perimeter frames may interfere with the sensors. Clean the edges with a dry, soft cloth, power cycle the hardware, and perform a touch screen calibration.

3. Is the TP177B certified for hazardous area deployment?

Yes. This panel is approved for installation in Ex Zone 2 hazardous atmospheres without requiring additional explosion-proof enclosures.

4. How can project and recipe data be backed up?

Project files, machine parameters, and recipes can be backed up or transferred using standard MMC/SD memory cards inserted into the external storage slot.
