Siemens 6ES7321-1BL00-0AA0 data sheet

6ES73211BL000AA0_datasheet_en.pdf

1. Technical Specifications & Operational Parameters

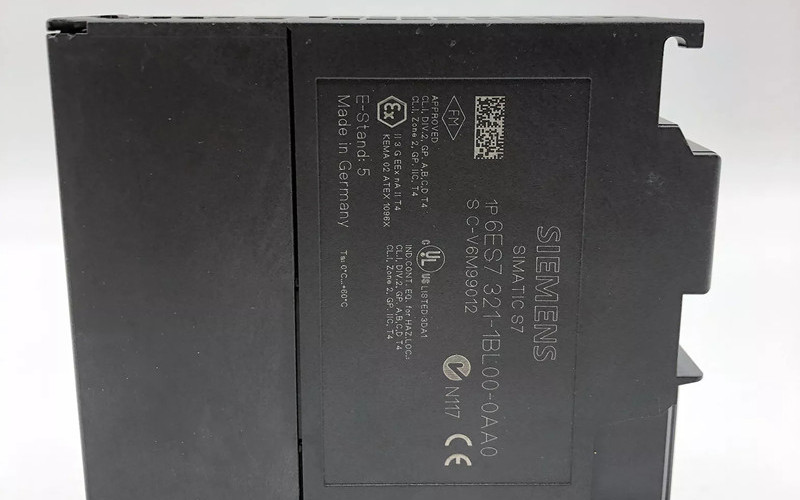

In the architecture of automated control systems, the electrical characteristics of core hardware directly determine the stability of the entire control loop. As a core component of the SIMATIC S7-300 series, the Siemens 6ES7321-1BL00-0AA0 is a high-density 32-channel digital input (DI) module. Its design strictly complies with the IEC 61131 standard (Type 1), making it perfectly suited for connecting standard switches and two-wire proximity switches (BERO) on site.

The module has a rated operating voltage of 24V DC (with an allowable fluctuation range from 20.4V to 28.8V DC), and a typical input current of 7 mA for a "1" signal. Regarding signal level definitions, the "0" signal threshold ranges from -30 to +5V, while the "1" signal requires 13 to 30V. The input delay is fixed between 1.2 ms and 4.8 ms (non-parameterizable), effectively balancing response speed with anti-interference capability.

Engineering Field Insight: From our hands-on commissioning experience in heavy industrial environments, the fixed input filter time (1.2–4.8 ms) effectively suppresses high-frequency contact bouncing from mechanical limit switches, significantly reducing false-triggering risks in noisy motor-control cabinets.

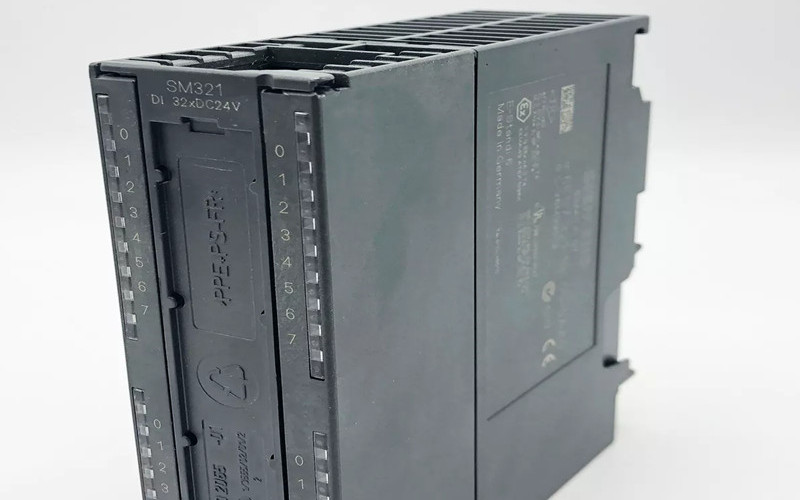

In terms of structure and safety, the module features a typical power dissipation of 6.5 W, utilizing optocoupler isolation between channels and the backplane bus, as well as grouped channel isolation (16 channels per group). Physically, it measures 40×125×120 mm, weighs approximately 260 g, and is equipped with a 40-pin front connector. For wiring distance, it supports up to 1,000 meters for shielded cables and 600 meters for unshielded cables. Green LED status indicators are integrated into the front panel to facilitate rapid on-site inspection.

2. Wiring, Installation, and Troubleshooting Best Practices

Standardized hardware installation and proper wiring are prerequisites for long-term fault-free operation in industrial environments. The module adopts a compact structure, supporting direct installation on standard DIN rails. Input addresses are automatically determined by the rack slot position without strict slot restrictions; when used in ET 200M distributed I/O in combination with active bus modules, it further supports live hot-swapping.

For electrical connections, field signals must be routed through a 40-pin front connector. To prevent wiring errors, specific pin assignment diagrams are clearly marked on the label inside the module's front door. In industrial sites subject to complex electromagnetic interference, it is recommended to strictly follow specifications by using shielded cables to fully leverage its long-distance transmission anti-interference potential.

Diagnostics & Maintenance Note: While this specific DI module lacks advanced diagnostic or process alarms, its onboard group-isolated design and clear front-panel LED indicators allow maintenance engineers to quickly isolate faulty loops during routine panel check-ups without interrupting the entire rack.

3. Supply Chain, Procurement, and Global Logistics

In industrial spare parts supply chain management, rapid response and stable stock channels are critical to minimizing enterprise downtime losses. For the Siemens 6ES7321-1BL00-0AA0 module, suppliers across various domestic regions (such as Shanghai and Fujian) maintain ready stock.

Regarding logistics and delivery, mainstream suppliers generally support dispatching orders within one working day. For overseas projects or international procurement requirements, direct communication with suppliers regarding export packaging, customs clearance documents, and international shipping plans is recommended to ensure spares arrive on site on schedule.
