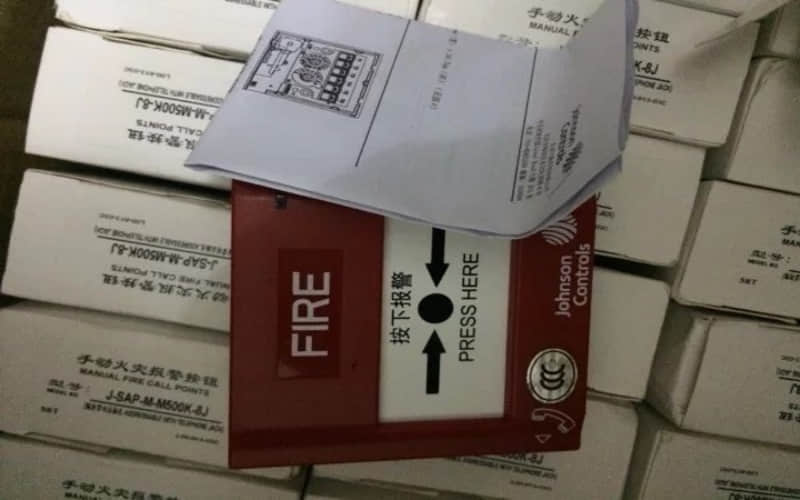

Johnson Controls J-SAP-M-M500K-8J Manual Fire Alarm Button

1. Overview of the J-SAP-M-M500K-8J Manual Fire Alarm Button

A. The M500K-8J can connect up to 8 traditional manual alarm buttons, with terminal numbers 3 (−) and 4 (+) as connection points.

B. It comes with a unique test key to verify its alarm functionality. When ordering, please select the model with a telephone jack. The installation box, model BBS-X, must be ordered separately.

2. Features of the J-SAP-M-M500K-8J Manual Fire Alarm Button

l Suitable for Direct or Surface Mounting

l Addressable: Occupies one module address

l Compatible with Standard Alarm Buttons: Can be connected in parallel with ordinary alarm buttons.

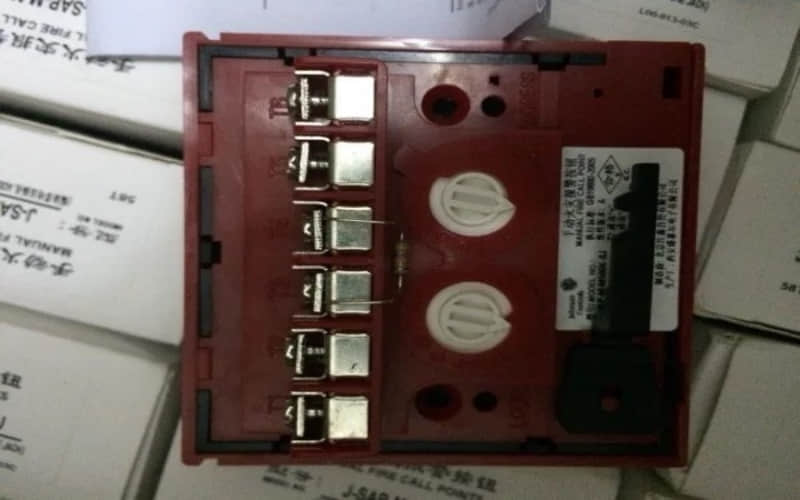

l Screw Terminals: Convenient for wiring

l LED Indicator: Displays operational status

3. Technical Specifications of the J-SAP-M-M500K-8J Manual Fire Alarm Button

l Model J-SAP-M-M500K-8J

l Name Manual Fire Alarm Button

l Brand Johnson Controls

l Operating Voltage 15-30 VDC

l Static Current 200 µA

l Alarm Current 5 mA
