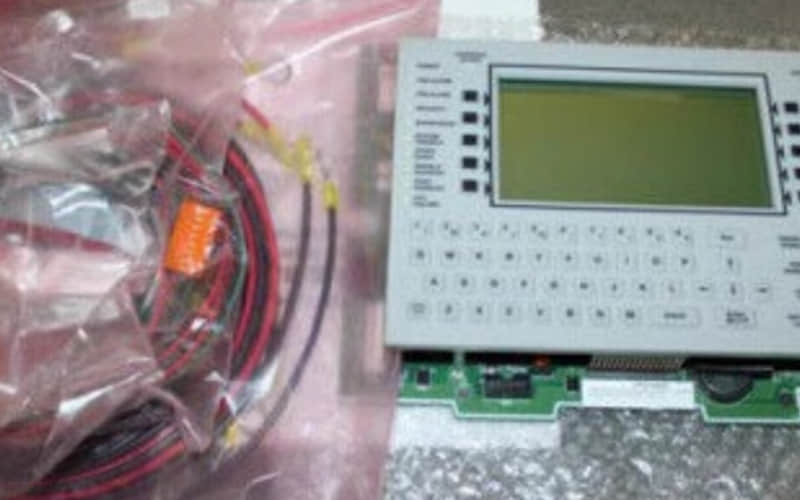

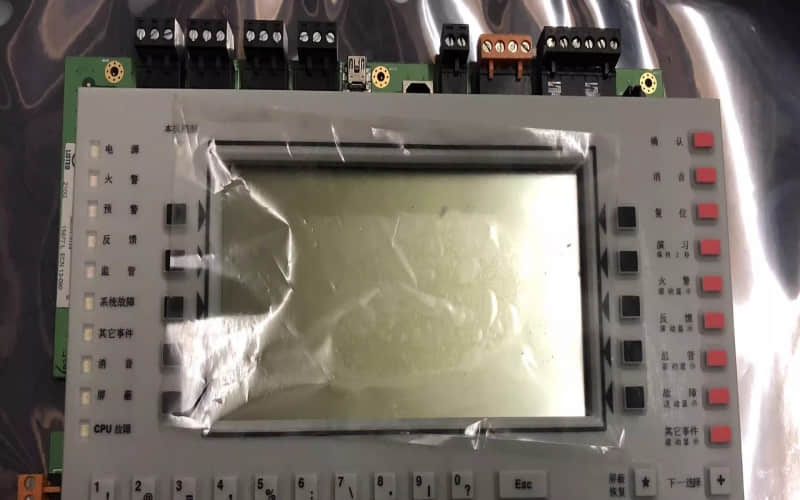

Johnson Controls IFC2-3030 JCPU2-3030D-SC Fire Alarm Control Panel Technical Guide
General Description
The Johnson Controls IFC2-3030 (JCPU2-3030D-SC) is a state-of-the-art intelligent fire alarm control panel engineered for high-capacity life safety and emergency management networks. Featuring an intuitive, user-friendly interface anchored by a large 640-character backlit LCD display (16 lines by 40 characters), it delivers real-time situational awareness regarding fire events, system statuses, and diagnostic logs.
Designed to support multiple Signalling Line Circuits (SLCs), the panel accommodates expansive connectivity for thousands of intelligent addressable devices, making it a benchmark solution for complex commercial, industrial, and institutional safety infrastructures.
Technical Specifications
| Parameter | Specification Details |
| Model Designation | IFC2-3030 / JCPU2-3030D-SC |
| Primary Power Supply | 24V DC nominal system power |
| System Current Draw | Variable dependent upon loop configuration and module load |
| Display Interface | 640-character backlit LCD (16 lines $\times$ 40 characters) with QWERTY keypad |
| Device Capacity | Supports up to 3,180 intelligent addressable devices per panel network |
| Signalling Line Circuits (SLC) | Configurable scalability from one to ten SLC loops |
| Operating Temperature Range | $0\text{ }^\circ\text{C}$ to $49\text{ }^\circ\text{C}$ ($32\text{ }^\circ\text{F}$ to $120\text{ }^\circ\text{F}$) |
| Operating Humidity | Up to 93% relative humidity ($\pm2\%$ at $32\text{ }^\circ\text{C} \pm2\text{ }^\circ\text{C}$) |
Detailed Features & System Capabilities
Advanced Addressable Technology: Employs sophisticated polling algorithms to rapidly identify alarm conditions, pre-alarms, and individual device troubles.
Modular Expandability: Can be customized with a variety of expansion modules, including digital voice evacuation systems, firefighter telephone units, and supplementary SLC cards.
Network & Remote Monitoring: Fully compatible with network integration cards and internet monitoring modules (such as the FireWatch Series) for centralized multi-site oversight.
Typical Applications
The IFC2-3030 JCPU2-3030D-SC panel is trusted across diverse mission-critical sectors:
Commercial Buildings: High-rise offices, retail complexes, and mixed-use developments requiring strict life safety compliance.
Industrial Facilities: Manufacturing plants and logistics warehouses with demanding environmental monitoring needs.
Healthcare Institutions: Hospitals and clinics requiring rapid, reliable alerts to safeguard vulnerable patients.
Educational Campuses: Schools and universities needing coordinated, clear campus-wide emergency notifications.
Installation & Commissioning Procedure
Site Preparation: Select a clean, dry, climate-controlled location that permits unobstructed access for system testing and maintenance personnel.
Panel Mounting: Securely mount the backbox enclosure using structural mounting hardware, ensuring adequate ventilation spacing to prevent thermal buildup.
Wiring & SLC Connections: Terminate power leads and field SLC loops according to engineering schematics, maintaining strict polarization standards.
Functional Testing: Energize the primary power circuit, execute diagnostic routines, and verify loop response across initialized zones.
System Configuration: Program custom point descriptions and site-specific logic via the QWERTY keypad interface, logging all parameters for future audits.
Related Part Numbers, System Compatibility & Accessories
When engineering or servicing large-scale fire detection loops using the IFC2-3030 architecture, technicians frequently audit supporting central processing units, chassis options, and peripheral interface components:
Johnson IFC2-640: Scaled alternative model suited for smaller commercial applications.
Johnson JCPU2-3030D: Central processing unit variant configured without an integrated display panel.
System Accessory & Hardware Integration
To ensure secure mounting, reliable signal termination, and precise circuit zoning within comprehensive Johnson Controls and Notifier-compatible fire protection networks, standard accessory modules and interface bases must be correctly matched:
Johnson Controls C877-10 & C877-55: These specialized mounting bases and interface hardware components are widely deployed alongside central control cards and detector loops to establish secure electrical continuity and mechanical stability across high-density device installations.
Johnson Controls C879: Utilized as an essential system accessory or wiring interface module within established fire alarm control panel (FACP) layouts, ensuring smooth signal distribution and robust multi-line circuit integration.
If you require official engineering documentation, custom panel layout schematics, or bulk quotation support for the IFC2-3030 system, please contact our technical support team.
