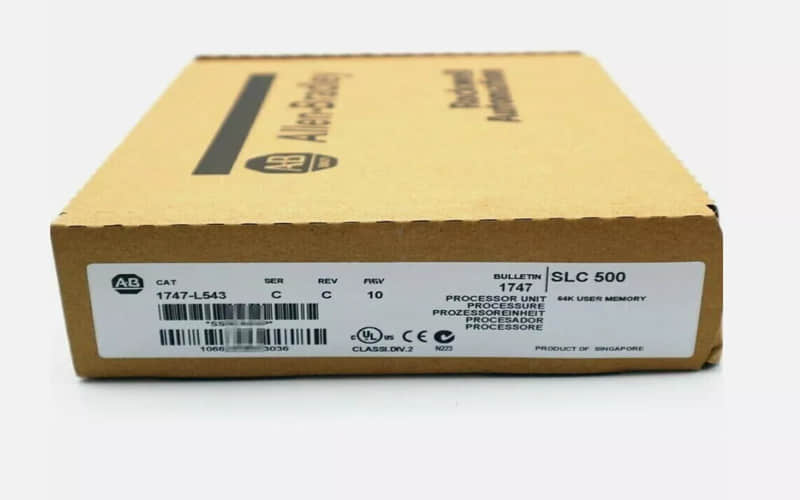

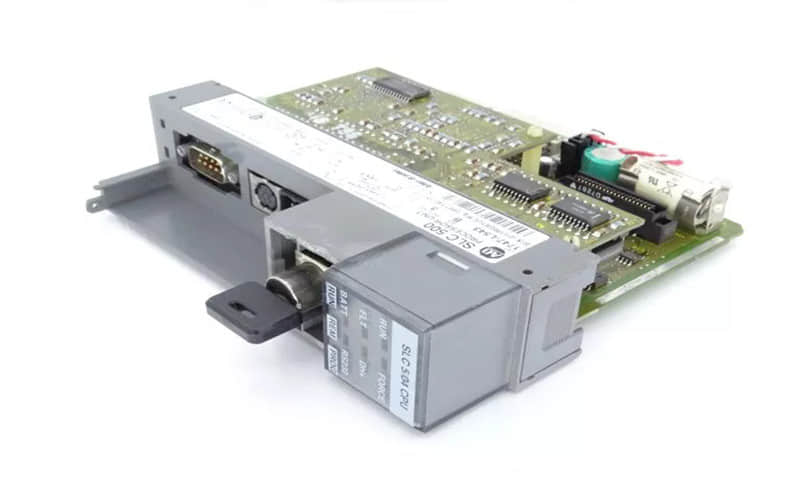

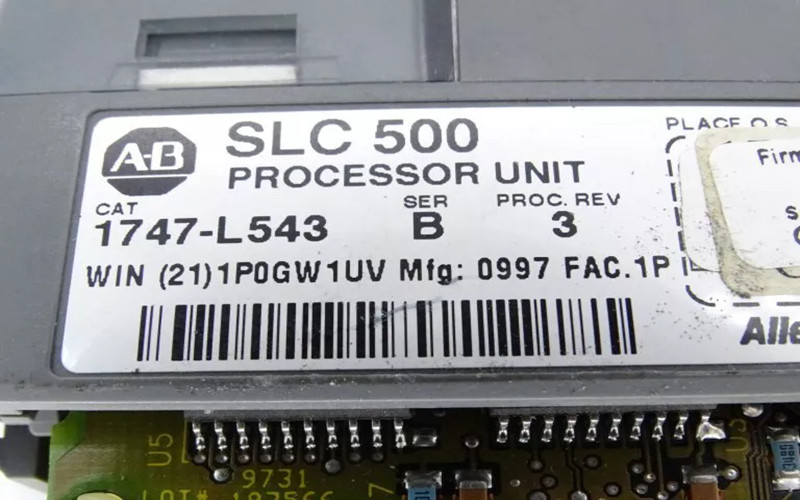

Allen-Bradley 1747-L543 Processor Unit

General Description:

 It features an integrated memory capacity of 64K words, with 60K allocated for data and programs, making it suitable for complex control strategies.

Technical Specifications:

l Manufacturer: Rockwell Automation

l Brand: Allen-Bradley

l Part Number: 1747-L543

l Series: SLC 500

l Memory Capacity: Up to 64 KB (60K for data/programs)

l I/O Capacity: Up to 4096 discrete inputs/outputs

l Program Scan Time: Average of 0.9 ms/K

l Communication Ports: DH+ and RS-232

l Operating Temperature: 0 to 60 °C

Detailed Features of 1747-L543 Processor Unit:

1. Integrated LED Indicators: For easy diagnostics.

2. Flash EPROM Backup: Ensures data integrity.

3. It supports complex control strategies, including PID and motion control.

4. Distributed I/O Topology: Simplifies control architecture.

Applications

The Allen-Bradley 1747-L543 Processor Unit is ideal for a variety of industrial applications such as:

l Process Control Systems: Efficiently manage and automate manufacturing processes.

l HVAC Systems: Control heating, ventilation, and air conditioning systems effectively.

l Material Handling Operations: Streamline operations in warehouses and production lines.

l SCADA Systems Integration: Facilitate real-time monitoring and control in distributed systems.

Installation:

To install the Allen-Bradley 1747-L543:

A. Ensure that the system power is off.

B. Insert the processor into slot 0 of the compatible SLC chassis.

C. Connect necessary communication cables as per requirements for network interfaces.

D. Power on the system and verify proper operation through LED indicators.

Related Part Numbers of 1747-L543 Processor Unit:

l 1747-L541

l 1747-L542

l 1747-L552
