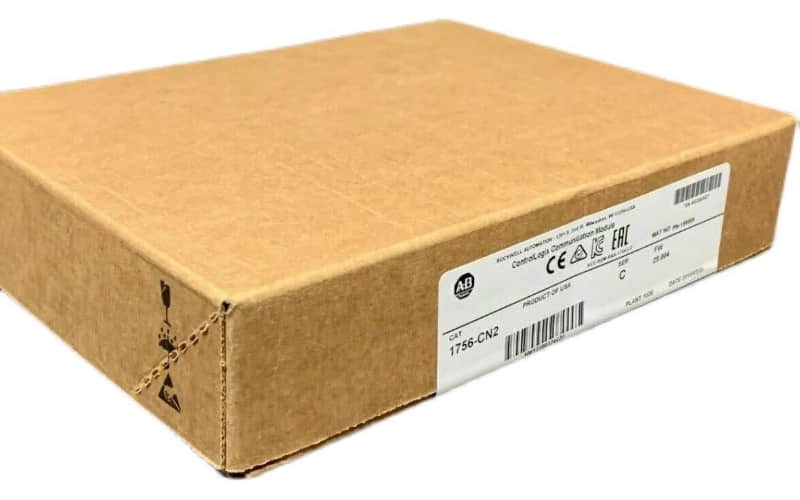

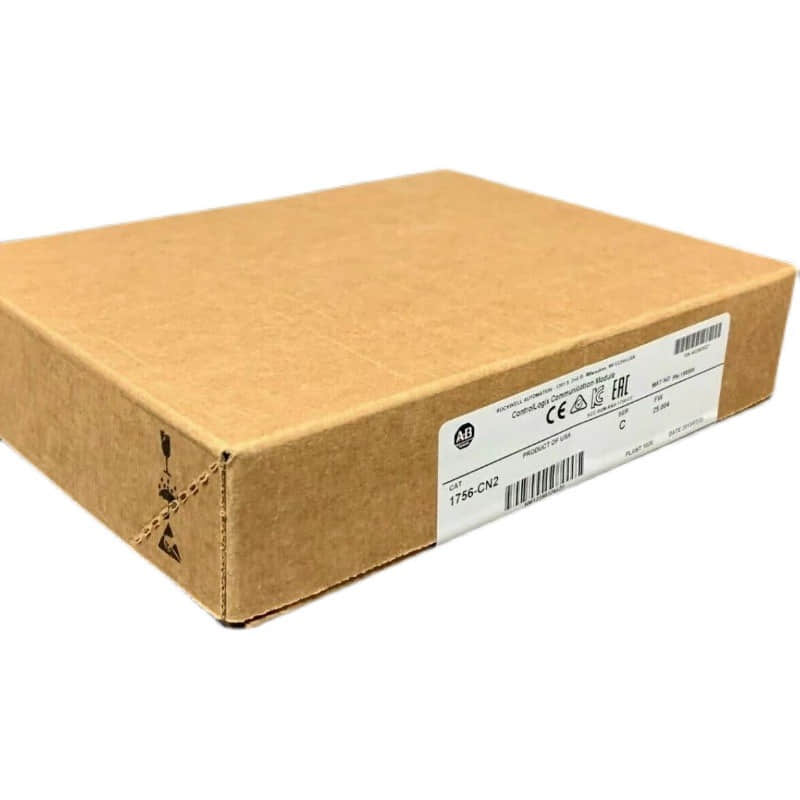

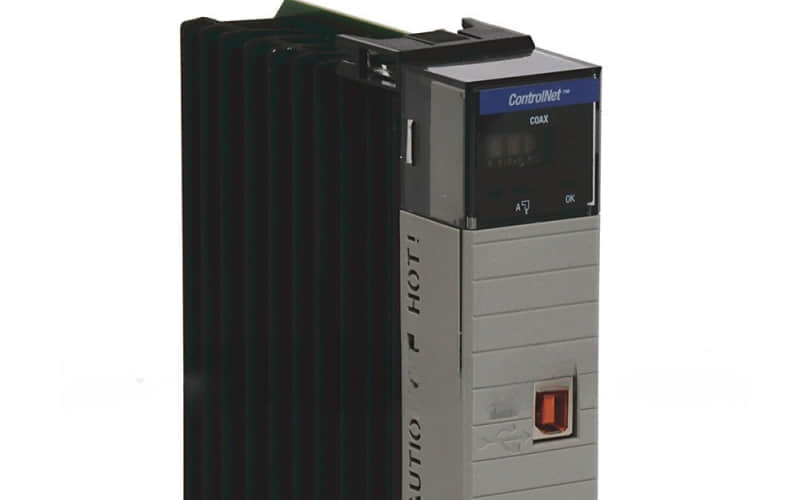

Allen-Bradley 1756-CN2 ControlLogix communication module

Technical Specifications of 1756-CN2

l Manufacturer: Rockwell Automation

l Brand: Allen-Bradley

l Part Number/Catalog Number: 1756-CN2

l Series: ControlLogix

l Module Type: Bridge Module

l Maximum Nodes: 99

l Maximum Connections: 131

l ControlNet Communication Rate: 5 Mbps

l Configuration: Standard

l Input Current:

n 1100 mA at 5.1 V DC

n 3 mA at 24 V DC

l Heat Dissipation: 19.1 BTU per hour

l Power Consumption: 5.6 W

l Slot Width: 1 slot

l Weight: 0.57 lbs (0.26 kg)

l UPC: 10612598324429

l SPSC: 32151705
