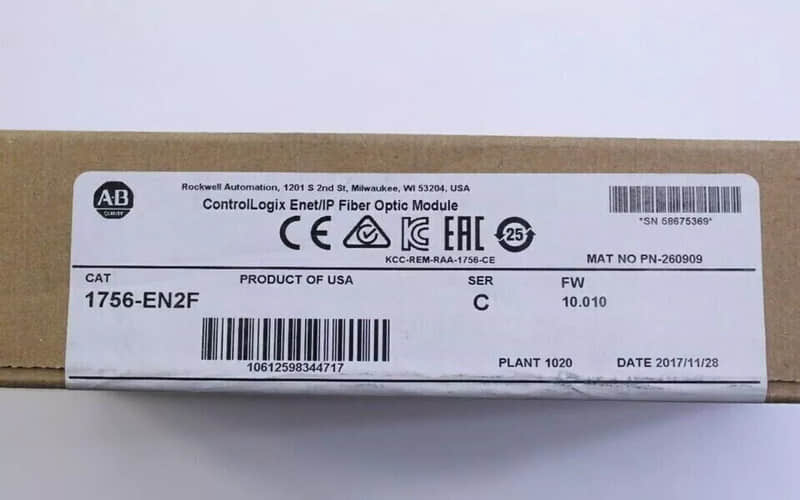

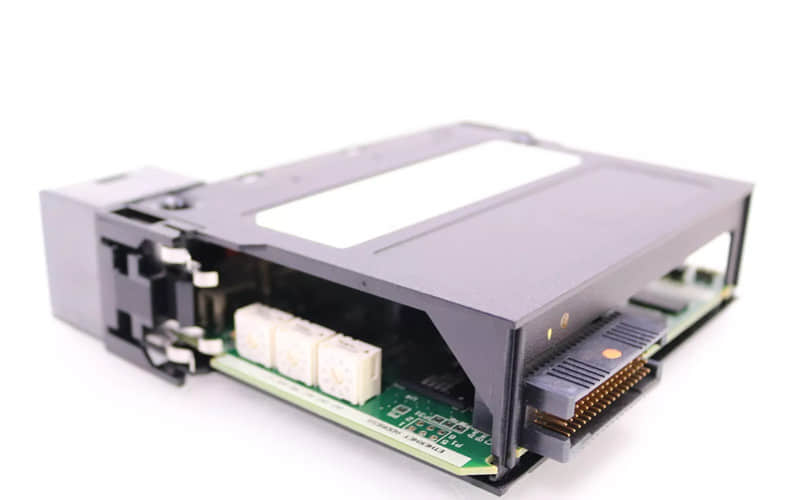

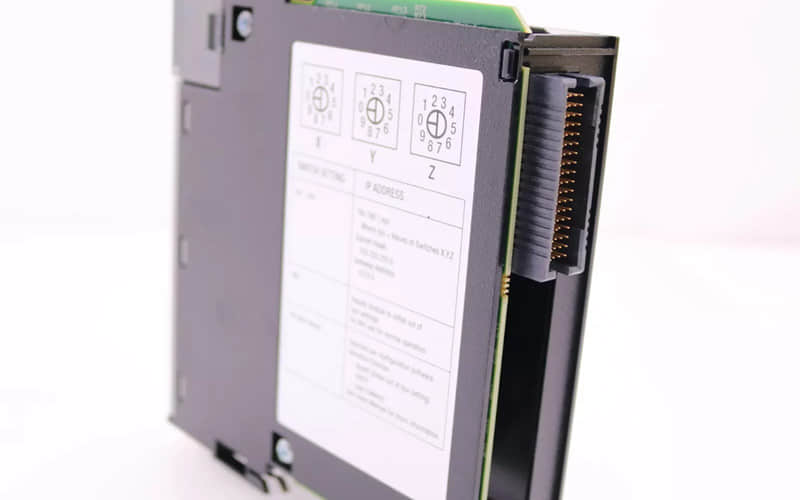

Allen-Bradley 1756-EN2F Communications Bridge

General Description

The Allen-Bradley 1756-EN2F Communications Bridge is a state-of-the-art EtherNet/IP communication module designed for use within ControlLogix systems. This module facilitates efficient data exchange between controllers, devices, and networks, ensuring reliable communication in industrial automation applications. With its advanced features and robust construction, the 1756-EN2F is ideal for demanding environments.

Technical Specifications

l Part Number: 1756-EN2F

l Type: EtherNet/IP Communication Module

l Communication Rate: 10/100 Mbps

l Maximum Connections Supported:

l TCP/IP: Up to 128 connections

l CIP: Up to 256 connections

l Isolation Voltage: 30V (continuous), basic insulation type

l Operating Temperature Range: 0 to 60 °C (32 to 140 °F)

l Power Dissipation: 6.2 W

l Thermal Dissipation: 21.28 BTU/hr

l Module Location: Chassis-based, any slot

Detailed Features of 1756-EN2F

1. High Connection Capacity: The module supports many TCP/IP and CIP connections, allowing extensive network integration.

2. Fast Communication Rates: Operates at speeds of up to 100 Mbps, ensuring timely data transmission across the network.

3. Rugged Design: It is suitable for various applications and is built to withstand harsh industrial environments.

4. Easy Integration: Compatible with ControlLogix systems, simplifying installation and configuration processes.

Applications of 1756-EN2F

The Allen-Bradley 1756-EN2F Communications Bridge is utilized in a variety of industrial applications, including:

l Industrial Networking: Facilitates communication between multiple devices and controllers in complex automation systems.

l Data Collection Systems: Collects and transmits real-time data from sensors and devices for monitoring and analysis.

l Remote Monitoring Solutions: Enables remote access to equipment and processes for improved management and control.

l Process Automation: Integrates seamlessly with various protocols and devices, ensuring efficient control of manufacturing processes.

Installation of 1756-EN2F

To install the Allen-Bradley 1756-EN2F module:

A. Ensure the ControlLogix chassis is appropriately mounted and powered.

B. Align the module with the top and bottom guides in the chassis.

C. Slide the module into the chassis until it connects securely with the backplane.

D. Connect Ethernet cables to the module's ports as per your network requirements.

Related Part Numbers

Compatible Modules: 1756-EN2T, 1756-ENBT, 1756-EN4TR
