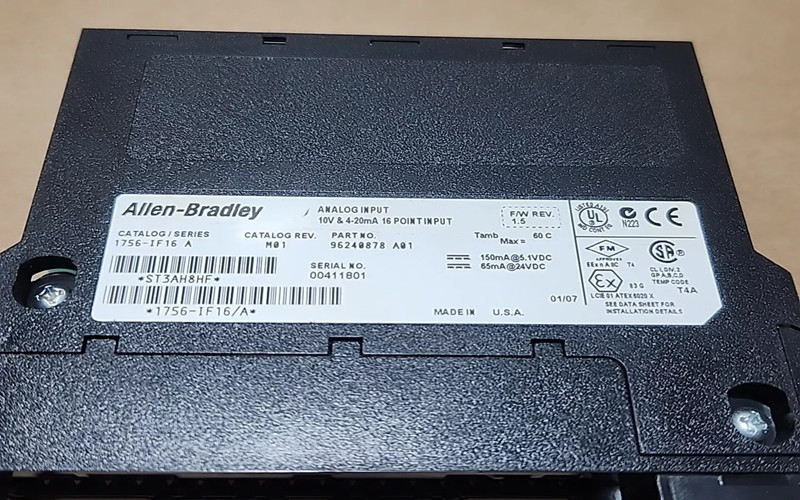

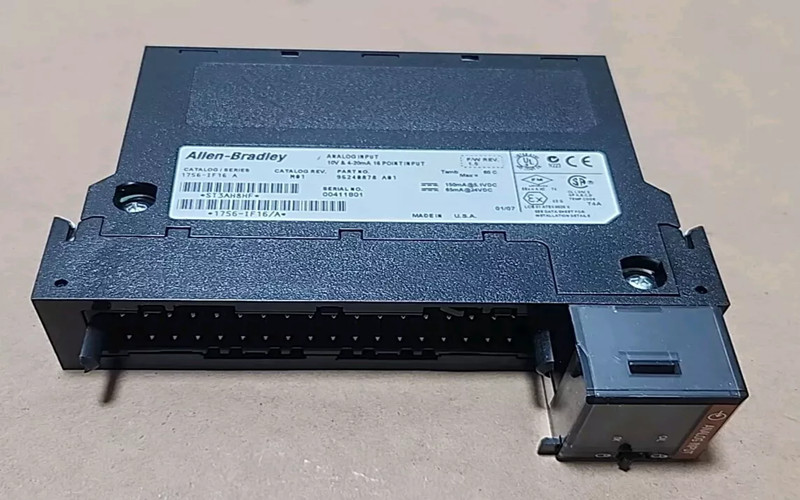

Allen-Bradley 1756-IF16 Analog Input Module

The Allen-Bradley 1756-IF16 is a sophisticated analogue input module designed for Rockwell Automation's ControlLogix system. It is engineered to convert analogue signals into digital values, making monitoring and controlling processes in industrial environments essential.

General Description

The 1756-IF16 module features a flexible design that accommodates 16 single-ended inputs or a combination of differential inputs. It is ideal for applications requiring precise measurement of voltage and current signals, ensuring accurate data processing for control systems.

Technical Specifications of 1756-IF16 Analog Input Module

l Model Number: 1756-IF16

l Input Channels: 16 single-ended, 8 differential, or 4 high-speed differential

l Input Voltage Range: ±10.25V, 0 to 5.125V, and 0 to 10.25V

l Input Current Range: 0 to 20.5 mA

l Resolution:

l ±10.25V: 320 µV/count (15 bits + sign)

l 0 to 10.25V: 160 µV/count (16 bits)

l 0 to 5.125V: 80 µV/count (16 bits)

l Current input: 0.32 µA/count (16 bits)

l Power Consumption:

1. Total Backplane Power: 2.33 W

2. Backplane Current (5V DC): 150 mA

3. Backplane Current (24V DC): 65 mA

l Scan Time:

n Single-ended: 16 to 488 ms

n Differential: 8 to 244 ms

n High-speed differential: 5 to 122 ms

Detailed Features

l Delta-Sigma Modulation: Provides high-speed and high-resolution signal conversion.

l Removable Terminal Blocks (RTB): Facilitates easy wiring and maintenance; compatible with RTB models like the 1756-TBCH and the 1756-TBS6H.

l Integrated Diagnostics: Offers real-time monitoring capabilities for enhanced reliability.

l Hot-Swap Functionality: Enables module replacement without interrupting system operation.

Applications of 1756-IF16 Analog Input Module

The Allen-Bradley 1756-IF16 is suitable for various industrial applications, including:

A. Process Control Systems: Ideal for monitoring manufacturing processes' temperature, pressure, and flow rates.

B. Machine Control Systems: Used in automation setups that require precise machinery control based on analogue input signals.

C. Data Acquisition Systems: Captures real-time sensor data for analysis and reporting.

D. Motion Control Applications: Integrates with motion controllers to provide feedback on position and speed.

Installation Details

l Preparation:

Ensure compatibility with the ControlLogix chassis and gather necessary tools.

l Mounting the Module:

Slide the module into an available slot in the ControlLogix chassis until it clicks into place.

l Wiring Connections:

Use the appropriate removable terminal block (RTB) to connect field wiring according to application requirements.

Follow the wiring diagrams provided in the installation manual for proper connections.

l Grounding Connections:

Connect all input grounds if using single-ended wiring.

For differential wiring, ensure each input has its ground reference.

l Finalizing Installation:

Secure all connections and verify that the RTB is properly seated.

Power up the system and run diagnostics to confirm the correct operation.

Related Part Numbers of 1756-IF16 Analog Input Module

l 1756-TBCH: Removable Terminal Block compatible with the module.

l 1756-TBS6H: Alternative removable terminal block option.

l 1756-TBE: Extended depth housing for applications requiring heavy gauge wires.
