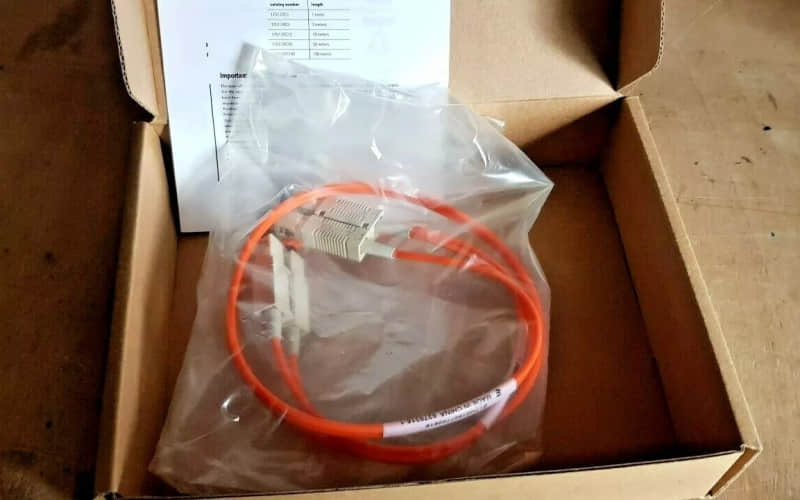

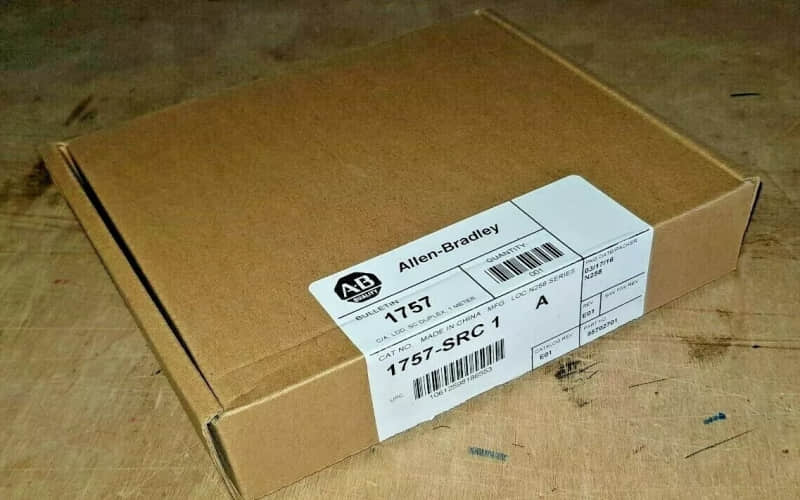

Allen-Bradley 1757-SRC1 Redundancy Module Cable

General Description

The Allen-Bradley 1757-SRC1 Redundancy Module Cable is specifically engineered for use in ControlLogix redundancy systems. By connecting the 1757-SRM (Redundancy Module) units, this cable enables effective communication and synchronization between redundant controllers. This functionality is crucial for applications requiring high availability and minimal downtime, making it an indispensable part of modern industrial automation setups.

Technical Specifications of Allen-Bradley 1757-SRC1

l Cable Length: 1 meter (3.28 feet)

l Connector Type: ST-type fiber-optic connectors

l Compatibility: Designed for use with 1757-SRM modules

l Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)

l Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)

l Cable Type: Fiber optic

Detailed Features of Allen-Bradley 1757-SRC1

A. Fiber Optic Technology: Utilizes fiber optic cables for high-speed data transmission and improved noise immunity.

B. ST-Type Connectors: Features industry-standard ST-type connectors for reliable connections.

C. Durable Design: Constructed to endure harsh industrial conditions, including temperature extremes and mechanical stress.

D. Signal Integrity Assurance: Designed to maintain signal integrity over longer distances than traditional copper cables.

Applications of Allen-Bradley 1757-SRC1

The Allen-Bradley 1757-SRC1 Redundancy Module Cable is utilized in various industrial applications where system reliability is paramount:

1) Manufacturing Automation: Facilitates communication between redundant PLCs controlling critical manufacturing processes.

2) Process Control Systems: Ensures continuous operation in chemical plants or oil refineries where downtime can be costly.

3) Building Automation Systems: Connects redundancy modules that manage HVAC, lighting, and security systems.

4) Data Acquisition Systems: Supports redundancy in systems that require continuous data logging and monitoring.

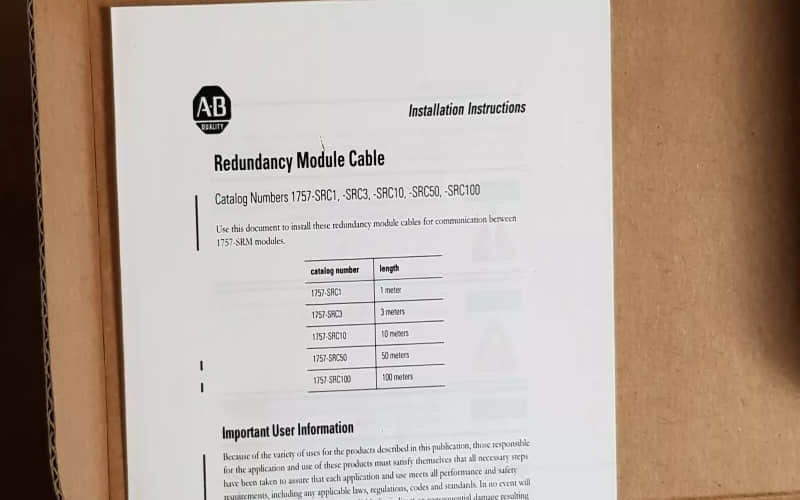

Installation

l Preparation:

Ensure that all power sources are disconnected before installation to avoid electrical hazards.

Gather the necessary tools, including a screwdriver, to secure the cable.

l Mounting the Cable:

Identify the locations of the two 1757-SRM modules that will be connected using the cable.

Ensure the cable routing does not interfere with other equipment or create tripping hazards.

l Connecting the Cable:

Insert one end of the 1757-SRC1 cable into the ST-type connector on the first SRM module.

Securely connect the other end of the cable to the second SRM module, ensuring a snug fit to prevent signal loss.

l Final Checks:

Inspect all connections for secure fittings and verify that there is no visible damage to the cable.

Ensure that any cable management practices are followed to maintain organization and safety.

l Power Up:

Restore power to the system and monitor the communication status between the redundancy modules to confirm proper operation.

Related Part Numbers

The following part numbers are related within the same series:

l 1757-SRM: Redundancy module that works in conjunction with the SRC1 cable.

l 1757-SRC2: A more extended version of the redundancy module cable for more extensive setups.

l 1756-CN2: A standard ControlLogix communication module that can be used alongside redundancy configurations.
