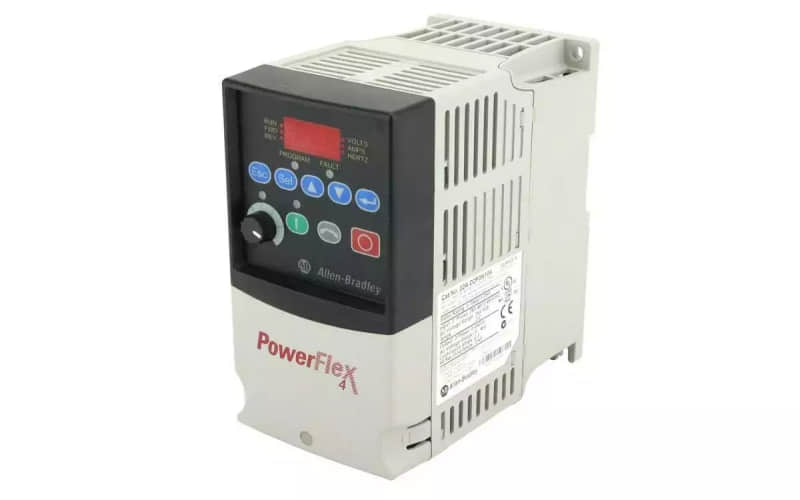

Allen-Bradley 22A-D2P3N104 PowerFlex 4 AC Drive 0.75kW

General Description:

The Allen-Bradley 22A-D2P3N104 is a PowerFlex 4 series AC drive, offering 0.75 kW of power, and is designed for various industrial applications. This drive is known for its high performance and reliability, making it suitable for applications such as elevators, cranes, and other heavy-duty machinery.

Technical Specifications:

l Frequency Rating: 50-60 Hz

l Input Voltage Rating: 480V AC, 3 Phase

l Power Factor: 0.98

l User Interface: Integral Keypad, LED Display

l Output Power: 0.75 kW (1 HP)

l Frame Size: A

l IP Rating: IP20 (Open)

l Dimensions: Height 19.368 cm, Width 13.494 cm, Length 23.495 cm

l Weight: 1.333 KG

Detailed Features of 22A-D2P3N104 PowerFlex:

1. The 22A-D2P3N104 features a compact design with an integral keypad and LED display for easy setup and operation.

2. It supports panel mounting and has an IP20 rating, protecting solid objects and limited ingress protection.

3. The drive has advanced control algorithms, including sensorless vector control, allowing precise motor control even in variable load conditions.

4. It includes an integrated RS-485 communication port for integration with other industrial systems and devices.

Applications of 22A-D2P3N104 PowerFlex:

The 22A-D2P3N104 is used in various industrial applications requiring variable speed control and energy efficiency. It is particularly suitable for applications such as conveyor systems, pumping systems, and machine tools where precise control and high torque are needed.

Installation of 22A-D2P3N104 PowerFlex :

Installation of the 22A-D2P3N104 involves mounting the drive in an appropriate location and connecting the input power, motor connections, and control inputs according to the manufacturer's guidelines. Proper grounding and cable management are essential for safe operation.

Related Part Numbers of the Same Series:

l 22A-D2P3N110

l 22A-D2P3N160

l 22A-D2P3N200

l 22A-D8P7N104

l 22F-D4P2N103

l 22B-D4P0N104

l 22B-D010N104
