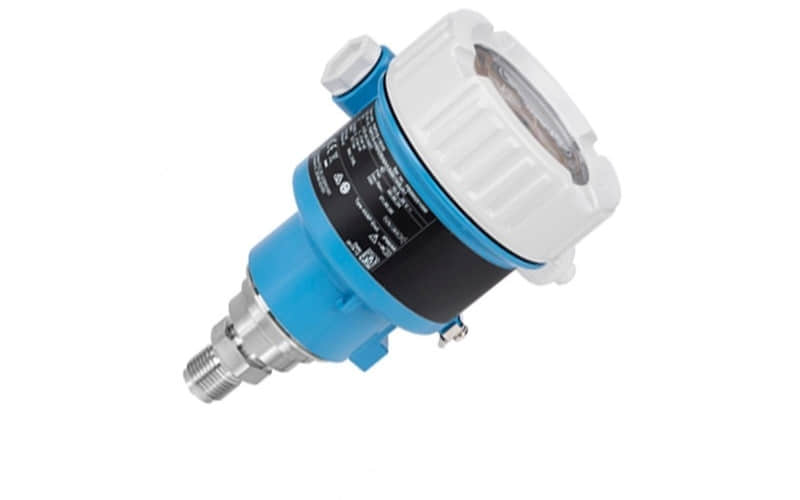

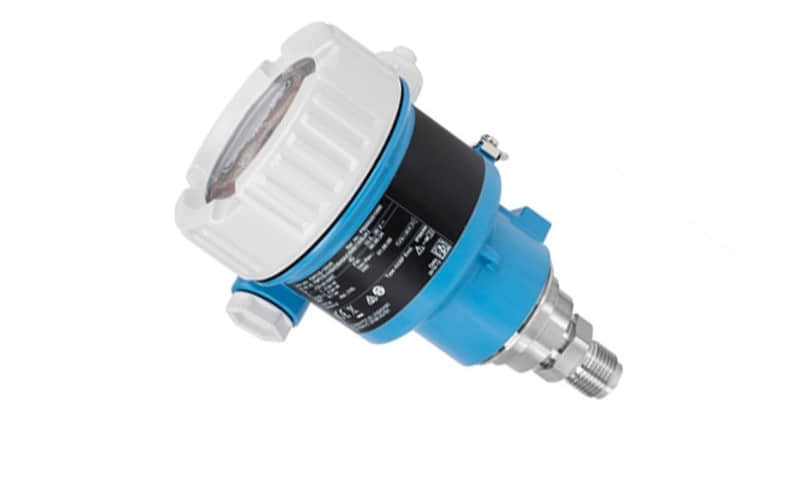

Endress+Hauser Cerabar PMP51B (PMP5B) Pressure Transmitter | Specs & Datasheet

The Endress+Hauser Cerabar PMP51B (frequently referenced in procurement lists as Cerabar PMP5B) is a digital smart pressure transmitter engineered with a welded metallic measuring membrane. Designed for demanding process industries, it delivers high-precision gauge and absolute pressure measurement across liquids, gases, and steam—even at extreme temperatures up to 400°C (752°F) when paired with a diaphragm seal.

Built as the next-generation successor to the legacy Cerabar PMP51, the PMP51B integrates Bluetooth® wireless commissioning (via the SmartBlue App), Heartbeat Technology for predictive diagnostics, and SIL2/SIL3 functional safety compliance.

  1. Technical Specifications: Cerabar PMP51B

   Unlike ceramic-sensor transmitters (such as the PMC51B), the Cerabar PMP51B utilizes a piezoresistive metallic diaphragm capable of handling high overpressure spikes and high-temperature media.

  • Measurement Principle: Gauge and Absolute Pressure (Hydrostatic level calculation in open/closed tanks)

  • Reference Accuracy: Standard up to ±0.075% of calibrated span | Platinum Version up to ±0.055%

  • Measuring Range: 400 mbar to 400 bar (6 psi to 6,000 psi) | Max overpressure limit up to 700 bar (10,500 psi)

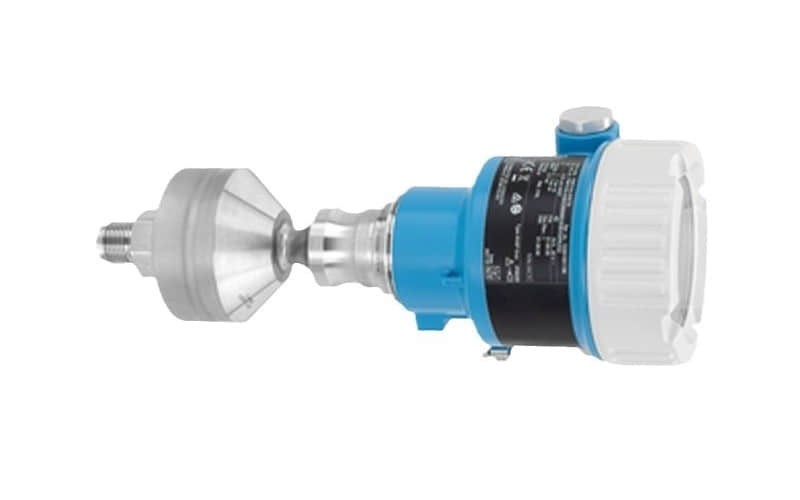

  • Process Temperature: Standard -40°C to +125°C (-40°F to +257°F) | With Diaphragm Seal: -40°C to +400°C (-40°F to +752°F)

  • Ambient Temperature: -40°C to +85°C (-40°F to +185°F) (LCD display readable down to -20°C / -4°F)

  • Wetted Parts / Membrane: 316L Stainless Steel, Alloy C276 (Hastelloy), Tantalum, Monel, PTFE-coated

  • Communication Protocols: 4–20 mA HART, PROFINET with Ethernet-APL (10BASE-T1L), Bluetooth®

  • Approvals & Safety: ATEX, IECEx, CSA C/US, NEPSI, SIL2 / SIL3 (IEC 61508), NACE MR0175/MR0103, EN10204-3.1

  1. Key Engineering Advantages in Process Automation

  • Zero-Error SIL Commissioning & Proof Testing: Guided wizard sequences via the local display or SmartBlue mobile app eliminate manual parameter mistakes and cut SIL proof-testing time by up to 50%.

  • Non-Intrusive Bluetooth® Maintenance: Technicians can inspect diagnostic logs, verify loop health, and adjust calibration ranges from up to 15 meters away—eliminating scaffolding or hazardous-area permit delays.

  • Corrosion & Extreme Heat Resistance: By selecting Alloy C276 or Tantalum membranes with high-temperature fill fluids, the PMP51B withstands aggressive chlorides, acids, and superheated steam without signal drift.

  • Long-Term Stability: Engineered for ≤ 0.1% of URL per year drift (≤ 0.25% over 10 years), significantly extending recalibration intervals in continuous chemical and power plants.

Primary Industrial Applications

  • Chemical & Petrochemical Processing: Reactor vessel pressure monitoring, distillation column overhead pressure, and corrosive acid transfer lines (using Tantalum or Alloy C wetted parts).

  • Power Generation & Steam Systems: High-pressure steam header monitoring and boiler feedwater loops utilizing temperature isolators or capillary diaphragm seals.

  • Oil & Gas (Upstream & Refining): Wellhead pressure monitoring and sour gas service compliant with NACE MR0175 standards.

  • Hygienic & Food/Beverage Utilities: Clean steam, CIP/SIP utility lines, and pressurized tank head-pressure monitoring (Note: For flush-mounted sanitary connections in viscous food/pharma media, see the sister model Cerabar PMP55B).

  1. How to Choose: PMP51B vs. Related Endress+Hauser Models

   Selecting the wrong sensing element or pressure type leads to premature sensor failure. Use the matrix below to verify whether the Cerabar PMP51B matches your loop requirements:

  • Need a metallic diaphragm for high pressure (up to 400 bar) or high heat (up to 400°C)? -> Choose Cerabar PMP51B.

  • Need flush-mounted hygienic fittings (Tri-Clamp, Varivent) for viscous food or pharma media? -> Choose Cerabar PMP55 / PMP55B.

  • Need an oil-free ceramic sensor for abrasive slurries or strong vacuum resistance? -> Choose Cerabar PMC51B.

  • Need ultra-high accuracy (±0.025%) or pressures up to 700 bar? -> Upgrade to Cerabar PMP71B.

  • Need Differential Pressure (DP) across filters, orifices, or closed pressurized tanks? -> Switch to the Deltabar PMD55B / PMD75B series (Cerabar transmitters measure gauge/absolute pressure only).

4. Frequently Asked Questions (FAQ)

  • Is the Endress+Hauser Cerabar PMP5B the same as the PMP51B?

    Yes. "Cerabar PMP5B" is a common typographical shorthand used in third-party catalogs for the Endress+Hauser Cerabar PMP51B. Always verify the full 15-to-25 character order code on the nameplate (starting with PMP51B-...) before ordering replacement units.

  • Can the Cerabar PMP51B measure differential pressure?

    No. The Cerabar PMP51B is a single-port gauge and absolute pressure transmitter. While two transmitters can be paired electronically for differential calculation in a PLC, true differential pressure applications require an Endress+Hauser Deltabar transmitter.

  • How do I verify the exact configuration of an existing PMP51B?

    Locate the serial number or order code printed on the aluminum/stainless housing tag, or scan the built-in RFID tag / connect via the Endress+Hauser SmartBlue App to export the exact spare-part configuration.
