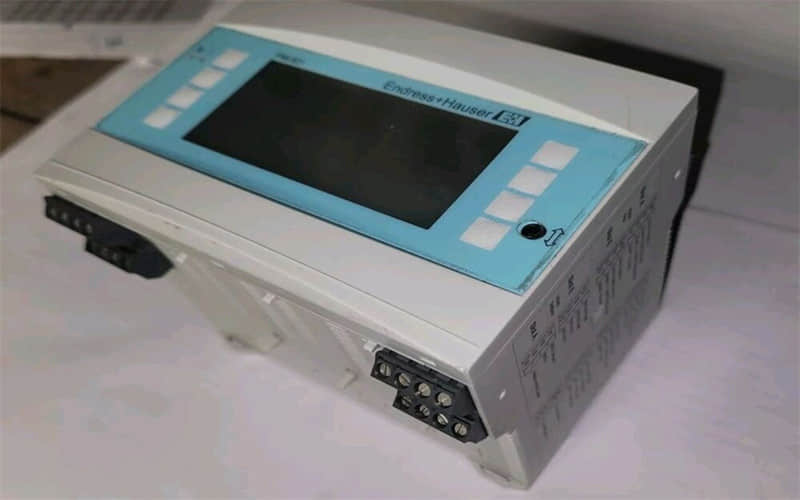

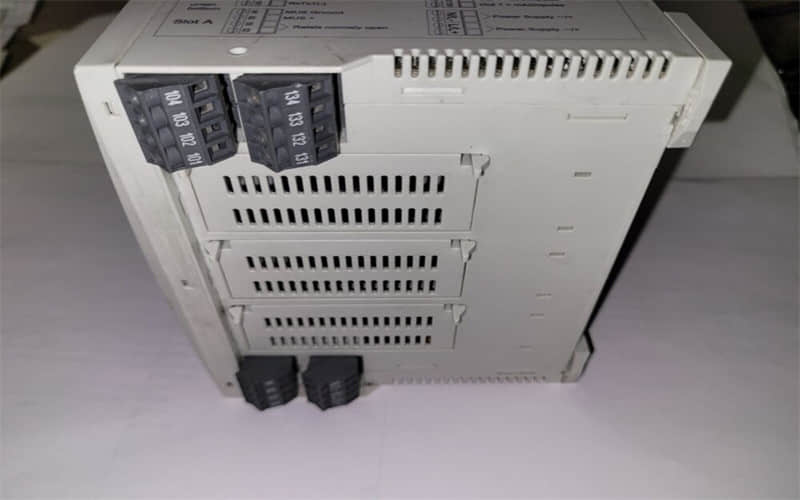

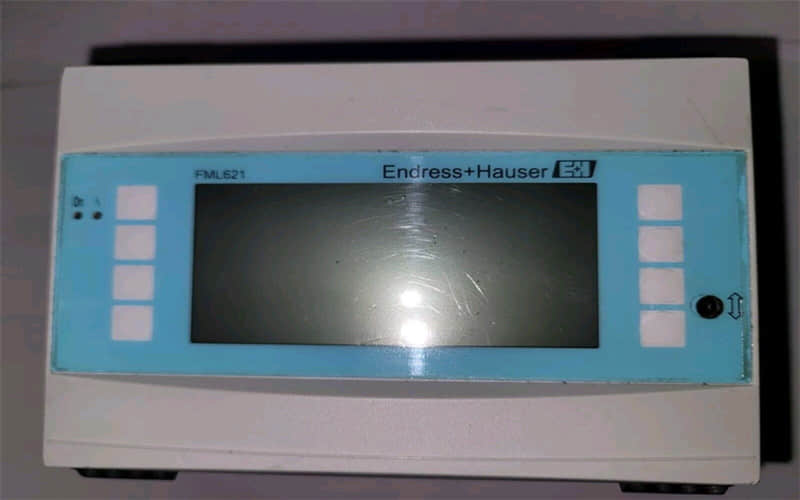

Endress Hauser FML621 Vibronic Density Calculator

General Description:

The Endress Hauser FML621 Vibronic Density Calculator is a sophisticated device designed for measuring the density, reference density, and concentration of liquids. It operates directly within tanks or pipelines without requiring additional installation preparations. This device integrates seamlessly with the Liquiphant limit switch to deliver accurate and reliable measurements across various applications.

FML621 Product Specifications and Parameters

l Measuring Principle: Vibration Density

l Power Supply: AC 90-253V, DC 20-36V

l Ambient Temperature Range: -20°C to 50°C

l Output Signals:

n 4-20 mA

n Profibus DP

n Ethernet

l Inputs: Up to 4 pulse inputs for 0 to 20 mA or 4 to 20 mA

l Outputs:

n 1 relay SPST

n Up to 2 outputs of either 0 to 20 mA or 4 to 20 mA

l Certifications: ATEX, EAC

FML621 Application Fields

The FML621 is widely used in:

l Chemical processing

l Food and beverage industry

l Oil and gas applications

l Water treatment facilities

Device Properties

1. Integration Capabilities: Can connect with existing temperature sensors for temperature compensation.

2. Mathematical Functions: Supports advanced calculations for density, concentration, and intelligent medium differentiation.

3. User-Friendly Interface: Equipped with configuration software (ReadWin2000) for easy setup and monitoring.

FML621 Benefits

Direct measurement in tanks and pipelines eliminates the need for additional piping.

Flexible process connections make it suitable for a wide range of applications.

Enhanced safety features allow operation in hazardous environments.

Similar Models

l Endress Hauser FML622 Vibronic Density Calculator

l Endress Hauser FML623 Vibronic Density Computer
