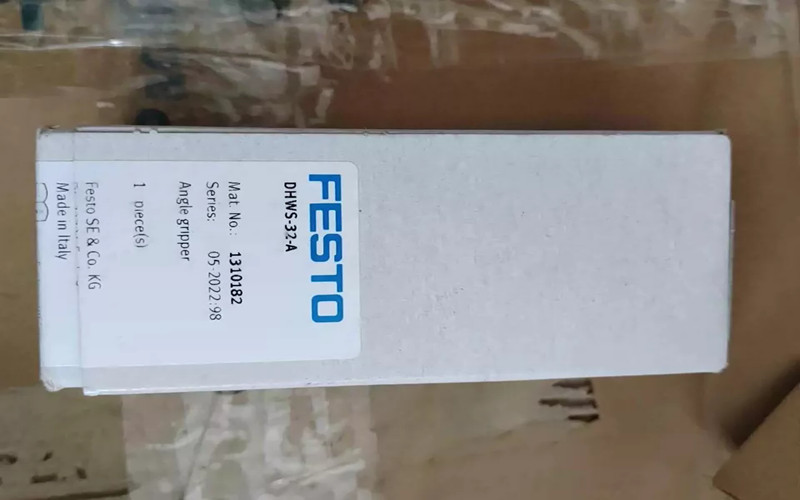

Festo DHWS-32-A 1310182 Cylinder
General Description
The Festo DHWS-32-A (1310182) is an advanced angled gripper cylinder designed for precise handling and automation tasks. With its compact size and robust construction, this pneumatic gripper is ideal for applications requiring accurate positioning and reliable performance in various industrial environments.
Festo DHWS-32-A Technical Specifications
l Specification Details
l Size 32 mm
l Max Opening Angle 40 degrees
l Max Interchangeability ≤0.2 mm
l Rotational Symmetry ≤0.2 mm
l Repetition Accuracy ≤0.04 mm
l Actuation Type Pneumatic
l Thread Size G1/8" BSPP
l Weight Approximately 0.5 kg
Features
1. Compact Design: Space-saving structure allows for easy integration into tight spaces.
2. High Precision: Offers exceptional repeatability, ensuring consistent performance.
3. Built-in Magnet: Facilitates easy position detection and feedback.
4. Durable Construction: Designed to withstand demanding industrial environments.
Festo DHWS-32-A Applications
The Festo DHWS-32-A cylinder is suitable for:
l Automation systems
l Material Handling
l Assembly lines
l Robotics and machine tools
Installation Procedure (Step by Step)
1. Preparation:
Gather necessary tools: wrenches, screwdrivers, and pneumatic connections.
Ensure the workspace is clean and organized.
2. Mounting the Gripper:
Identify the installation location based on application needs.
Secure the gripper using appropriate screws or mounting brackets.
3. Connecting Pneumatic Lines:
Connect the pneumatic supply to the G1/8" threaded port on the gripper.
Ensure all connections are tight to prevent air leaks.
4. Electrical Connections (if applicable):
Connect any sensors or feedback devices to their designated terminals.
Follow wiring diagrams to ensure correct connections.
5. Testing Functionality:
Activate the pneumatic supply and check for leaks.
Test the gripper's operation to confirm it opens and closes smoothly.
Final Inspection:
Review all connections and ensure everything is adequately secured.
Conduct a final test run to verify optimal performance.
Festo DHWS-32-A Related Part Numbers
l DHWS-20-A
l DHWS-40-A
l DHWS-32-B
