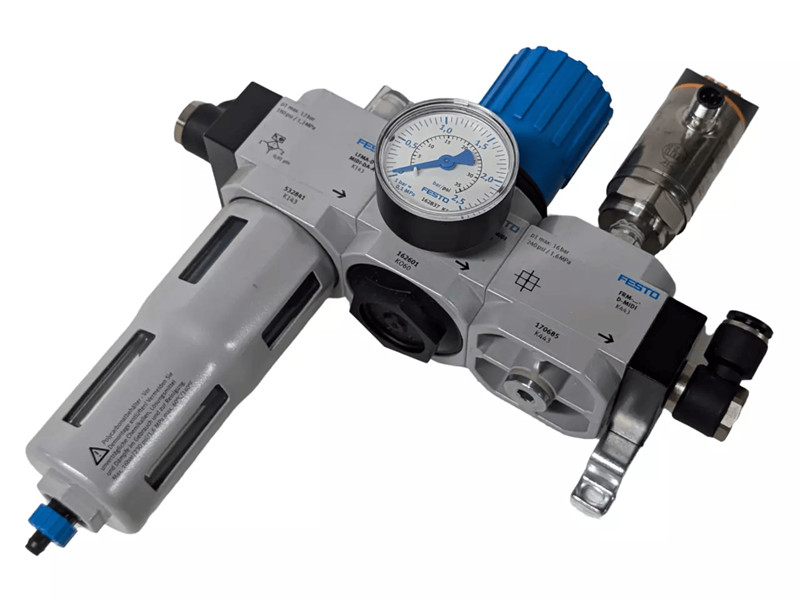

Festo LFMA-D-MIDI-DA-A Pneumatic Regulator Valve Assembly

General Description:

The Festo LFMA-D-MIDI-DA-A is a high-quality pneumatic regulator valve assembly designed to control air pressure precisely in various industrial applications. Its durable construction and easy installation process make it a reliable choice for maintaining optimal performance in pneumatic systems.

Technical Specifications:

l Series: D

l Size: Midi

l Design: Fibre filter

l Grade of filtration: 0.01 µm

l Condensate drain: Fully automatic

l Operating pressure: 1 - 16 bar

l Temperature range: -10°C to +60°C

l Flow rate: Up to 2780 l/min

l Material: Die-cast zinc/aluminum housing, PC bowl, aluminum metal bowl guard

l Weight: Approximately 5.06 lb (2.3 kg)

LFMA-D-MIDI-DA-A Features:

1. High filtration efficiency with a 0.01 µm filter grade

2. Fully automatic condensate drain for hassle-free operation

3. Visual differential pressure display for easy monitoring of filter contamination

4. Robust construction suitable for industrial environments

5. Conforms to ISO 1179-1 and ISO 228-1 standards

Applications:

l Pneumatic systems in manufacturing plants

l Automation equipment

l Industrial machinery

l Any application requiring precise air pressure control

LFMA-D-MIDI-DA-A Installation Procedure:

1. Ensure the pneumatic system is depressurized and disconnected from the power supply.

2. Please select the appropriate mounting position, ensuring it is vertical ±5°.

3. Attach the LFMA-D-MIDI-DA-A assembly to the system using the provided connectors.

4. Connect the input and output ports to the pneumatic lines.

5. Turn on the power supply and gradually increase the pressure to the desired level.

6. Monitor the differential pressure display to ensure proper filter function.

7. Perform a leak test to confirm the installation is secure and airtight.

Related Part Numbers:

l LFMA-D-MIDI-A (Part number: 192567)

l LFMA-1/2-D-MIDI (Part number: 162646)

l LFMA-3/8-D-MIDI-A (Part number: 162653)
