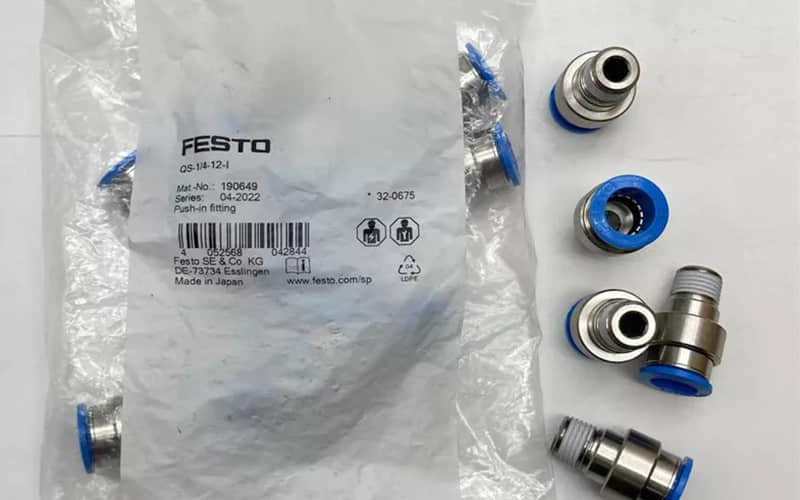

Festo QS-1/4-12-I 190649 Threaded Fast Connector
General Description
The Festo QS-1/4-12-I connector is part of the QS series, known for its innovative push-in fitting system that simplifies installations. It is ideal for pneumatic applications, ensuring a secure and reliable connection while accommodating a range of operating pressures and temperatures.
Festo QS-1/4-12-I 190649 Technical Specifications
l Brand Festo
l Connector A R 1/4 Male
l Connector B Push In 12 mm
l Pneumatic Fitting Type Straight Threaded Adaptor
l Maximum Operating Pressure 14 bar
l Minimum Operating Temperature -10°C
l Maximum Operating Temperature +80°C
l Body Material Brass
l Finish Nickel Plated
l Mounting Type Inline
l Country of Origin: Japan
Festo QS-1/4-12-I 190649 Features
1. Effortless Installation: Quick push-in design allows for easy and fast connections.
2. Durable Construction: Made from robust nickel-plated brass, ensuring high corrosion resistance.
3. Versatile Applications: Suitable for various pneumatic applications with many tubing sizes.
4. Temperature Resilience: Operates efficiently within a temperature range of -10°C to +80°C.
Applications
The Festo QS-1/4-12-I connector is widely used in:
A. Compressed air systems
B. Water supply lines
C. Industrial automation setups
D. Pneumatic machinery
Installation Procedure
l Preparation: Ensure that the tubing is cut straight and deburred.
l Insertion: Push the tubing into the connector until it reaches the stop.
l Check Connection: Pull on the tubing to confirm it is securely connected.
l Release Tubing (if needed): Press down on the release ring to detach the tubing when necessary.
