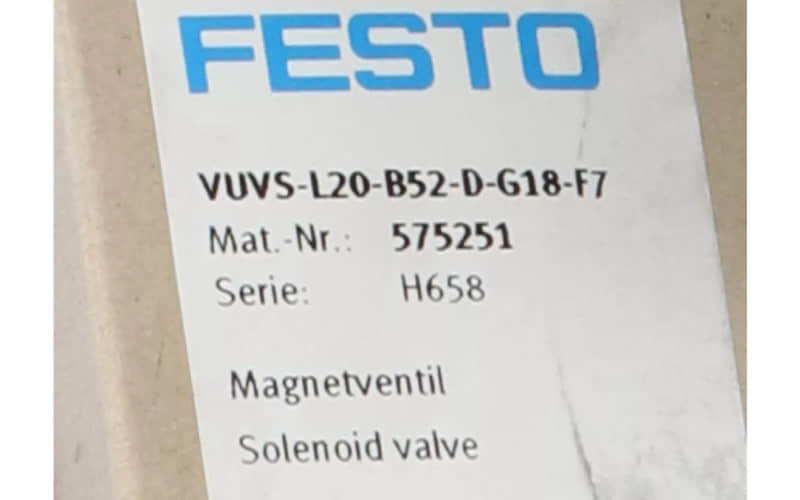

Festo VUVS-L20-B52-D-G18-F7 solenoid valve

General Description

The Festo VUVS-L20-B52-D-G18-F7 solenoid valve is engineered for high-performance pneumatic applications. It utilizes a 5/2 bistable valve function, effectively controlling air flow in machinery and automation systems. The valve is compliant with RoHS standards, ensuring it meets environmental regulations.

Technical Specifications

- Valve Function: 5/2 bistable

- Type of Actuation: Electric

- Valve Size: 21 mm

- Standard Nominal Flow Rate: 700 l/min

- Operating Pressure: 1.5 to 10 bar (0.15 to 1 MPa)

- Operating Voltage: 24V DC

- Degree of Protection: IP65

- Weight: 259 g

- Temperature Range: -10 °C to 60 °C

- Pneumatic Connection Ports: G1/8

Festo VUVS-L20-B52-D-G18-F7 Features

- Pilot Actuated Control: Internal pilot air supply enhances responsiveness.

- Manual Override Option: Allows for manual operation during maintenance or emergencies.

- Vibration and Shock Resistance: Designed to withstand rigorous operational environments.

- Corrosion Resistance Class (CRC): Moderate corrosion stress rating for durability.

Festo VUVS-L20-B52-D-G18-F7 Applications

The Festo VUVS-L20-B52-D-G18-F7 solenoid valve is widely used in:

- Automation technology

- Machine building

- Robotics

- Pneumatic control systems

Installation Procedure (Step by Step)

1. Preparation:

   - Ensure all components are available and the workspace is clean.

   - Verify that the power supply is turned off.

2. Mounting:

   - Choose an appropriate mounting position (on a manifold rail or through-hole).

   - Secure the valve using suitable screws or fasteners

3. Pneumatic Connections:

   - Connect the pneumatic lines to the G1/8 ports per your system design.

   - Ensure all connections are tight to prevent leaks.

4. Electrical Connections:

   - Connect the electrical supply to the designated terminals using the wiring diagram.

   - Ensure correct voltage and polarity are observed.

5. Testing:

   - Turn on the power supply and test the valve's operation.

   - Check for leaks in pneumatic connections and ensure proper functioning.

6. Final Checks:

   - Confirm that all connections are secure.

   - Document installation details for future reference.
