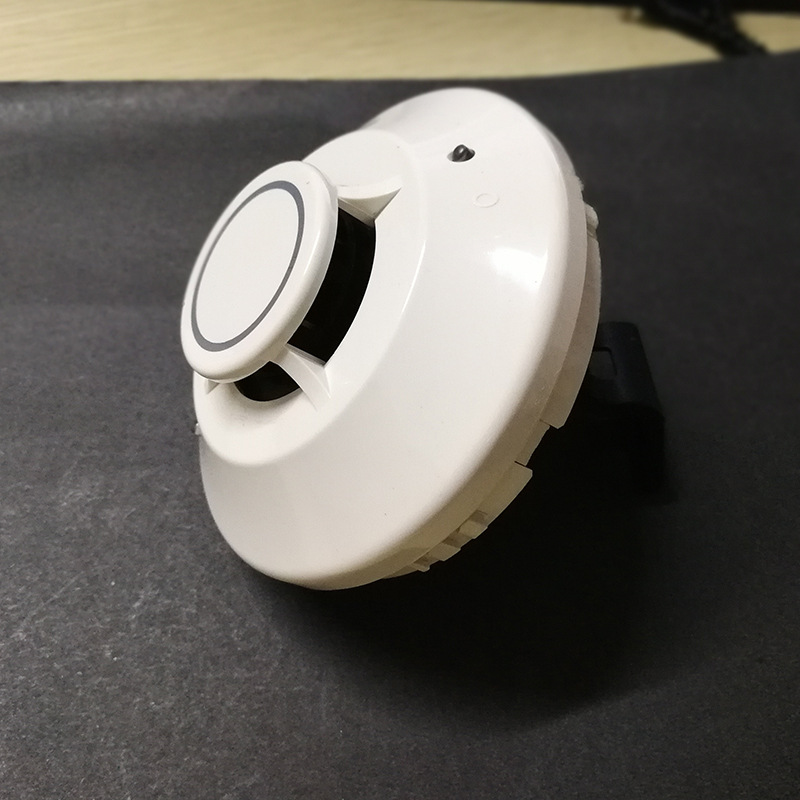

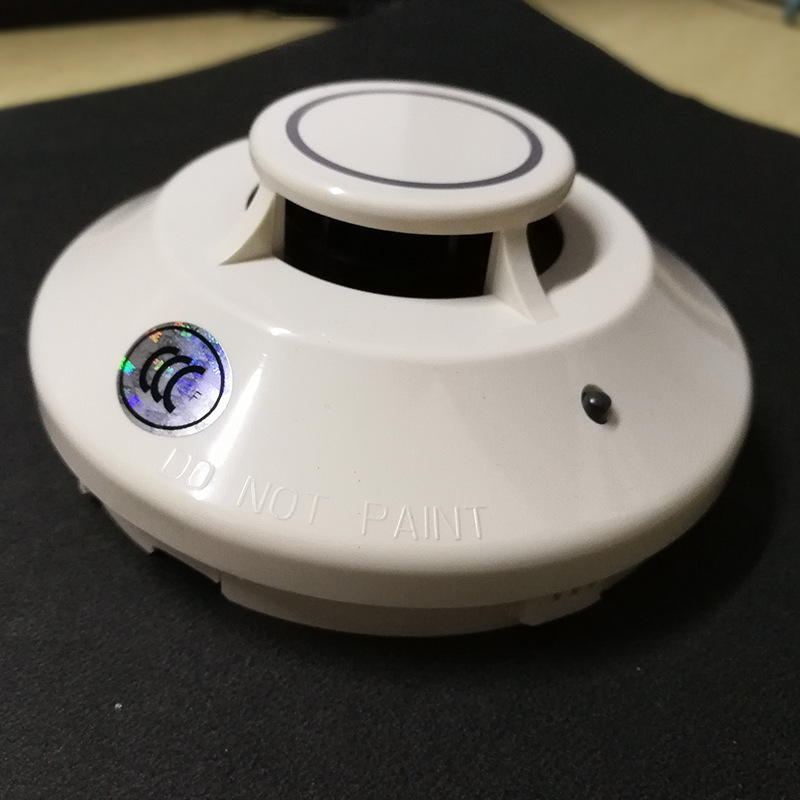

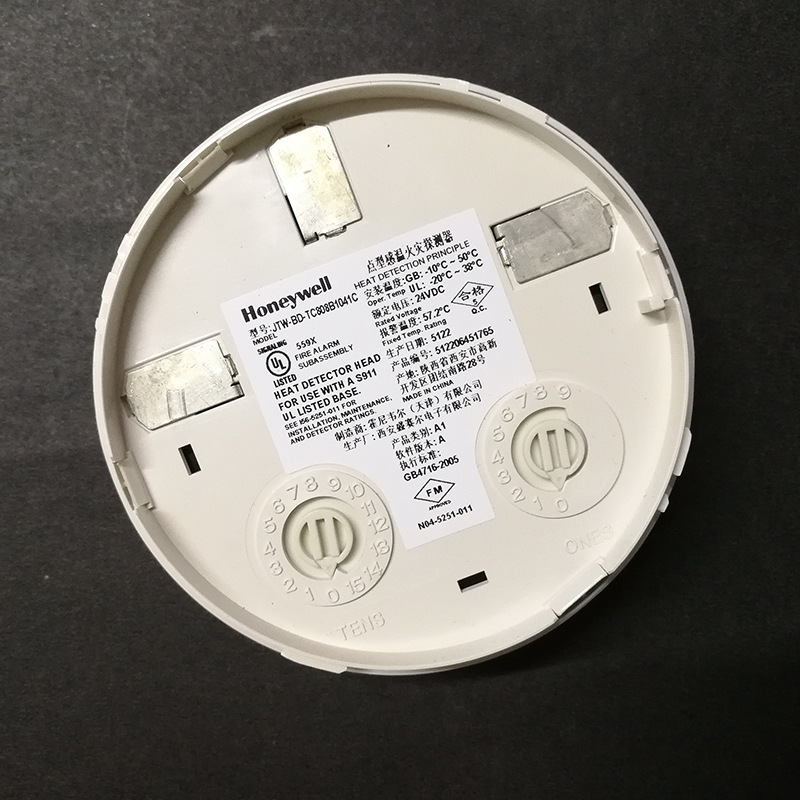

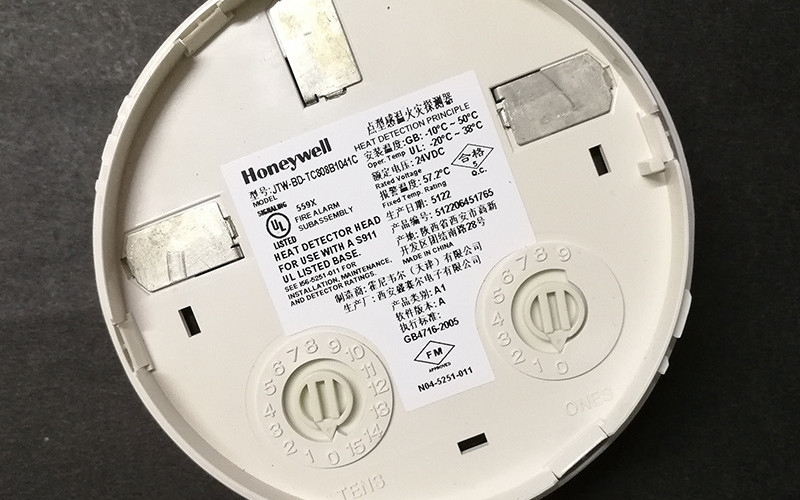

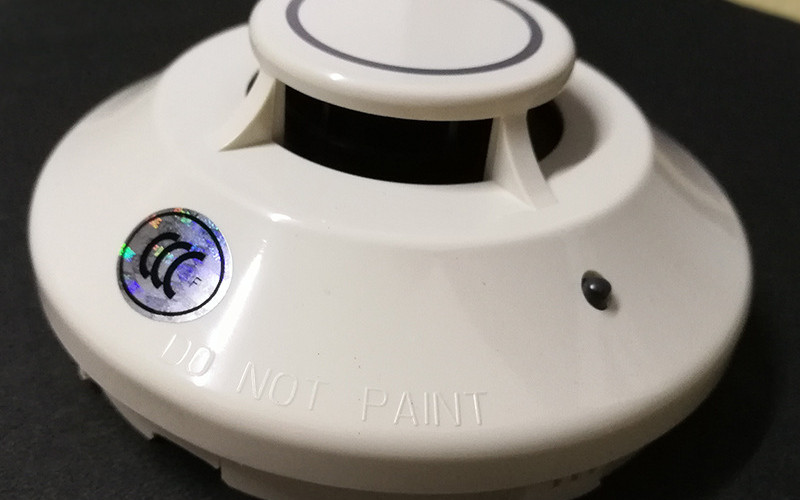

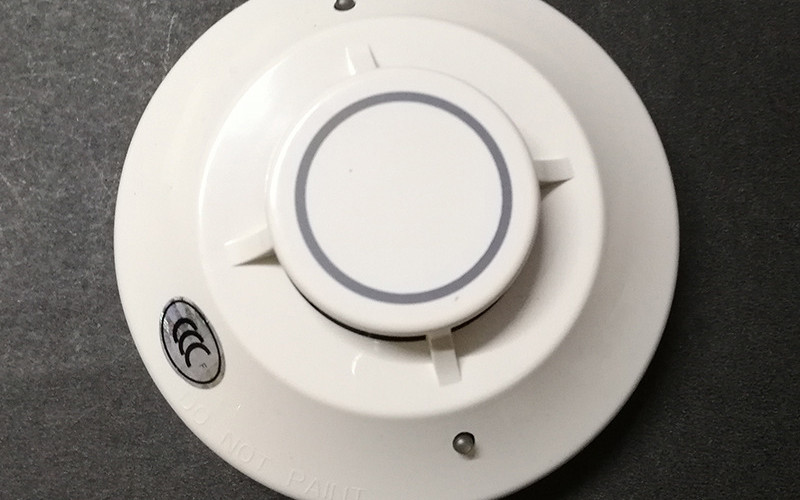

Honeywell JTW-BD-TC808B1041CThermal Detectors

General Description

The Honeywell JTW-BD-TC808B1041C is a part of the TC808 Series Thermal Detectors, engineered to provide early fire detection through a sophisticated single thermistor sensing circuit. The TC808 Series Thermal Detectors are essential components in modern fire safety systems. They are designed to respond swiftly to temperature changes, making them suitable for critical early detection environments. These detectors must be connected to compatible proprietary analog addressable communication protocols for optimal performance.

Technical Specifications

l Model: JTW-BD-TC808B1041C

l Type: Thermal Detector

l Sensing Technology: Single thermistor

l LED Indicators: 2 LEDs for 360° visibility

l Compatibility: Works with specific Honeywell fire alarm control panels

l Installation Type: Surface-mounted

Detailed Features

l Thermistor Technology: Utilizes advanced thermistor sensing for rapid temperature change detection.

l LED Notification: Two LEDs indicate the detector's status, which can be latched or unlatched via control panel commands.

l Remote Indicator Capability: An optional remote LED indicator can be connected to standard base terminals.

l Easy Installation: Designed for quick and straightforward installation procedures.

Applications of Honeywell JTW-BD-TC808B1041C

The Honeywell JTW-BD-TC808B1041C thermal detector is suitable for a wide range of applications, including:

A. Commercial Buildings: Ideal for offices, retail spaces, and warehouses where early fire detection is essential.

B. Industrial Settings: Effective in factories and manufacturing facilities where high-risk activities occur.

C. Educational Institutions: Provide safety in schools and universities by ensuring prompt fire alerts.

D. Healthcare Facilities: Critical in hospitals and clinics to protect patients and staff from fire hazards.

Installation of the TC808 thermal detector involves:

1. Selecting an appropriate mounting location that allows for optimal temperature monitoring.

2. Connect CConnectthe detector to a compatible fire alarm control panel using the specified analog addressable communication protocol.

3. Testing the device to ensure proper functionality and visibility of LED indicators.

Related Part Numbers of Honeywell JTW-BD-TC808B1041C

l TC808E1002M01

l TC808ES1028

l TC808EIS1028

l TC808ES1002

l TC808EIS1002
