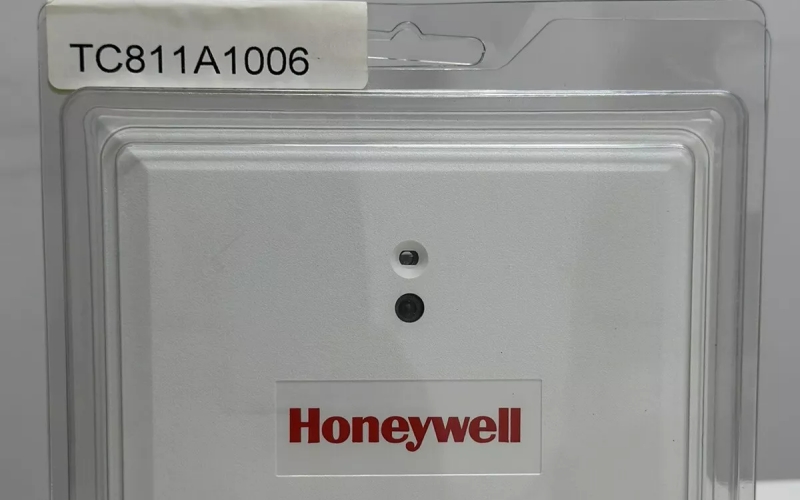

Honeywell TC811A1006 Fault Isolator Module

General Description

The Honeywell TC811A1006 Fault Isolator Module is essential for intelligent fire alarm systems. This module plays a critical role in maintaining system integrity by isolating faults caused by short circuits or device failures. By protecting the system from cascading failures, the TC811A1006 ensures that the remaining devices continue functioning effectively, enhancing overall safety and reliability in commercial and industrial environments.

Technical Specifications of Honeywell TC811A1006

l Operating Voltage: 15 to 32 VDC

l Maximum Current Draw: 10 mA (standby), 20 mA (maximum)

l Temperature Range: -40°F to 120°F (-40°C to 49°C)

l Humidity Range: 10% to 93% (non-condensing)

l Dimensions: 7 in. (178 mm) x 6 in. (152 mm) x 3 in. (76 mm)

l Weight: Approximately 1 lb (454 g)

l Mounting Type: Compatible with SMB500 surface mount backbox

l Device Capacity: Supports up to 25 devices between isolators

Detailed Features of Honeywell TC811A1006

A. Direct Power Supply: The module is powered directly from the Signaling Line Circuit (SLC), eliminating the need for external power sources.

B. Fault Isolation Capability: Automatically detects and isolates faults, preventing system-wide failures and allowing for continued operation of unaffected devices.

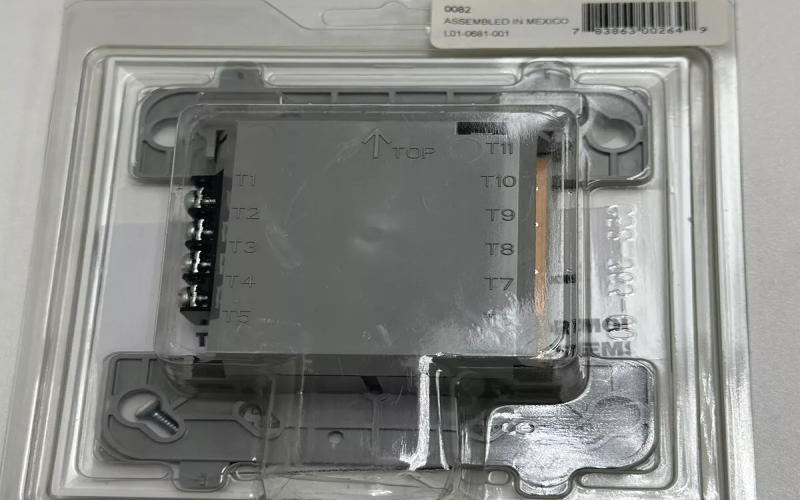

C. SEMS Screws with Clamping Plates: Facilitates ease of wiring and ensures secure connections, making installation straightforward.

D. LED Status Indicators: Equipped with visual indicators that provide real-time feedback on the operational status of the module.

E. Compatibility: Designed for use with Honeywell's CLIP and FlashScan SLCs, ensuring seamless integration into existing fire alarm systems.

Applications

The TC811A1006 Fault Isolator Module is ideal for:

1. Commercial buildings where reliable fire detection is critical

2. Industrial facilities that require robust safety systems

3. Educational institutions needing advanced fire alarm solutions

4. Any environment where maintaining operational integrity during faults is essential

Installation

Installation of the Honeywell TC811A1006 should be performed by qualified technicians following local codes and standards:

l Location Selection:

Identify a suitable location for installation, typically near the fire alarm control panel or at strategic points within the SLC loop.

l Mounting Procedure:

Use appropriate mounting hardware to secure the module onto a flat surface or within an SMB500 backbox.

Ensure that the mounting location allows for easy access for maintenance and testing.

l Wiring Connections:

Addressing (if applicable): If your system configuration requires it, set the address of the isolator module using built-in rotary switches.

l Testing and Commissioning:

After installation, perform a functional test to ensure the isolator module operates correctly and communicates effectively with other devices on the SLC loop.

Verify that LED indicators function as intended during testing.

Related Part Numbers

l TC811A1005 Fault Isolator Module

l TC811A1007 Fault Isolator Module
