Honeywell TC841A1000 Regional Control Module | Original In Stock

General Description

The Honeywell TC841A1000 is a sophisticated Regional Control Module engineered explicitly for use with intelligent addressable fire alarm systems. It serves as an interface between intelligent fire alarm control panels and two-wire conventional smoke detectors. It effectively supervises the initiating device circuit (IDC) and transmits critical information about the detectors' operational status back to the control panel. This module is crucial in maintaining safety standards and quickly identifying and addressing potential issues.

Technical Specifications

l Nominal Operating Voltage: 15 to 32 VDC

l Maximum Current Draw: 5.1 mA (LED on)

l Average Operating Current: 300 μA (1 communication and 1 LED flash every 5 seconds)

l Maximum IDC Wiring Resistance: 25 ohms

l End-of-Line Resistance: 3.9K ohms

l External Supply Voltage: 24 VDC power limited

l Ripple Voltage: 0.1 Vrms maximum

l Maximum Current per Module: 90 mA

l Temperature Range: 32°F to 120°F (0°C to 49°C)

l Humidity Range: 10% to 93% non-condensing

l Dimensions: 4.5" H x 4" W x 2.125" D

Detailed Features

A. Supervision of IDC Wiring: Monitors wiring integrity, ensuring faults are promptly reported.

B. LED Status Indicators: These provide visual feedback on module operation, flashing during regular operation and steady during an alarm condition.

C. Direct Address Selection: This feature utilizes rotary switches for easy configuration within FlashScan loops (addresses from 01 to 159) or CLIP loops (addresses from 01 to 99).

D. High Noise Immunity: Designed to operate effectively in environments with electromagnetic interference (EMI) or radio frequency interference (RFI).

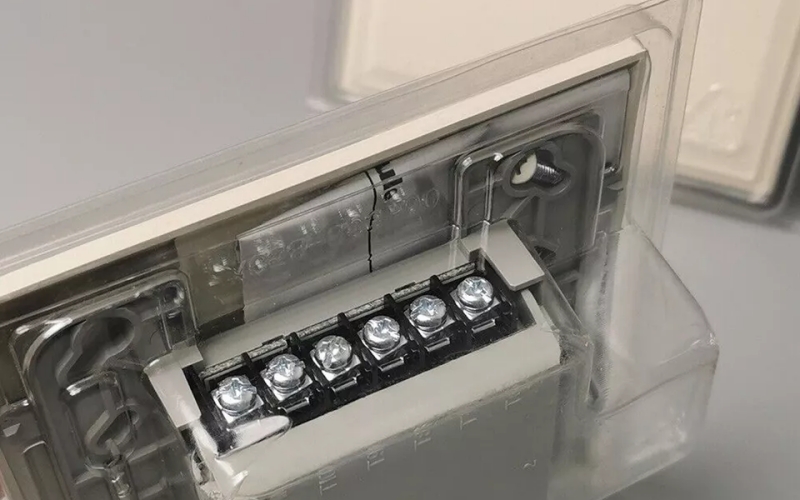

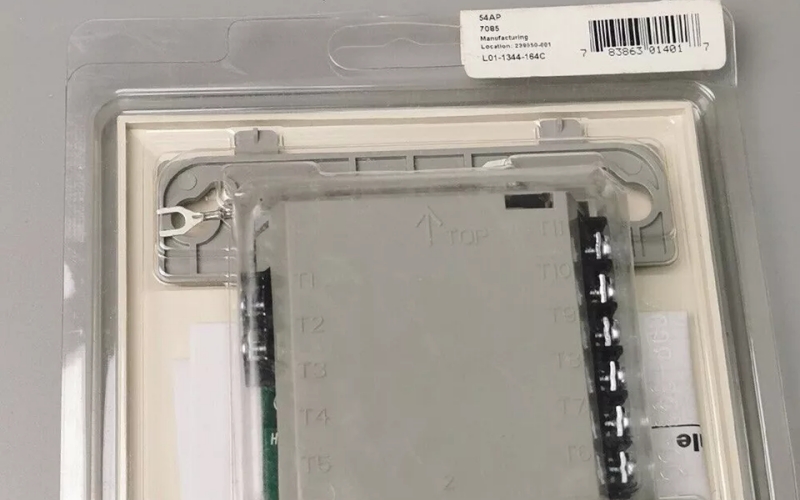

E. SEMS Screws with Clamping Plates: Facilitates easy wiring connections, enhancing installation efficiency.

Applications

The TC841A1000 is suitable for:

1. Monitoring zones of two-wire smoke detectors in commercial buildings.

2. Integration into intelligent fire alarm systems for enhanced safety measures.

3. Use in environments requiring reliable fire detection, such as schools, hospitals, and office complexes.

Installation

l Mounting Requirements:

n The TC841A1000 can be mounted directly onto a standard electrical box or surface-mounted using optional backboxes like the SMB500.

n Ensure that the installation complies with local building codes and regulations.

l Wiring Instructions:

n Connect wiring according to the specifications outlined in the installation manual.

n Use a minimum wire length of 6 inches (15.24 cm) for connections.

n Install a 3.9K ohm end-of-life resistor (EOLR) across terminals as specified for Style B or Style D circuits.

l Address Setting:

n Set the module address using the built-in rotary switches based on system requirements.

n Avoid duplicating addresses within the system to ensure proper functionality.

l Final Checks:

n Verify all connections before powering up the system.

n Check LED indicators to confirm communication with the control panel.

Related Part Numbers

l TC841A1000CDN: Dual two-wire detector monitor module suitable for ULC applications.

l TC809D1004: Monitor module supporting dual independent Class B circuits.

FAQ: Honeywell TC841A1000 Regional Control Module

Q: What is the primary function of the Honeywell TC841A1000 regional control module?

A: The Honeywell TC841A1000 is an intelligent addressable module designed to interface between fire alarm control panels and two-wire conventional smoke detectors, supervising initiating device circuits (IDC) for reliable fire detection.

Q: What communication loops and addressing ranges are supported by the TC841A1000?

A: It features direct rotary switch addressing, supporting FlashScan loops (addresses 01 to 159) and CLIP loops (addresses 01 to 99), with an operating voltage range of 15 to 32 VDC.

Q: Are genuine Honeywell TC841A1000 modules available in stock for immediate global shipping?

A: Yes, we supply 100% original, brand-new Honeywell TC841A1000 and TC841A1000CDN modules. Every unit is backed by a 12-month warranty, complete technical datasheets, and fast global express delivery. Contact our technical team for immediate price quotes.

 Popular Honeywell Fire Alarm Modules in Stock: Honeywell TC841A1000 | Honeywell TC841A1000CDN | Honeywell TC809D1004 | Honeywell TC810N1013 | Honeywell TC809B1008
