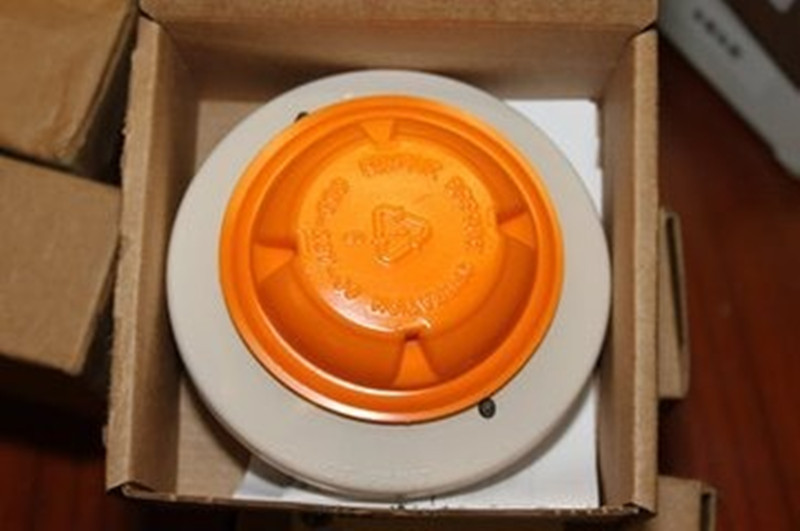

Honeywell TC906A Photoelectric Smoke Detector

General Description

The Honeywell TC906A is a state-of-the-art photoelectric smoke detector that detects reliable fire in residential and commercial settings. With its advanced sensing technology, the TC906A quickly identifies smoke particles, ensuring prompt alerts to potential fire hazards.

Technical Specifications

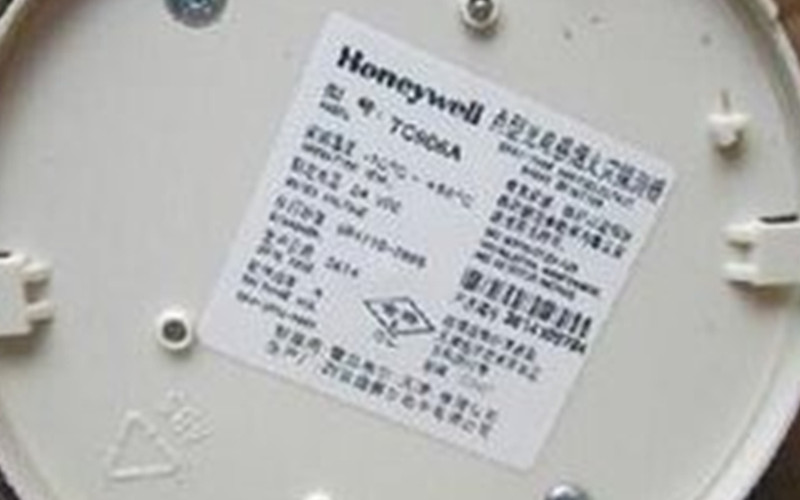

l Model Number: TC906A

l Type: Photoelectric smoke detector

l Operating Voltage: 9V DC

l Current Draw: 20 mA (standby), 50 mA (alarm)

l Sensitivity: 0.07 to 0.12 dB/m

l Alarm Sound Level: 85 dB at 3 meters

l Temperature Range: -10°C to +50°C (14°F to 122°F)

l Dimensions: 5.2 inches (diameter) x 1.5 inches (height)

l Weight: 0.5 lbs

l Protection Class: IP30

Detailed Features of Honeywell TC906A

l Photoelectric Sensing Technology: Detects slow-smoldering fires more effectively than ionization detectors.

l Test Button: Allows users to test the unit's functionality quickly.

l LED Indicator Light: Provides visual confirmation of operational status.

l Low Battery Warning: Alerts users when battery replacement is necessary.

l Easy Mounting Options: These are compatible with various mounting surfaces for installation flexibility.

Applications

The Honeywell TC906A is ideal for a wide range of applications, including:

A. Residential Homes: Provides essential fire safety in living spaces, kitchens, and hallways.

B. Commercial Buildings: Suitable for offices, retail spaces, and public areas where fire safety is crucial.

C. Educational Institutions: Ensures safety in classrooms and common areas.

D. Healthcare Facilities: Protects patients and staff in hospitals and clinics by providing early smoke detection.

Installation of Honeywell TC906A

To install the Honeywell TC906A:

1. Choose a location on the ceiling or high on a wall away from corners.

2. Mounting Bracket Installation: Secure the mounting bracket using the screws provided in the package.

3. Wiring Connections (if applicable): Connect the power supply wires according to the wiring diagram included in the manual.

4. Attach Detector Unit: Align the detector with the bracket and twist it to secure it in place.

5. Testing Functionality: Press the test button to ensure the alarm sounds appropriately.

Related Part Numbers of Honeywell TC906A

l TC905A

l TC907A

l TC908A
