Honeywell Resideo VR8305Q 4153 Furnace Gas Valve
1. General Description

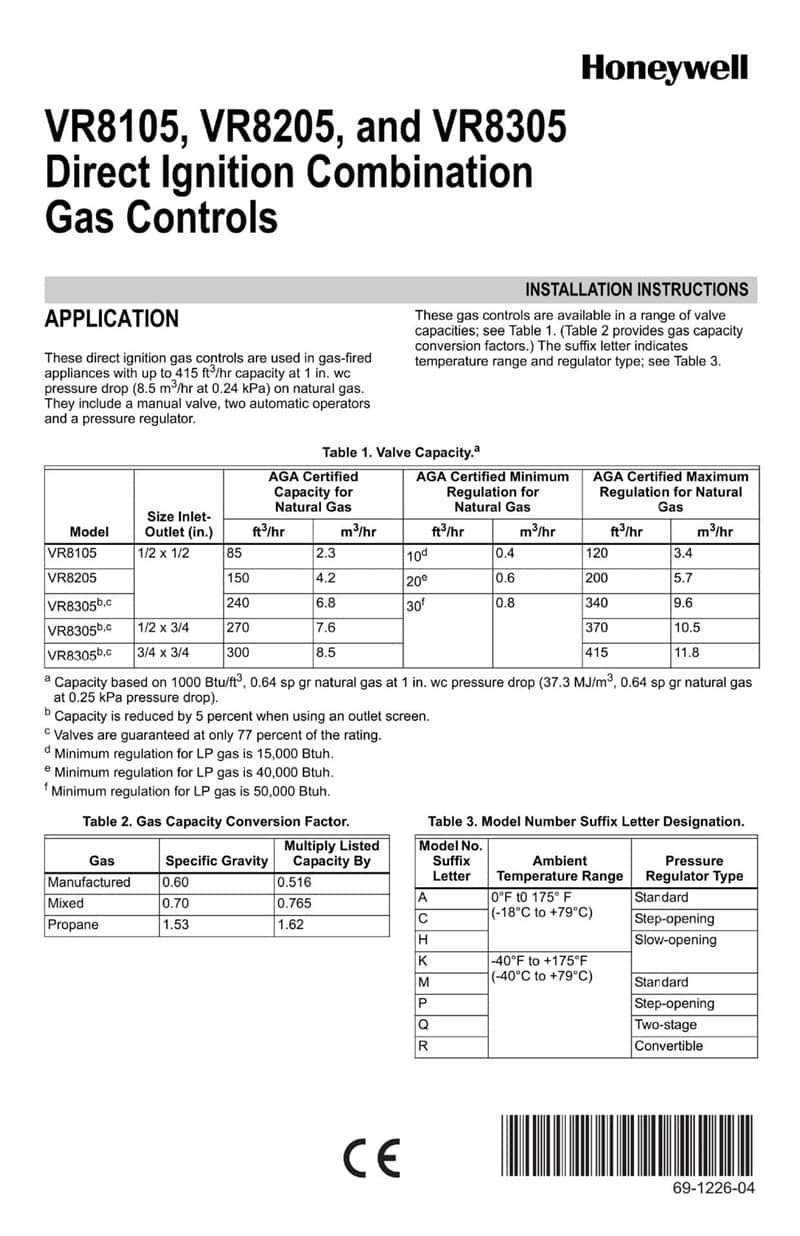

The Honeywell Resideo VR8305Q 4153 (also known as Honeywell VR8305Q4153, VR8305Q4153T, and Honeywell VR8305Q-4153/B) is a gas valve. It has 2 stages and uses dual direct ignition.

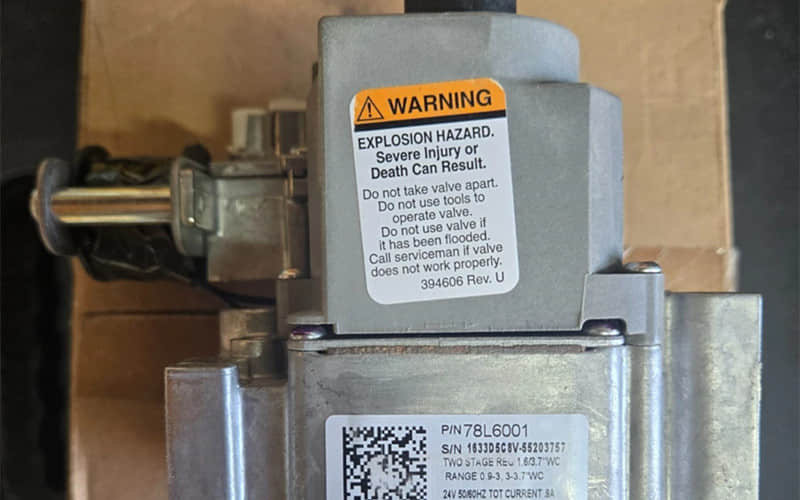

This manufacturer designs this valve for residential hot surface and direct spark systems. People commonly use it in direct ignition systems for gas appliances. This includes the Lennox 78L6001 2-Stage Furnace Gas Valve replacement.
The valve works at 24 VAC. It can handle about 30 to 415 cubic feet per hour (cfh) of natural gas.

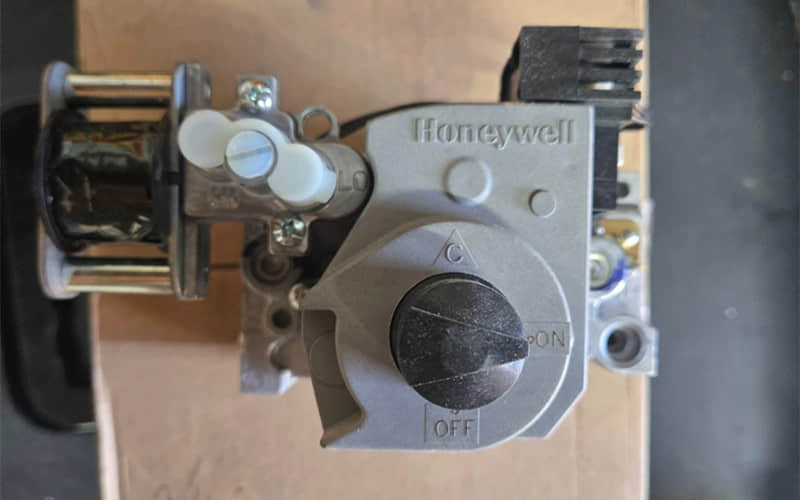

It has a manual valve, two automatic operators, and a pressure regulator. This keeps the outlet pressure steady, even when supply conditions change.

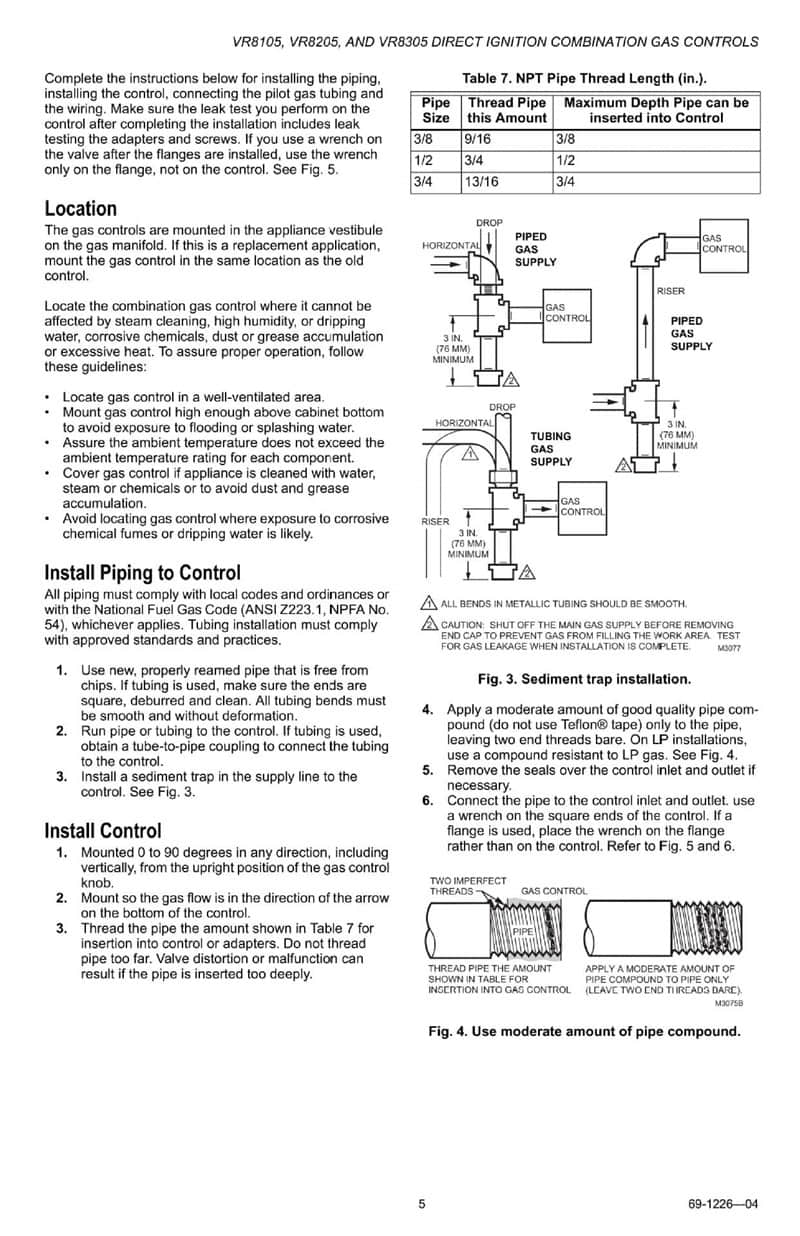

You can mount it at angles from 0° to 90°. It has easy top-access adjustments and wiring. It supports both natural gas and LP gas, with conversion kits available.

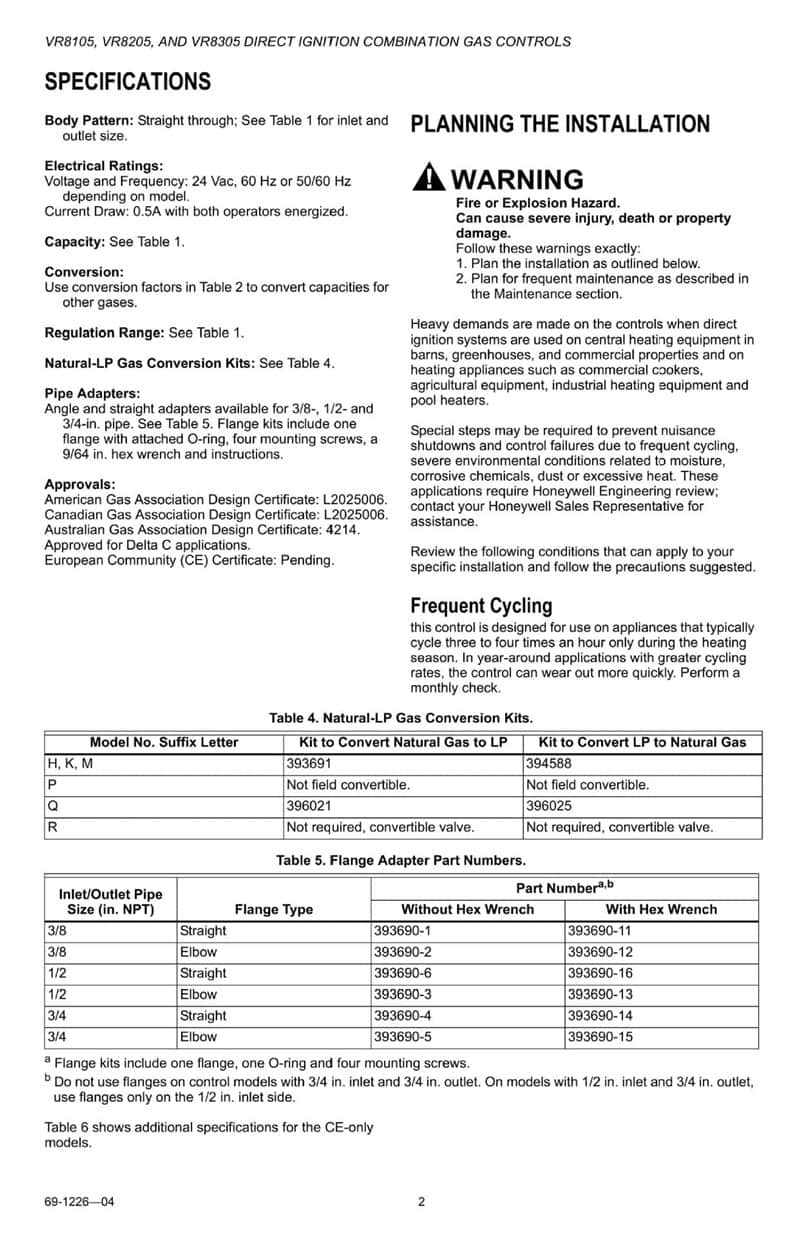

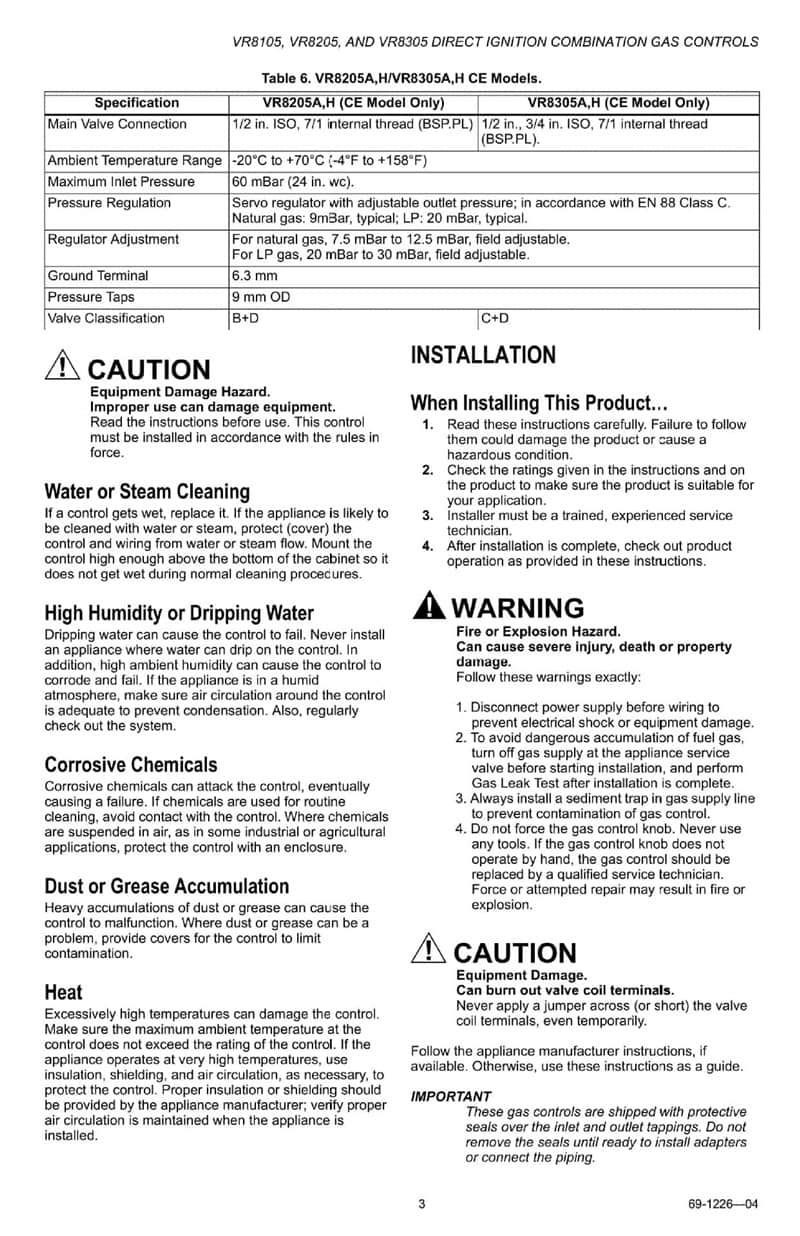

2 .Specifications — VR8305Q 4153 Dual Direct-Ignition Gas Valve
l Type / Application: 2-stage dual direct ignition combination gas control for hot surface / direct spark systems
l Supply Voltage: 24 Vac (50/60 Hz)
l Current Draw: ~0.7 A
l Inlet / Outlet Size: ¾″ × ¾″ NPT (options for ½″ or adapter bushings)
l Body Pattern: Straight-through (right-angle adapters available)
l Capacity / Flow Rates (Natural Gas): 30–415 ft³/hr (0.8–11.8 m³/hr) at ~1 in. w.c. pressure drop
l Pressure Regulation Setpoints: Standard ~3.5 in. w.c.; optional 3–5 in. w.c.
l Operating Temperature Range: –40 °F to +175 °F (–40 °C to +79 °C)
l Mounting Orientation: 0°–90°
l Electrical Connections: ¼″ male quick-connect terminals; additional convenience terminals on top
l Pressure Taps: 1/8″ NPT inlet/outlet taps (plugged)
l Certifications / Approvals: UL Component Recognized (MH8191), CSA (112395)

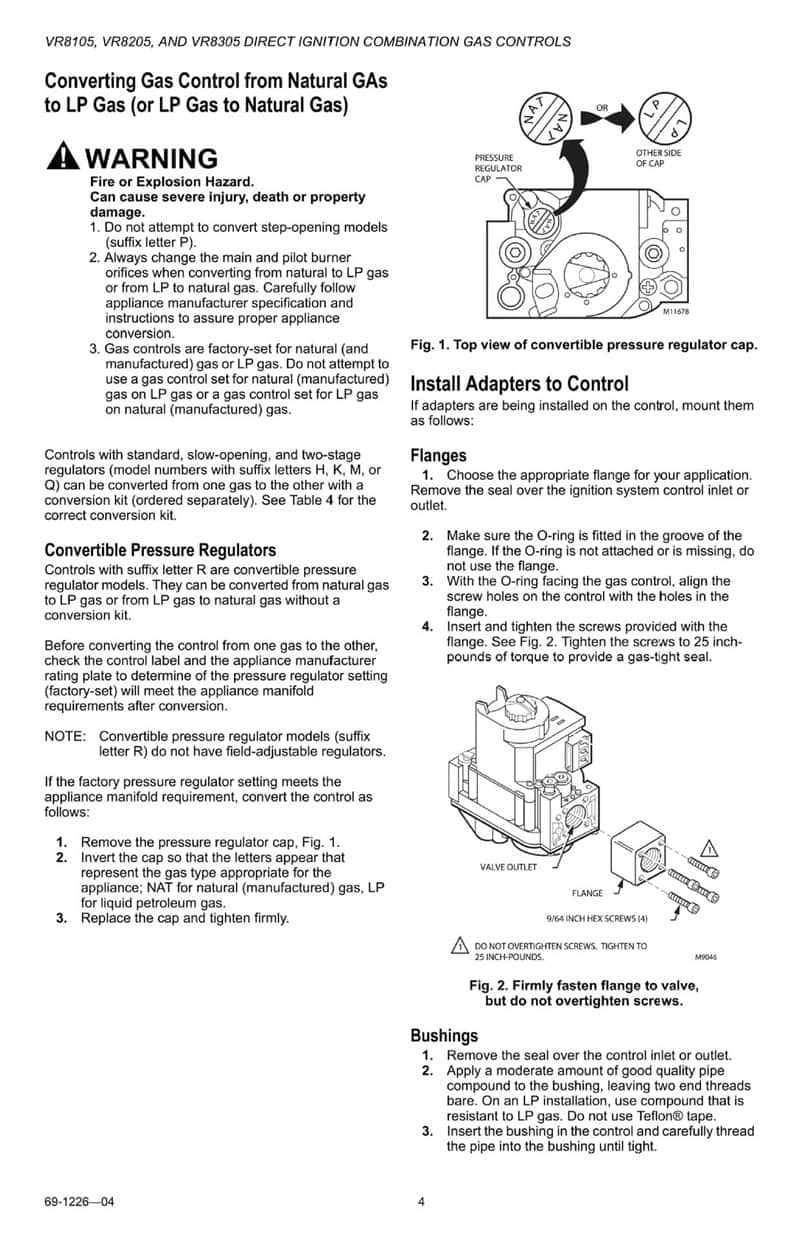

l Conversion Kits: Natural-to-LP and LP-to-Natural kits available
l Dimensions: 5⅜″ H × 5⅟₁₆″ W × 2 11⁄16″ D (135 × 129 × 69 mm)
l Other Features: It has a manual valve, two automatic operators, and a pressure regulator. It also includes a dual safety shutoff and an adjustable servo regulator for steady outlet pressure.
3. Application
l Honeywell designed the VR8305Q 4153 for homes and small businesses. It works with furnaces, boilers, and heating devices. These devices use hot surface ignition (HSI) or direct spark ignition (DSI) systems. It ensures precise gas flow control with dual automatic valves for reliable ignition and stable flame performance.
l This is great for two-stage gas furnaces. It allows smooth changes between low and high fire. This improves comfort and saves energy.
l The VR8305Q4153 works with natural or LP gas. It offers reliable safety shutoff, pressure regulation, and manual control. This makes it a trusted option for HVAC technicians, manufacturers, and service contractors. They look for high performance and reliability in gas heating systems.
