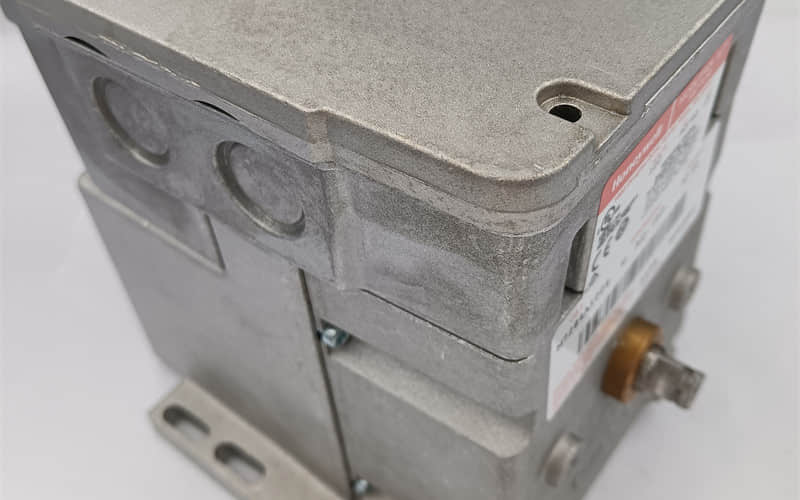

Honeywell M7284A1004 Modutrol Actuator

1.General Description

The Modutrol IV series actuators include more than 20 models, offering reliable product quality. They provide precise positioning control for dampers and valves in industrial furnaces, combustion chambers, and heaters. Key models include M7284A1004, M7284C, and M7284Q motor actuators.

People also know the Honeywell M7284A1004 as the M7284A1004 120V Valve/Damper. People sometimes call it the Honeywell M7284A1004, m7284a1004 honeywell, or Honeywell M7284A-1004 Modutrol Motor.

Other names include m7284a1004 honeywell actuator, Honeywell M7284A1004/U Electric Actuator, modutrol m7284a1004, m7284a1004 u, and m7284a1004 u honeywell. This motor lacks a spring return and controls dampers and valves. It serves precise control tasks. It works as a 120V Non-Spring Return Foot Mounted Actuator and a Modutrol IV Proportional Reversing Actuator.

l Built-in transformer provides 120V, 220V, or 240V power supply.

l Control types include: two-position, two-position floating, and proportional position (mA, V, 135 Ω). Spring-return and non-spring-return options exist. An optional feedback potentiometer is available, along with two auxiliary switches.

l Output drive: dual-shaft or single-shaft.

l Torque: spring-return 2.3/5.7 Nm, non-spring-return 4/8.5/17/34 Nm (150 lb-in ≈ 17 Nm for the M7284A1004).

l Stroke: 90°, 160°, adjustable 90°–160°.

l Ambient temperature: –28 °C to 65 °C.

l Optional explosion-proof housing available.

2.Modutrol IV Actuator Control Signal Table

ModelControl TypeM6184Two-position floatingM6284Two-position floating with feedback potentiometerM72844–20 mA, 1–5 VM9184–M9484135 Ω resistance signalM9484Specially used for combustion safety controllers

3.MODUTROL IV – Damper Actuators for Medium/Large Burners

ModelTorqueFull Open TimeControl TypeAuxiliary SwitchOther Features

l M6284A104817 Nm30 sFloating, feedbackNone160° stroke

l M6284A105517 Nm30 sFloating, feedbackNone90° stroke

l M6284C101017 Nm30 sFloating, feedback2 SPDT90° stroke

l M7284A100417 Nm30 s4–20 mANone90° stroke

l M7284A101217 Nm30 s4–20 mANone160° stroke

l M7284C100017 Nm30 s4–20 mA2 SPDT90° stroke

l M7284Q100917 Nm30 s4–20 mA2 SPDT90°, zero point adjustable

l M7294Q100734 Nm30 s4–20 mA2 SPDT90°, zero point adjustable

l M9184A103517 Nm30 s135 Ω resistanceNone90° stroke

4.MODUTROL IV – Common Accessories

Part NumberDescription198162GABuilt-in transformer, 220 Vac → 24 Vac7616BRActuator linkage7617ADWActuator linkage220738AUniversal mounting base

5.Specification

l Torque rating: 150 lb-in (≈ 17 Nm) for the non-spring-return version.

l Supply voltage: 120 Vac, 50/60 Hz.

l Control input signal: 4–20 mA modulating control.

l Stroke (adjustable): 90° to 160° (factory often 90°) for positioning dampers or valves.

l Nominal timing: 30–60 seconds for full stroke.

l Ambient temperature range: -40 °F to +150 °F (-40 °C to +66 °C).

l Shaft: Dual-ended square shaft 0.375 in (≈10 mm).

l Dead-weight load on each shaft end: up to 200 lb; maximum combined load both ends: 300 lb.

l Auxiliary switch ratings (if equipped): e.g., one contact at 120 Vac full-load ~7.2 A; locked rotor ~43.2 A.

l Housing & mounting: Die-cast aluminum; foot-mounted; junction box rated NEMA 3 when upright.

l Approvals: UL listed (File No. E4436, Guide No. XAPX).

6.Application

The Honeywell M7284A1004 Modutrol IV actuator is a motor without a spring return. It controls dampers and valves in HVAC, boiler, and burner systems.

People also know the Modutrol IV Motor as the Modutrol IV Proportional Reversing Actuator. A 120V Non-Spring Return Foot Mounted Actuator is present. This device receives a modulating control signal of 4–20 mA or 2–10 V. It can accurately position dampers or valves between fully open and fully closed.

Perfect for heating, ventilation, and air-conditioning systems in commercial and industrial settings. It also works well for combustion air dampers, mixing valves, and fan control applications. The M7284A1004 offers precise control and stable performance.

Energy efficient, it can replace older Modutrol II and III motors. No one needs to make mechanical changes, which makes it great for retrofits or new installations. Reliable and provides high-torque, non-spring-return operation.

7.Related Part Numbers

l M7284A1004 – Standard modulating, non-spring-return actuator (120 Vac, 150 lb-in torque)

l M7284C1000 – Modulating actuator with two auxiliary switches

l M7285A1004 – Spring-return version for fail-safe positioning

l M7282A1004 – Proportional control actuator for two-position or floating control

l M7281A1004 – Low-voltage (24 Vac) modulating actuator

l M7294A1002 – High-torque modulating actuator (300 lb-in torque)

l M7284Q1106 – Modutrol IV actuator with adjustable stroke and feedback potentiometer
