Resideo S8600H3002 Pilot Control Ignition Module

1.General Description

People also call the Resideo S8600H3002 Intermittent Pilot Control Ignition Module the Honeywell S8600H3002. This module is a reliable ignition control for gas-fired heating equipment. It works with furnaces, boilers, and water heaters.

This module works on 24 VAC. It controls the ignition sequence, monitors the flame, and ensures safety shutoff. This keeps the system running reliably.

The Honeywell S8600H3002 Ignition Module Intermittent Pilot 24 VAC lights the pilot burner automatically. It checks for flame presence using flame rectification.

It also controls the gas flow to the main burner. It features a 90-second trial and lockout time for added safety and performance assurance. The Resideo S8600H3002 Ignition Module is compact, durable, and easy to service. Perfect for homes and small businesses that need reliable and efficient ignition control.

2.Specification

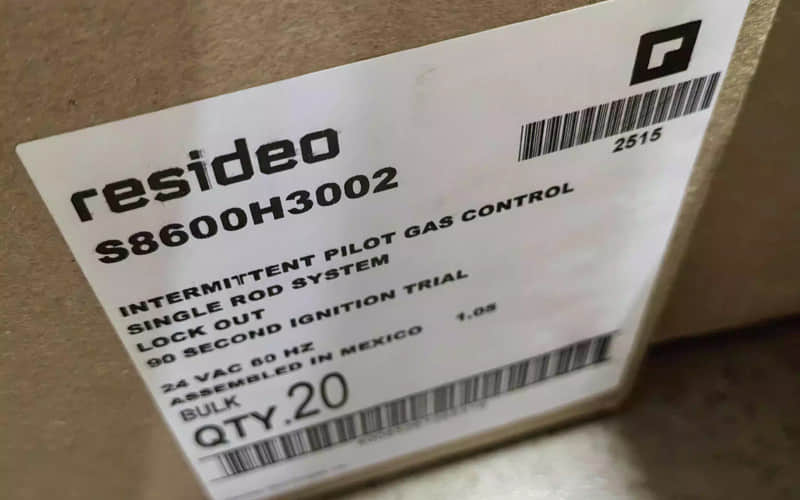

l Model: Resideo (Honeywell) S8600H3002

l Alternate Names: Honeywell S8600H3002, Resideo S8600H3002 Ignition Module, S8600H3002 Ignition Module F/GA124/244

l Type: Intermittent Pilot Ignition Control Module

l Application: Gas-fired furnaces, boilers, unit heaters, and water heaters

l Gas Type: Natural or LP gas

l Ignition Type: Intermittent pilot with flame rectification sensor

l Flame Sense: Flame rectification (flame rod)

l Ignition Sequence: Automatic pilot ignition, flame monitoring, and main burner activation

l Trial for Ignition: 90 seconds with lockout on failure

l Flame Failure Response Time: 0.8 seconds nominal

l Igniter Output: 15,000 V minimum peak

l Pilot Valve: 2.0 A maximum @ 24 VAC

l Main Valve: 2.0 A maximum @ 24 VAC

l Operating Voltage: 24 VAC, 50/60 Hz

l Ambient Operating Temperature: -40°F to +175°F (-40°C to +79°C)

l Mounting: Surface mount with multiple position options

l Safety Features: Lockout after failed ignition attempts; manual reset required

l Approvals: UL and CSA certified

3.Application

The Honeywell S8600H3002 Ignition Module is designed for gas-fired heating appliances that use an intermittent pilot system. It provides automatic ignition control, flame sensing, and safety shutoff, ensuring safe and efficient burner operation. Common applications include residential and light commercial furnaces, boilers, water heaters, rooftop units, and space heaters.

This pilot ignition module has a 90-second trial and lockout time. It works for both natural gas and LP gas systems.

It works well in many temperatures and conditions. This makes it great for retrofit, replacement, or OEM installations. The Resideo S8600H3002 helps maintain energy-efficient, consistent, and dependable heating performance.

4.Related Part Numbers

The following models are related to the Resideo S8600H3002 / Honeywell S8600H3002 Ignition Module, providing similar or compatible functionality for various system configurations:

l S8600H1002 – Standard intermittent pilot ignition module

l S8600M1002 – Intermittent pilot ignition control with different connector configuration

l S8610U3009 – Universal intermittent pilot ignition control (replacement for many S86 models)

l S8600F1006 – Module for specific furnace and boiler applications

l S8610M1002 – Intermittent pilot ignition module with local flame sense options

l S8600A1009 – Early model intermittent pilot module, compatible in certain retrofit systems
