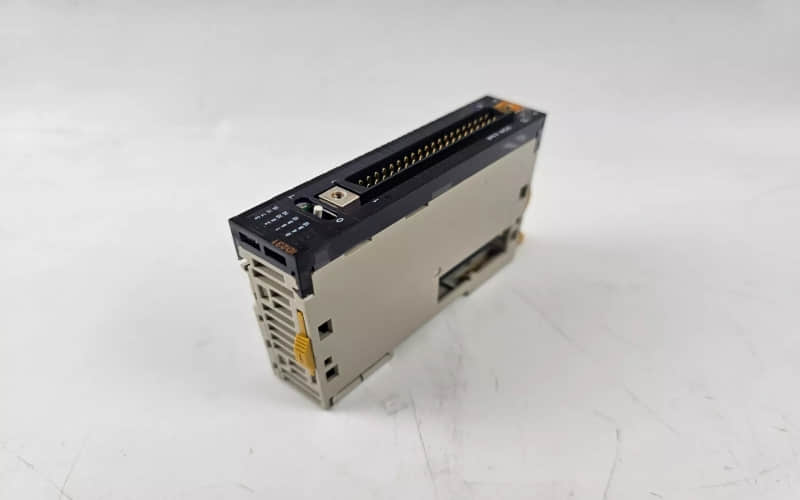

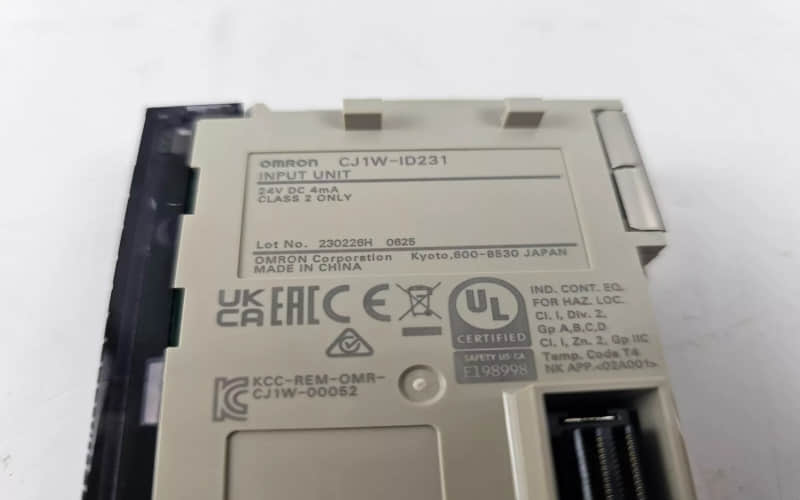

OMRON CJ1W-ID231 digital input unit

General Description

The OMRON CJ1W-ID231 is part of the CJ series input units designed to receive and process digital signals from external devices. This unit is particularly suited for applications requiring high-speed input capabilities and is compatible with PNP and NPN signal types. Its compact size and robust features make it an excellent choice for various industrial automation applications.

OMRON CJ1W-ID231Technical Specifications

l Specification Details

l I/O System CJ I/O Bus

l Expansion Unit Type Basic I/O Unit

l Number of Digital Inputs 32

l Digital Input Type PNP/NPN

l Rated Input Voltage 24 V DC

l Permitted Voltage Range 20.4 to 26.4 V DC

l Input Impedance 5.6 kΩ

l Input Current 4.1 mA typical (at 24 V DC)

l ON Voltage/Current 19.0 V DC min./3 mA min.

l OFF Voltage/Current 5 V DC max./1 mA max.

l ON Response Time 8.0 ms max

l OFF Response Time 8.0 ms max

l Insulation Resistance 20 MΩ (100 V DC)

l Dielectric Strength 1,000 V AC

l Internal Current Consumption 90 mA max (at 5 V DC)

l Weight 70 g max

Detailed Features

1. Digital Input Capability: The unit can handle up to 32 input signals, allowing for comprehensive monitoring of various devices.

2. Flexible Signal Types: Compatible with both PNP and NPN signal types, providing versatility in application.

3. Robust Electrical Specifications: Designed to operate within a wide voltage range, ensuring compatibility with different systems.

4. Compact and Lightweight: Weighing only 70 g, the CJ1W-ID231 is easy to install in tight spaces without compromising functionality.

OMRON CJ1W-ID231 Applications

The OMRON CJ1W-ID231 is suitable for a wide range of applications, including:

1. Manufacturing Automation: Ideal for monitoring sensors and switches in production lines.

2. Process Control: Various process control systems are used to gather input from field devices.

3. Building Automation: Effective in managing inputs from HVAC systems, lighting controls, and security systems.

4. Robotics: Facilitates signal processing from robotic arms and automated machinery.

Installation Process

l Preparation:

Gather necessary tools and components.

Review the installation manual for safety instructions.

l Mounting the Unit:

Securely attach the CJ1W-ID231 to a DIN rail or panel using appropriate mounting hardware.

l Wiring Connections:

Connect the input power supply to the designated terminals.

Ensure correct polarity when wiring the input signals.

l Connecting to PLC:

The provided connector links the input unit with the leading PLC unit.

l Power On:

Turn on the power supply and check LED indicators for proper operation.

l Configuration:

Program the PLC using compatible software to define how the inputs will operate based on external signals.

l Precautions

Always ensure that power is turned off before making any electrical connections.

Follow local electrical codes during installation.

Verify that all connections are secure to prevent short circuits or malfunctions.

OMRON CJ1W-ID231 Related Part Numbers

l CJ1W-ID201

l CJ1W-ID211

l CJ1W-ID232

l CJ1W-ID233

Previous:   Omron CJ1W-EIP21 Network Controller PLC Module
