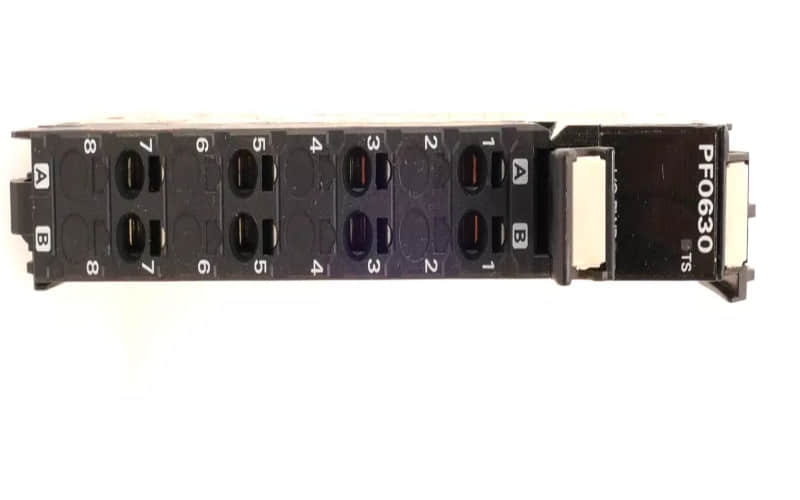

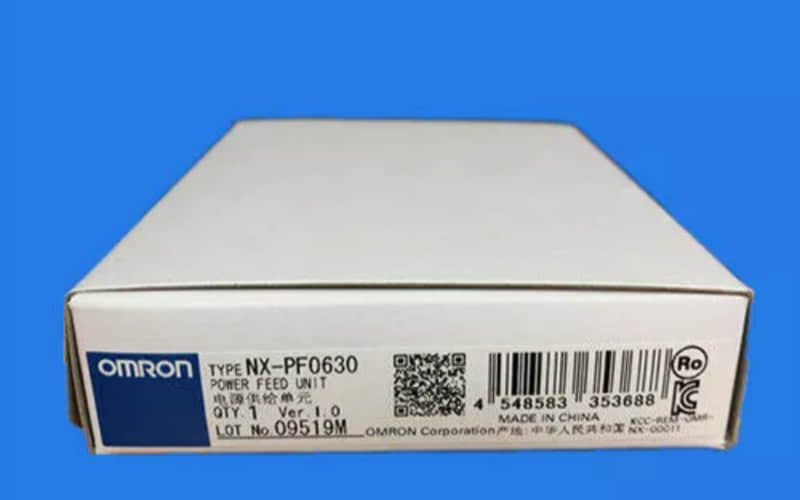

OMRON NX-PF0630 power feed unit

General Description

The OMRON NX-PF0630 Power Feed Unit is part of the NX series designed to provide additional power to I/O modules. This unit ensures stable and efficient power distribution, which is critical for the reliable operation of connected devices. Its robust design makes it suitable for various industrial applications where space and efficiency are paramount.

Specification Details

l Model NX-PF0630

l Power Supply Voltage 5 to 24 V DC (4.5 to 28.8 V DC)

l Maximum Current 4 A

l External Connection Terminals Screwless push-in terminal block (8 terminals)

l Dielectric Strength 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max.

l Insulation Resistance 20 MΩ min. between isolated circuits (at 100 VDC)

l Weight 65 g max

l Dimensions (H × W × D) 100 mm × 12 mm × 71 mm

Detailed Features

1. Power Supply Flexibility: The NX-PF0630 supports a wide range of input voltages, making it adaptable to various automation setups.

2. Efficient Power Distribution: With a maximum output current of 4 A, it can power multiple I/O modules simultaneously.

3. User-Friendly Design: The screwless push-in terminal block allows quick and secure wiring without requiring specialized tools.

4. Compact Form Factor: Its slim design enables installation in tight spaces, optimizing panel layout and reducing footprint.

Applications

The OMRON NX-PF0630 is suitable for a variety of applications, including:

A. Industrial Automation: Provides reliable power supply to sensors, actuators, and other devices in manufacturing settings.

B. Building Automation: Ideal for powering HVAC systems, lighting controls, and security equipment.

C. Process Control Systems: Ensures stable operation of control systems that require consistent power supply.

D. Robotic Systems: Supports the power needs of robotic arms and automated machinery.

Installation Process

l Preparation:

Gather necessary tools and components.

Review the installation manual for safety instructions.

l Mounting the Unit:

Securely attach the NX-PF0630 to a DIN rail or panel using appropriate mounting hardware.

l Wiring Connections:

Connect the input power supply wires to the designated terminals on the unit.

Ensure proper polarity when connecting devices that this unit will power.

l Connecting to I/O Modules:

The screwless push-in terminals connect the output terminals to the corresponding I/O modules.

l Power On:

Turn on the power supply and check LED indicators for proper operation.

l Testing Configuration:

Verify that all connected devices are receiving adequate power and functioning correctly.

l Precautions

Always ensure that power is turned off before making any electrical connections.

Follow local electrical codes during installation.

Avoid exposing the unit to extreme temperatures or moisture that could affect performance.

Ensure that all connections are secure to prevent short circuits or malfunctions.

Related Part Numbers

l NX-PF0730

l NX-PC0010

l NX-PC0020

l NX-PC0030
