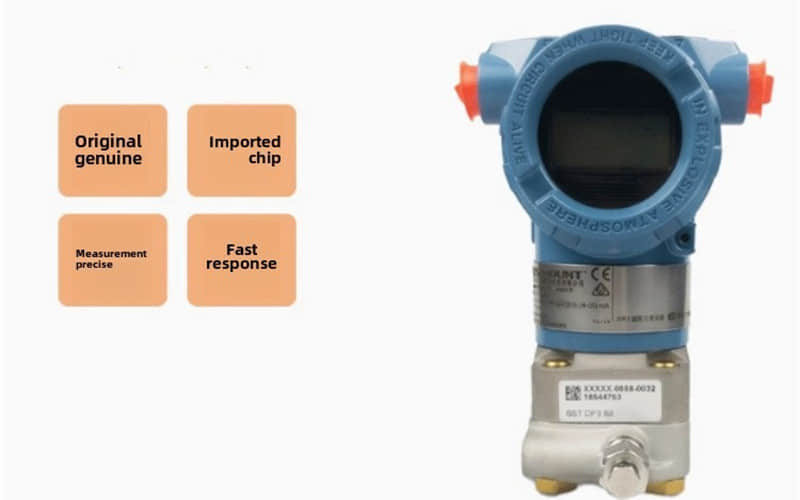

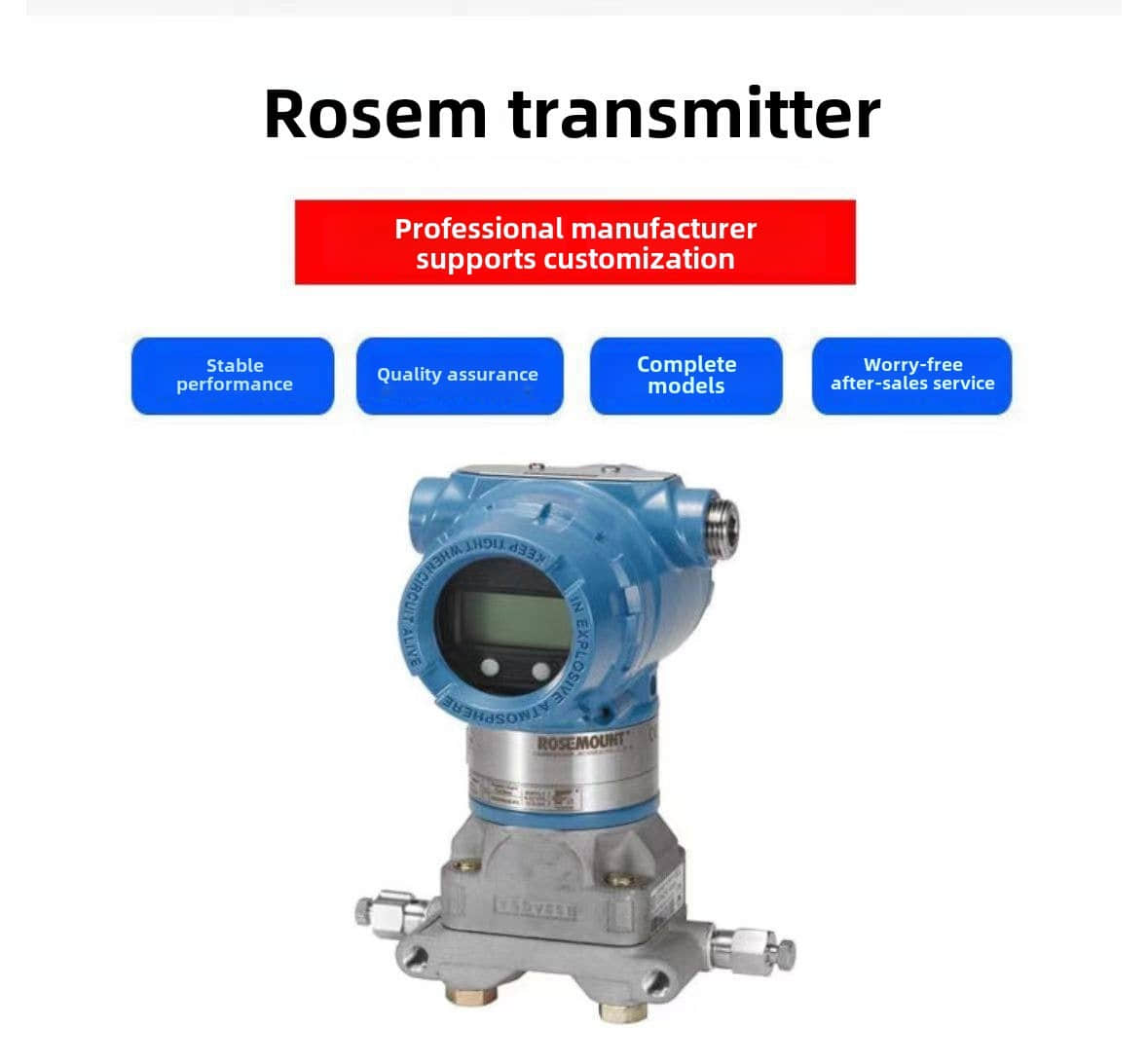

Rosemount 2051CG Pressure Transmitter

General Description:

The Rosemount 2051CG Pressure Transmitter is a state-of-the-art device for accurate and reliable pressure measurement in industrial applications. It is widely used in oil and gas, chemical, power generation, and water treatment industries. The transmitter is known for its robust construction, exceptional performance, and ease of installation, making it a preferred choice for demanding environments.

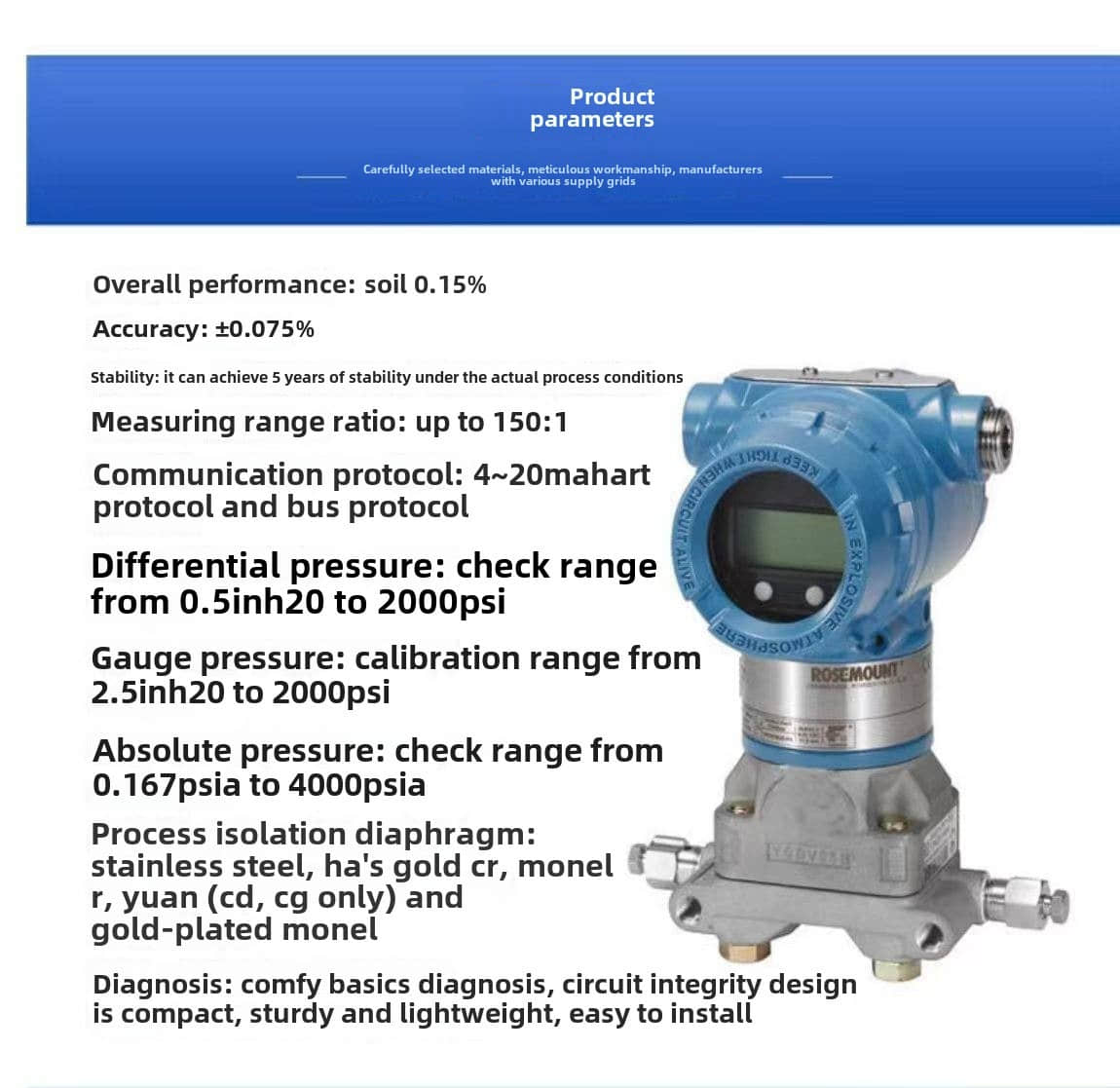

Rosemount 2051CG Technical Specifications:

l Pressure Range: Up to 4000 psi (276 bar)

l Accuracy: ±0.065% of span

l Output: 4-20 mA HART® communication

l Process Connection: 1/2" NPT or 1/4" NPT

l Material: 316L stainless steel, Hastelloy C, or other alloys

l Temperature Range: -40°F to 185°F (-40°C to 85°C)

l Power Supply: 10.5-42 V DC

l Certifications: ATEX, IECEx, CSA, and more

Features:

1. Advanced sensor technology for high accuracy

2. Robust design for harsh industrial environments

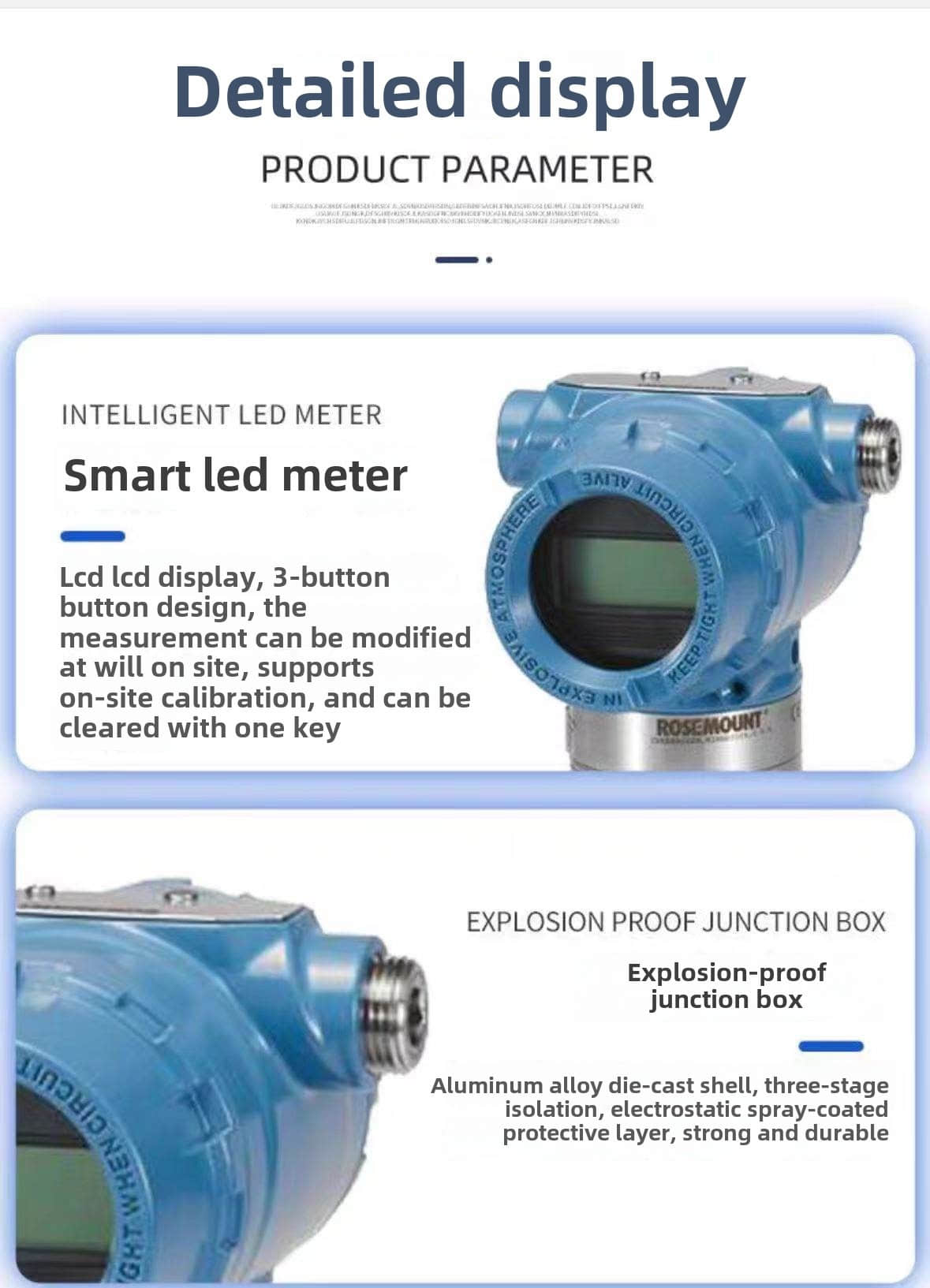

3. Easy-to-use local operator interface (LOI)

4. Diagnostics and troubleshooting capabilities

5. Compatible with HART® communication protocol

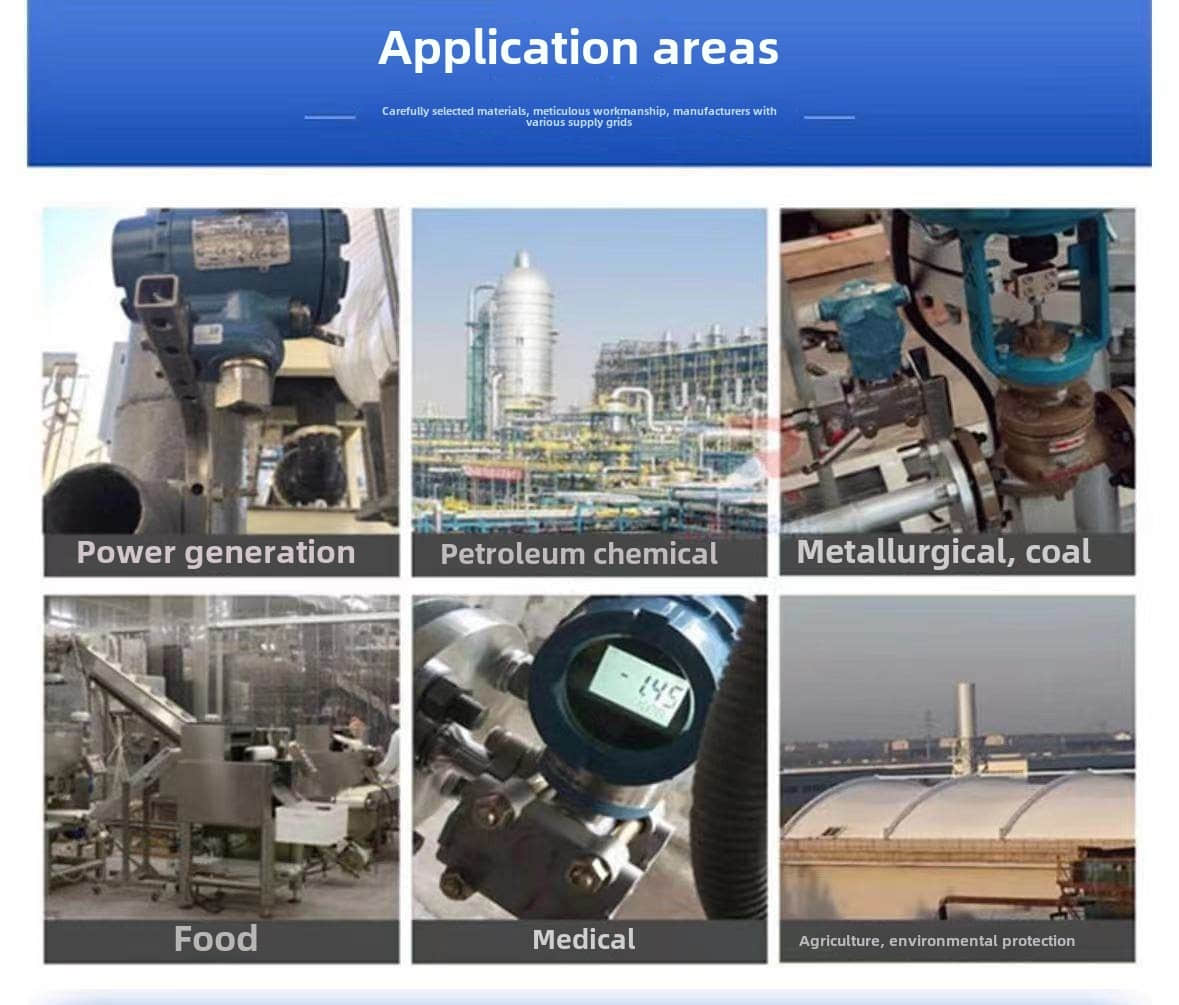

Rosemount 2051CG Applications:

A. Oil and gas pipelines

B. Chemical processing

C. Power generation

D. Water and wastewater treatment

E. Food and beverage production

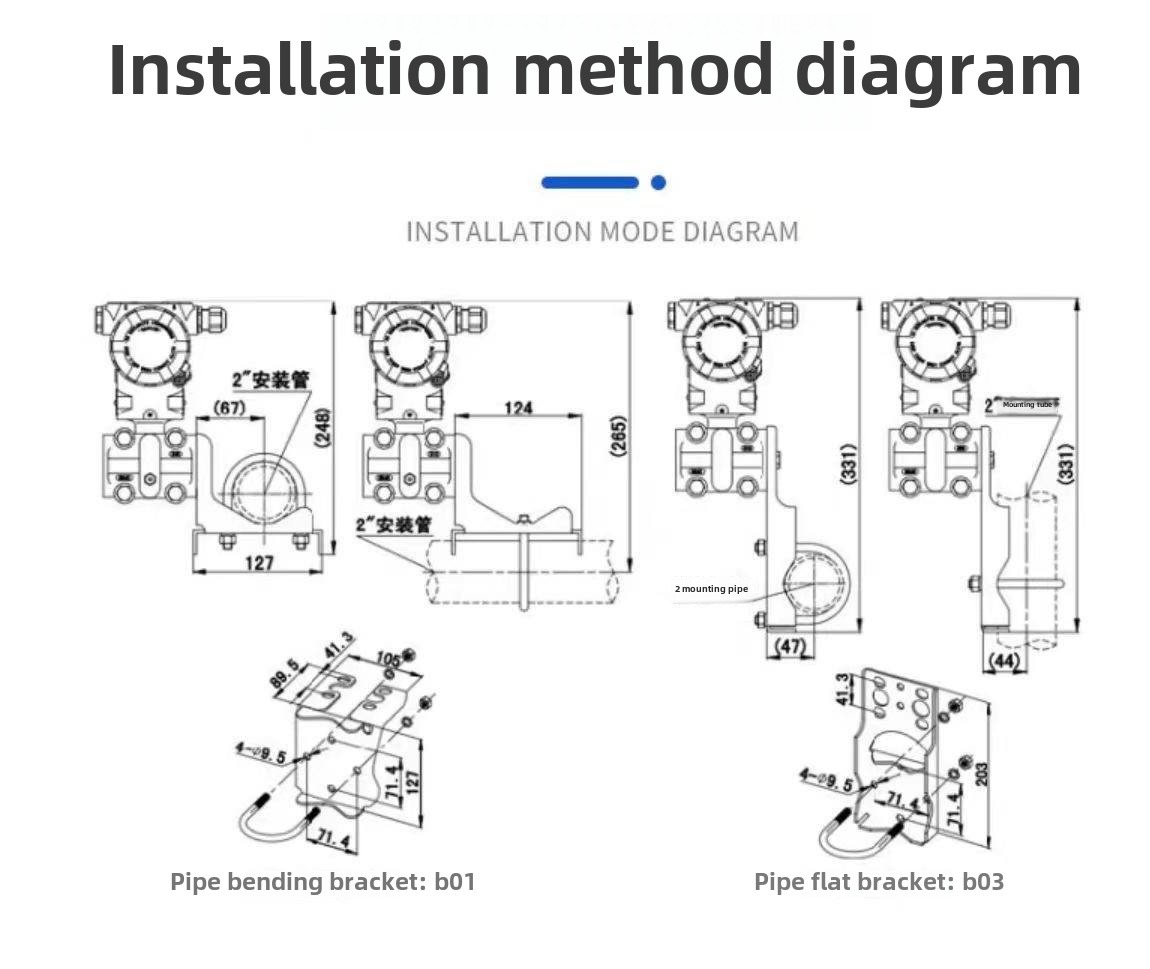

Installation Procedure (Step by Step):

l Preparation: Ensure the process is shut down and depressurized before installation.

l Mounting: Securely mount the transmitter using the appropriate process connection (1/2" NPT or 1/4" NPT).

l Wiring: Connect the transmitter to the power supply and control system using shielded cables.

l Configuration: Configure the transmitter settings using the local operator interface (LOI) or HART® communicator.

l Calibration: Perform a zero and span calibration to ensure accurate measurements.

l Testing: Gradually pressurize the system and verify the transmitter's output.

l Final Check: Ensure all connections are secure and the transmitter functions correctly.

Related Part Numbers:

l Rosemount 2051CG1A

l Rosemount 2051CG2A

l Rosemount 2051CG3A

l Rosemount 2051CG4A
