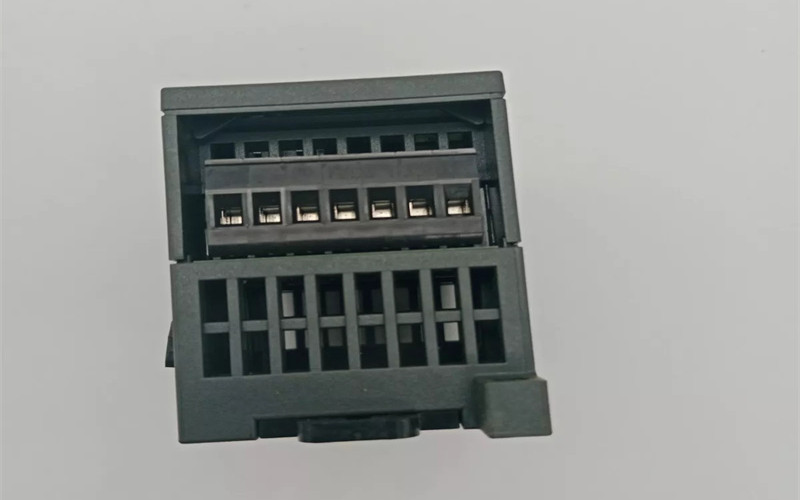

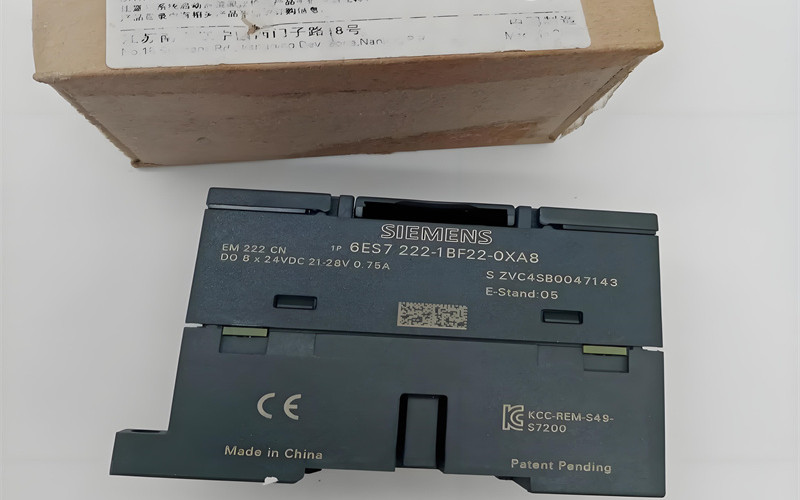

SIEMENS 6ES7222-1BF22-0XA8 digital output module

SIEMENS 6ES7222-1BF22-0XA8 digital output module

Short Description:

Brand: SIEMENS

Item Number: SIEMENS 6ES7222-1BF22-0XA8 digital output module

Payment by: T/T

Warranty: 1 year

Shipping from: Xiamen City, China

Technical Specifications of SIEMENS 6ES7222-1BF22-0XA8 digital output module are

Part Number: 6ES7222-1BF22-0XA8

Product Type: Digital Output Module

Series: SIMATIC S7-1200

Number of Outputs: 8 Digital Outputs (DO)

Output Type: Transistor (24 V DC)

Output Voltage:

Rated value: 24 V DC

Range: 20.4 V to 28.8 V DC

Max Current per Output: 0.5 A (per channel)

Max Total Current: 4 A (shared across all channels)

Response Time:

Resistive load: 0.1 ms

Inductive load: 2 ms

Protection:

Short-circuit protection on outputs

Overload protection

Power Consumption: Typically 2 W

Isolation: Between outputs and backplane bus (500 V AC)

Diagnostics: LEDs for channel status indication

Mounting Type: DIN rail mounting

Dimensions: 100 x 45 x 75 mm (H x W x D)

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +70°C

Degree of Protection: IP20

Certifications: CE, cULus, FM Class I Div 2

SIEMENS 6ES7222-1BF22-0XA8 digital output module can be widely used on occasions as below:

The Siemens 6ES7222-1BF22-0XA8 digital output module is designed for controlling digital devices in industrial automation systems. It is part of the SIMATIC S7-1200 series, which is used in various small to medium-sized automation applications. Key applications include:

Machine Control: Controlling actuators such as solenoids, motors, and relays that require on/off switching through digital signals.

Process Automation: Used for operating digital output devices in process control systems, such as valves, pumps, and signal indicators.

Building Automation: Controlling lighting systems, HVAC units, and security systems in intelligent buildings.

Factory Automation: Managing digital outputs for automated production lines, packaging machines, and material handling systems.

Energy Management: Controlling and monitoring electrical equipment like circuit breakers and power relays in energy systems.

Besides SIEMENS 6ES7231-0HC22-0XA8 analog input module, there are other part numbers under Siemens S7-1200 in which you may be interested; please refer to:

6ES7222-1HF22-0XA8 – 8DO (8 digital outputs) module, relay type.

6ES7222-1BH32-0XB0 – 16DO (16 digital outputs) transistor type, 24V DC.

6ES7222-1BF32-0XB0 – 8DO transistor output module (24V DC), isolated.

6ES7222-1BD32-0XB0 – 16DO transistor output module (24V DC).

6ES7221-1BF22-0XA8 – 8DI (8 digital inputs) module, 24V DC.

6ES7221-1BH32-0XB0 – 16DI (16 digital inputs) module, 24V DC.

6ES7221-3BD30-0XB0 – 32DI (32 digital inputs) module, 24V DC.

6ES7231-1PH32-0XB0 – 16DI/16DO (16 digital inputs, 16 digital outputs) module, transistor type, 24V DC.

6ES7231-1QH32-0XB0 – 8DI/8DO (8 digital inputs, 8 digital outputs) module, relay type.

6ES7231-4HD32-0XB0 – 8AI (8 analog inputs) module for current/voltage.

6ES7231-5QD32-0XB0 – 4AI (4 analog inputs) module for resistance thermometers (RTD).

6ES7232-0HB22-0XA8 – 2AO (2 analog outputs) module for current/voltage.

6ES7211-1AE40-0XB0 – CPU 1211C, with 6DI/4DO and 2AI (analog inputs).

6ES7212-1AE40-0XB0 – CPU 1212C, with 8DI/6DO and 2AI.

6ES7214-1AG40-0XB0 – CPU 1214C, with 14DI/10DO and 2AI.
