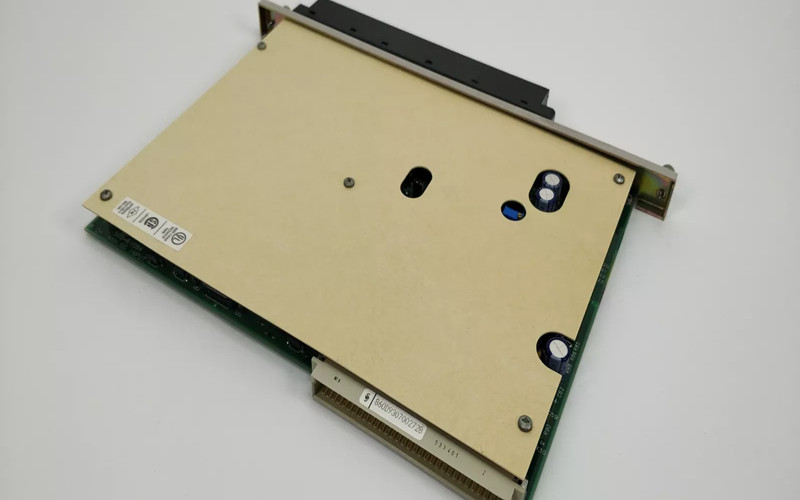

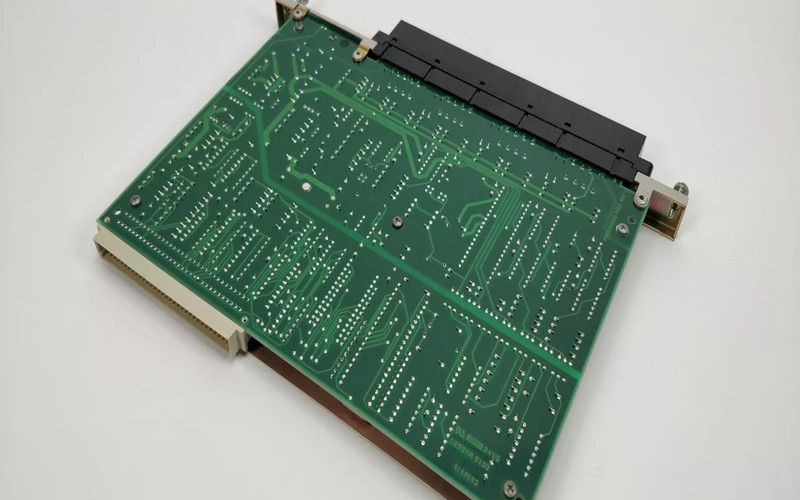

Siemens 505-6108A Analog Input Module

The Siemens 505-6108A is a reliable and accurate analogue input module. It provides high-speed and precise measurements to ensure optimal performance in diverse industrial applications.

Technical Specifications of Siemens 505-6108A

ü Series: Siemens 505 Series for TI505 PLCs

ü Number of Input Channels: 8 differential analogue input channels

ü Input Range: ±5V, ±10V, 0-5V, 0-10V

ü Resolution: 12-bit A/D resolution for high precision

ü Conversion Rate: 10 ms per channel

ü Accuracy: ±0.1% of full scale

ü Input Impedance: Greater than 10MΩ

ü Operating Temperature Range: 0°C to +60°C

ü Certifications and Compliance: UL, CSA, CE marking for industrial environments

Features of Siemens 505-6108A

1) High Precision Analog Measurement: Provides 12-bit resolution for precise data acquisition, ideal for monitoring and control applications.

2) Multiple Voltage Input Ranges: Supports various voltage ranges, making it versatile for different input requirements in automation systems.

3) Fast Data Conversion: With a 10 ms conversion rate per channel, this module supports high-speed applications.

4) Differential Inputs: Reduces noise and interference, improving signal accuracy, especially in environments with electrical noise.

5) Built-In Diagnostics: Provides error detection and diagnostic feedback for quick troubleshooting, enhancing system reliability.

6) Easy Integration: Seamlessly integrates with Siemens TI505 PLC systems, enabling efficient control and monitoring of analogue signals.

7) Rugged Design: Designed for durability in industrial environments with wide temperature range tolerance.

Applications of Siemens 505-6108A

² The Siemens 505-6108A Analog Input Module is suitable for industries that require precise analogue signal monitoring and control, such as:

² Process Control Systems: Ideal for monitoring critical process variables like temperature, pressure, and flow rate.

² Manufacturing Automation: Essential in automated manufacturing setups where real-time analogue data monitoring is crucial.

² Water and Wastewater Treatment: Effective in monitoring levels, pH, and other parameters critical to water treatment processes.

² Energy and Utilities: Suitable for energy management applications requiring high power quality and load monitoring accuracy.

Related Part Numbers of Siemens 505-6108A

Ø 505-6108B: An enhanced version of the 505-6108A with additional features and improved resolution.

Ø 505-7003: Analog Output Module compatible with the TI505 series for analog signal control.

Ø 505-6508: 8-Channel Analog Input Module supporting thermocouple and RTD inputs for temperature measurement.

Ø 505-6020: Digital Input Module for TI505 PLC systems to support analogue and digital input requirements.
