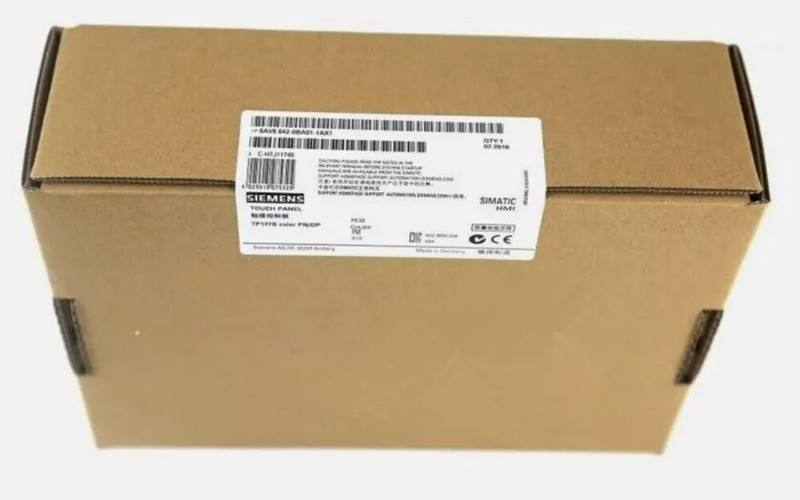

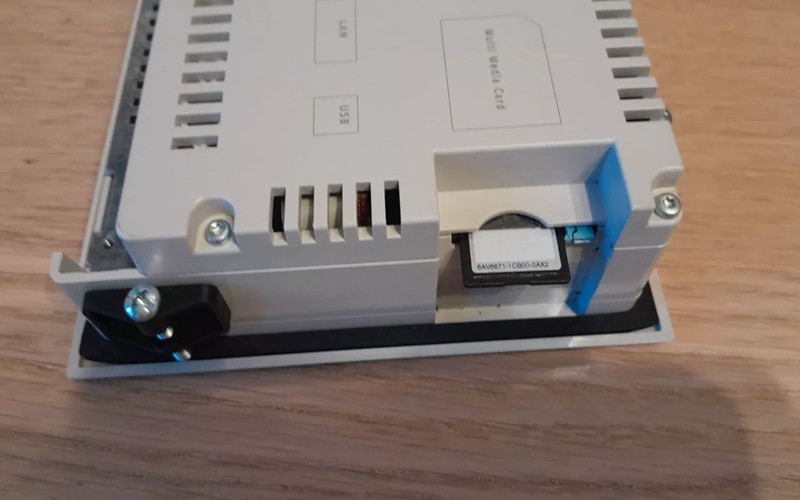

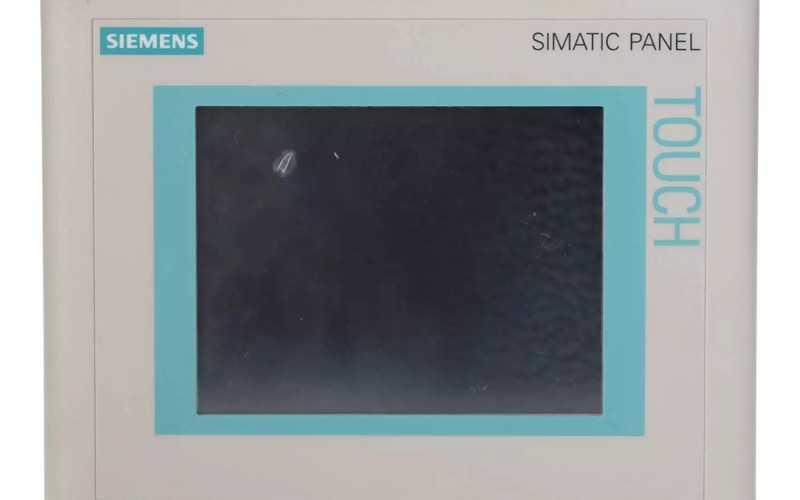

Siemens 6AV6642-0BA01-1AX1 Touch Key Panel
The Siemens 6AV6642-0BA01-1AX1 is a versatile HMI solution that integrates seamlessly with industrial automation systems, offering a durable, efficient interface for control and monitoring tasks across a wide range of industries.
Technical Specifications of Siemens 6AV6642-0BA01-1AX1
ü Product Name: Siemens 6AV6642-0BA01-1AX1
ü Description: SIMATIC OP177B 4.3" Touch Key Panel
ü Category: Human-Machine Interface (HMI)
ü Manufacturer: Siemens AG
ü Display Type: TFT, Color Display
ü Screen Size: 4.3 inches
ü Resolution: 320 x 240 pixels (QVGA)
ü Touch Panel: Analog resistive touch screen with function keys
ü Processor: ARM processor with Siemens proprietary technology for optimal performance in industrial settings
ü Memory:
Ø RAM: 512 KB
Ø Flash Memory: 2 MB
ü Interface: MPI/PROFIBUS DP up to 12 Mbps, RS-485, and Ethernet communication ports for connectivity with SIMATIC PLCs and other automation devices.
ü Power Supply: 24 V DC
ü Power Consumption: Approximately 6 W
ü Operating Temperature: 0 to +50 °C
ü Storage Temperature: -20 to +70 °C
ü Certifications: CE, UL, CSA compliant for various industrial standards
ü Dimensions: 167 mm x 135 mm x 50 mm
ü Weight: Approx. 0.7 kg
Key Features of Siemens 6AV6642-0BA01-1AX1
① User-Friendly Interface:
Equipped with a TFT color screen and intuitive touch panel for simplified user interactions.
Function keys with tactile feedback provide a reliable and efficient alternative input method.
② Robust Communication Options:
Supports MPI/PROFIBUS DP at speeds up to 12 Mbps, ideal for interfacing with Siemens PLCs.
③ Ethernet and RS-485 interfaces allow for versatile networking and connectivity options across various industrial environments.
④ Compact and Durable Design:
Compact form factor optimized for confined spaces without sacrificing durability or readability.
Designed to withstand harsh industrial environments, making it suitable for high-temperature and dusty conditions.
⑤ Flexible Memory and Storage:
Sufficient internal memory for storing operational data, scripts, and graphics, is essential for sophisticated HMI operations.
Supports expandable memory through Siemens' proprietary configuration tools.
⑥ Siemens WinCC Flexible Compatibility:
Configurable with WinCC Flexible for seamless integration with SIMATIC automation systems.
Pre-loaded graphics and standard operating scripts simplify customization and deployment.
Applications of Siemens 6AV6642-0BA01-1AX1
ü The Siemens 6AV6642-0BA01-1AX1 is engineered to meet the demands of diverse industrial applications, particularly suited for the:
ü Manufacturing Automation: Ideal for monitoring and controlling machinery and processes in automated manufacturing lines.
ü Process Control: Used extensively in chemical processing, energy production, and water treatment plants where real-time monitoring is crucial.
ü Building Automation: Applicable in facility management and building automation for HVAC, lighting control, and security systems.
ü Food & Beverage Industry: Suitable for environments requiring wash-down capabilities and hygienic conditions, thanks to its robust design.
ü Packaging and Material Handling: Well-suited for handling complex material flow and control operations in logistics and warehousing environments.
Related Part Numbers
For ease of integration and maintenance, the following related part numbers may also apply to Siemens 6AV6642-0BA01-1AX1:
Ø 6AV6642-0BC01-1AX1 - Similar model with extended functionality and display enhancements.
Ø 6AV6642-0AA11-0AX1 - Alternative model for lower resolution and budget-friendly applications.
Ø 6AV6644-0AB01-2AX0 - Higher resolution HMI panel for applications requiring larger displays.
Ø 6AV2123-2GB03-0AX0 - Updated model with enhanced memory and Ethernet capabilities.
Ø 6AV6542-0AA15-2AX0 - Key-panel-only option for industrial environments requiring minimal touch interaction.
please refer to the link for datasheet of Siemens 6AV6642-0BA01-1AX1
