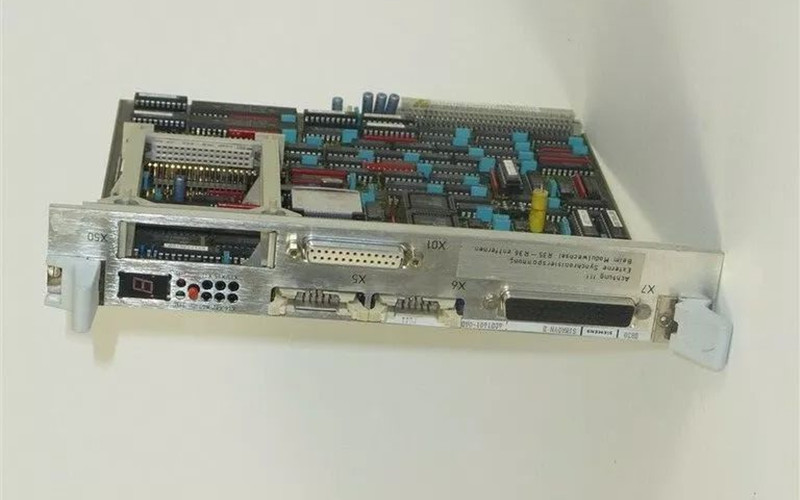

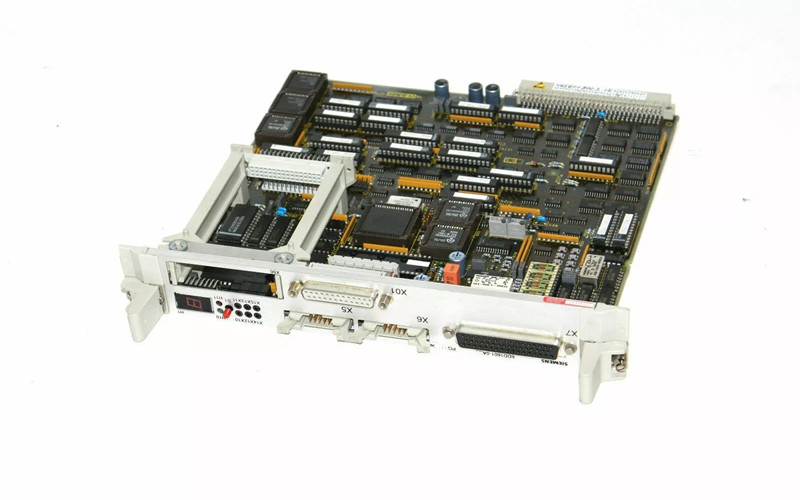

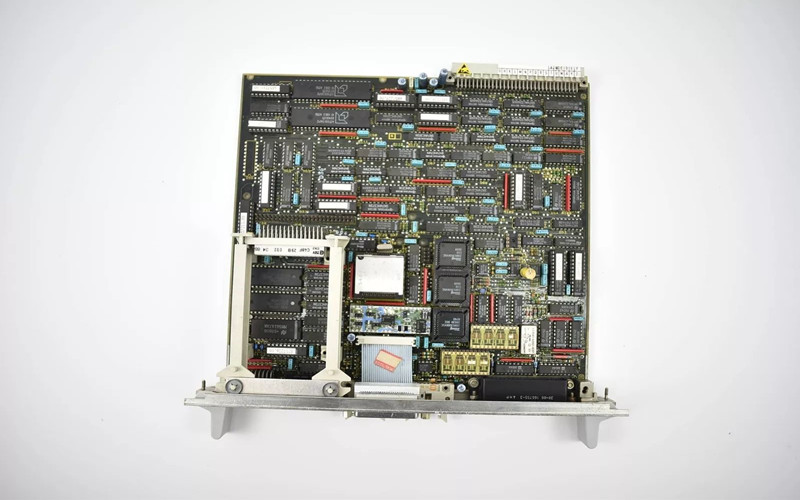

Siemens 6DD1601-0AD1 SIMATIC PCS 7 Interface Module

1. Technical Specifications of Siemens 6DD1601-0AD1

l Manufacturer: Siemens

l Product Family: SIMATIC PCS 7

l Module Type: IM 460-0 Interface Module

l Product Code: 6DD1601-0AD1

l Voltage Range: 24 V DC

l Power Consumption: Low power requirements for energy-efficient operation

l Operating Temperature: Standard industrial range for high-reliability applications

l Certifications: CE Marking, RoHS compliant

2. Detailed Features of Siemens 6DD1601-0AD1

1. High-Performance Data Transmission: This technology enables reliable, high-speed data exchange between modules and distributed systems in industrial applications.

2. Easy Integration: The 6DD1601-0AD1 is designed for seamless integration within the SIMATIC PCS 7 system, offering standardized connections and ease of installation.

3. Robust Design: Built to withstand industrial environments, protecting against environmental stresses like dust, vibration, and temperature variations.

4. Plug-and-Play Setup: The module features an easy setup process, minimizing installation and configuration time.

5. Diagnostic Capabilities: Includes onboard diagnostic functions to ensure reliability and provide easy fault tracing and maintenance.

3. Applications of Siemens 6DD1601-0AD1

l The Siemens 6DD1601-0AD1 IM 460-0 Interface Module is widely used in industrial automation sectors, including:

l Process Control Systems: Ideal for integration with Siemens PCS 7 for applications requiring precise control and automation, such as chemical processing, manufacturing, and energy generation.

l Data Acquisition and Communication: Suitable for environments that require efficient and consistent data transmission between control systems and remote modules.

l Distributed Control Systems (DCS): Supports the reliable functioning of DCS, ensuring minimal downtime in critical automation processes.

4. Related Part Numbers of Siemens 6DD1601-0AD1

l 6DD1601-0AD0: Alternative variant with similar specifications

l 6DD1600-0AG0: Interface module from the same product family

l 6DD1640-0AE0: Used as an expansion module within PCS 7 configurations

l 6DD2920-0AC0: Additional module for complementary communication capabilities within PCS 7 setups
