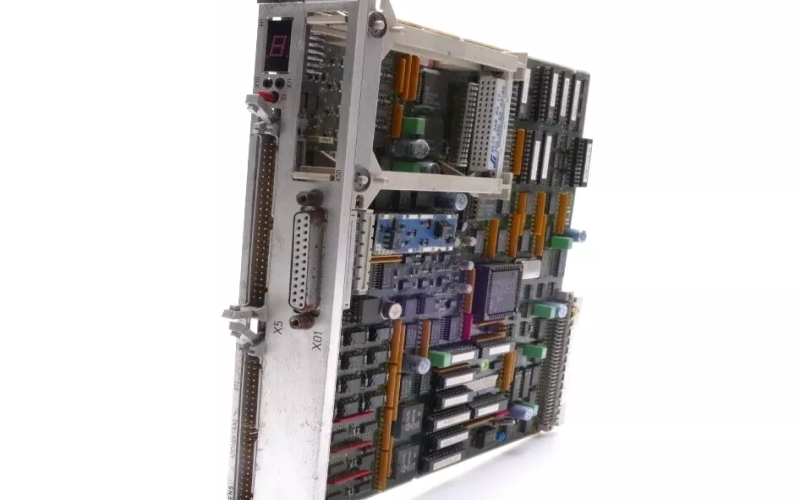

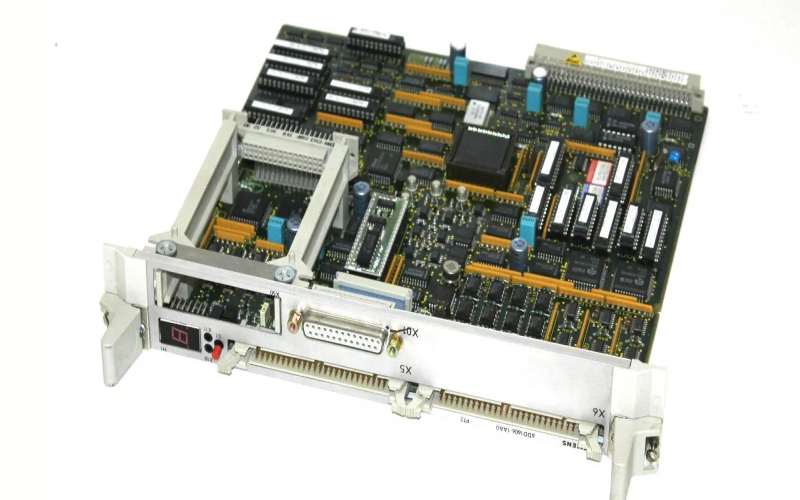

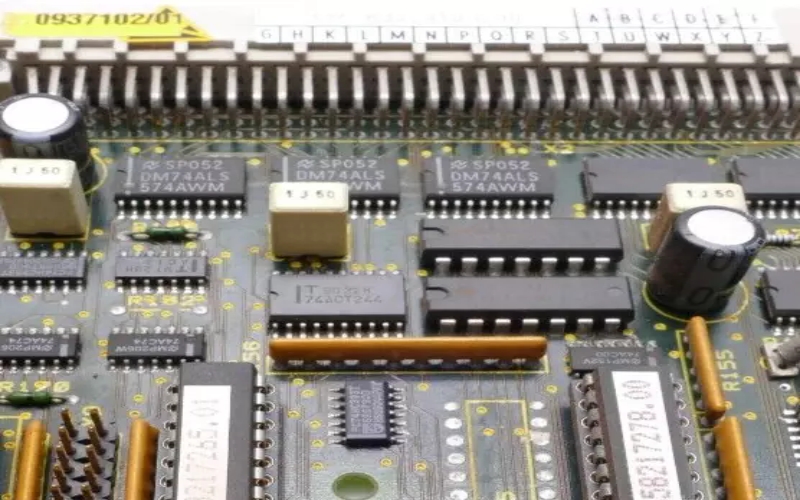

Siemens 6DD1606-1AA0 Digital Input Module

The SIEMENS 6DD1606-1AA0 is a versatile and robust digital input module that provides reliable performance for various industrial automation applications. Its compact design, high reliability, and compatibility with Siemens PLCs make it a preferred choice for engineers and system integrators seeking efficient solutions in digital input processing.

1) Technical Specifications of Siemens 6DD1606-1AA0

l Model Number: 6DD1606-1AA0

l Type: Digital Input Module

l Series: 6DD

l Voltage Range: 20.4 to 28.8 V DC

l Current Consumption: 40 mA (typical)

l Number of Inputs: 16

l Input Signal Type: Digital (24 V DC)

l Input Logic: Positive logic

l Response Time: 5 ms

l Isolation Voltage: 500 V AC

l Temperature Range: -20 to +60 °C

l Storage Temperature: -40 to +85 °C

l Humidity Range: 5% to 95% (non-condensing)

l Dimensions: 120 x 100 x 75 mm (L x W x H)

l Weight: Approximately 0.5 kg

2) Detailed Features of Siemens 6DD1606-1AA0

A. Compact Design: Space-efficient module allowing for high-density installations.

B. LED Indicators: Each input has an LED indicator for visual status monitoring.

C. Robust Performance: Designed for industrial environments, featuring resistance to vibrations and shocks.

D. Modular Configuration: This can be integrated with various Siemens automation systems for flexibility.

E. Simplified Wiring: Easy connection of inputs with clear terminal labelling.

F. High Reliability: Engineered for long operational life with minimal maintenance.

G. Compatible with S7-300 and S7-400 PLCs: Ensures versatility in automation applications.

H. Integrated Diagnostics: Advanced diagnostics capabilities for troubleshooting and system monitoring.

3) Applications of siemens 6DD1606-1AA0

l The SIEMENS 6DD1606-1AA0 Digital Input Module is suitable for various applications, including:

l Factory Automation: Integration into manufacturing processes for real-time monitoring and control.

l Process Control: Utilization in chemical, petrochemical, and water treatment plants.

l Building Automation: Control of commercial buildings' lighting, HVAC, and security systems.

l Machine Control: Used in CNC machines and robotics for input signal processing.

l Transportation Systems: Monitoring and control in railway and traffic management systems.

4) Related Part Numbers of Siemens 6DD1606-1AA0

l 6DD1606-0AA0: Similar input module with different specifications.

l 6DD1606-2AA0: Extended input module for specific applications.

l 6ES7 132-4BF00-0AB0: Siemens S7-1200 series module compatible with similar applications.
