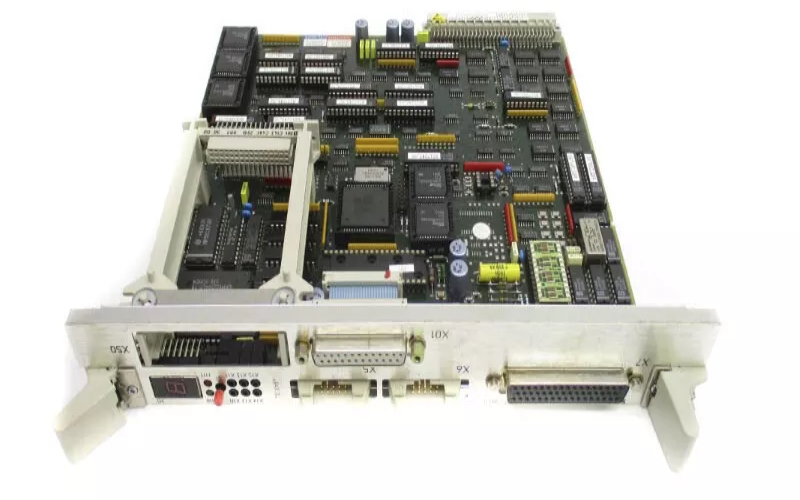

SIEMENS 6DD1645-0AC0 Analog Input Module

The SIEMENS 6DD1645-0AC0 is a robust and versatile analogue input module designed for high-precision applications in industrial automation. Its support for multiple input types, compact design, and advanced diagnostics make it an excellent choice for engineers and system integrators looking to enhance data acquisition and process control in various environments.

A. Technical Specifications of Siemens 6DD1645-0AC0

l Model Number: 6DD1645-0AC0

l Type: Analog Input Module

l Series: 6DD

l Input Channels: 8

l Input Signal Types:

l Voltage: 0 to 10 V

l Current: 0 to 20 mA / 4 to 20 mA

l Resolution: 12 bits

l Sampling Time: 100 ms per channel

l Supply Voltage: 20.4 to 28.8 V DC

l Power Consumption: Approx. 60 mA

l Isolation Voltage: 500 V AC

l Operating Temperature Range: -20 to +60 °C

l Storage Temperature Range: -40 to +85 °C

l Relative Humidity: 5% to 95% (non-condensing)

l Dimensions: 120 x 100 x 75 mm (L x W x H)

l Weight: Approximately 0.6 kg

B. Detailed Features of Siemens 6DD1645-0AC0

1) High Precision: The module provides precise analogue input processing with a resolution of 12 bits, ensuring accurate data acquisition.

2) Multiple Signal Types: Supports voltage and current inputs, making it versatile for various sensor applications.

3) LED Status Indicators: Each channel includes LED indicators to provide real-time status information for quick diagnostics.

4) Modular Design: Easily integrated into Siemens S7-300 and S7-400 PLC systems, promoting scalability and flexibility.

5) Robust Build Quality: Designed for industrial environments, capable of withstanding harsh conditions, including temperature fluctuations and vibrations.

6) Easy Configuration: User-friendly setup with clear terminal markings and simplified wiring.

7) Integrated Diagnostics: Advanced diagnostic features assist in monitoring and troubleshooting system performance.

8) Compatibility: Works seamlessly with various Siemens automation software for configuration and monitoring.

C. Applications of siemens 6DD1645-0AC0

l The SIEMENS 6DD1645-0AC0 Analog Input Module is suitable for a wide range of applications, including:

l Process Automation: Ideal for monitoring and controlling processes in chemical, pharmaceutical, and food industries.

l Building Management Systems: Used in HVAC systems for temperature and pressure monitoring.

l Machine Monitoring: Integration into CNC machines and robotic systems for feedback on operational parameters.

l Environmental Monitoring: Suitable for applications requiring the measurement of environmental parameters like temperature, humidity, and pressure.

l Energy Management: Monitoring of electrical parameters for energy efficiency and management systems.

D. Related Part Numbers of Siemens 6DD1645-0AC0

ü 6DD1645-0AB0: Similar analogue input module with slightly different specifications.

ü 6DD1645-0AD0: Alternative version with extended functionalities.

ü 6ES7 132-4BF00-0AB0: Siemens S7-1200 series module offering compatibility for similar applications.
