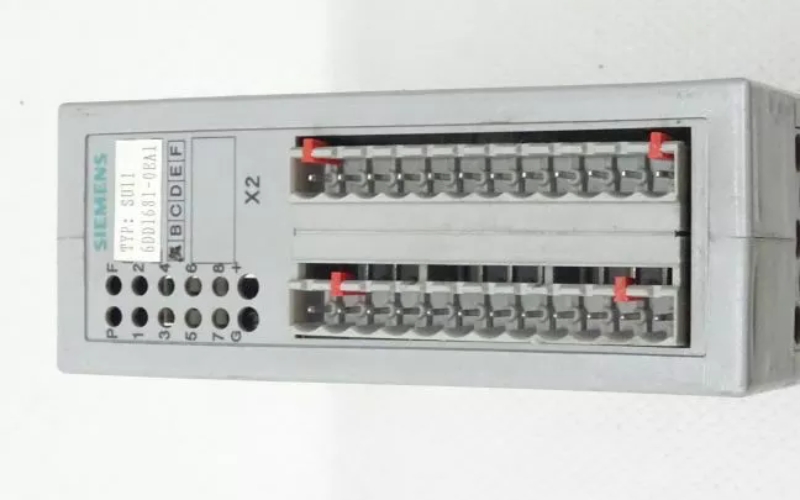

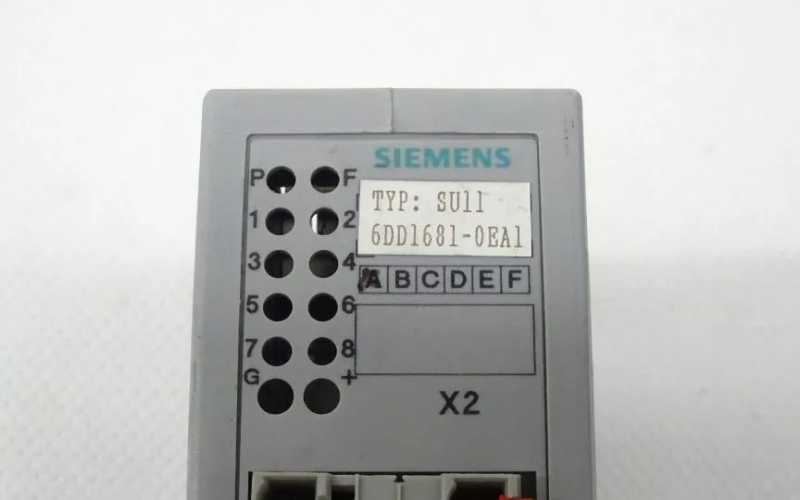

SIEMENS 6DD1681-0EA1 Communication processor

The SIEMENS 6DD1681-0EA1 is a versatile communication processor designed for robust industrial automation and control systems applications. Its advanced communication features, modular design, and extensive diagnostic capabilities make it essential for enhancing system integration and operational efficiency.

1) Technical Specifications of Siemens 6DD1681-0EA1

l Part Number: 6DD1681-0EA1

l Type: Communication processor for SIMATIC S5

l Interface:

ü It supports various communication protocols, including PPI and MPI.

ü Communication interfaces: RS-232, RS-422, and RS-485.

l Power Supply:

l Input Voltage: 24V DC.

l Power Consumption: Dependent on configuration and load.

l Operating Temperature:

l Typically ranges from 0°C to 60°C (32°F to 140°F).

l Dimensions:

l Standard dimensions designed for integration into SIMATIC S5 racks.

2) Detailed Features of Siemens 6DD1681-0EA1

a. Communication Capabilities:

Enables reliable data exchange between automation devices, such as PLCs and HMIs.

Supports both point-to-point and multi-drop configurations for network flexibility.

         b.Diagnostics:

Features comprehensive diagnostic tools to monitor communication status and troubleshoot issues efficiently.

LED indicators for real-time status monitoring.

c. Data Handling:

High-speed data processing to ensure timely communication and response.

Capable of handling multiple simultaneous connections.

d. Modular Design:

They are designed for easy installation and replacement, reducing downtime during maintenance.

Plug-and-play compatibility with existing Siemens systems.

e. Scalability:

Supports expansion in network configurations, making it suitable for growing applications.

3) Applications of Siemens 6DD1681-0EA1

ü Industrial Automation:

They are widely used in manufacturing processes for data acquisition and machine control.

ü Process Control:

Essential in industries such as chemical processing, food and beverage, and oil and gas for real-time monitoring.

ü Building Management Systems:

It can be integrated into smart building solutions for energy management and automation.

ü Data Acquisition Systems:

Facilitates efficient collection and management of data from various sensors and devices.

4) Related Part Numbers of Siemens 6DD1681-0EA1

l 6DD1681-0EA0: A similar communication processor with slight variations in features.

l 6DD1681-0EA2: An upgraded version with enhanced capabilities or specifications.
