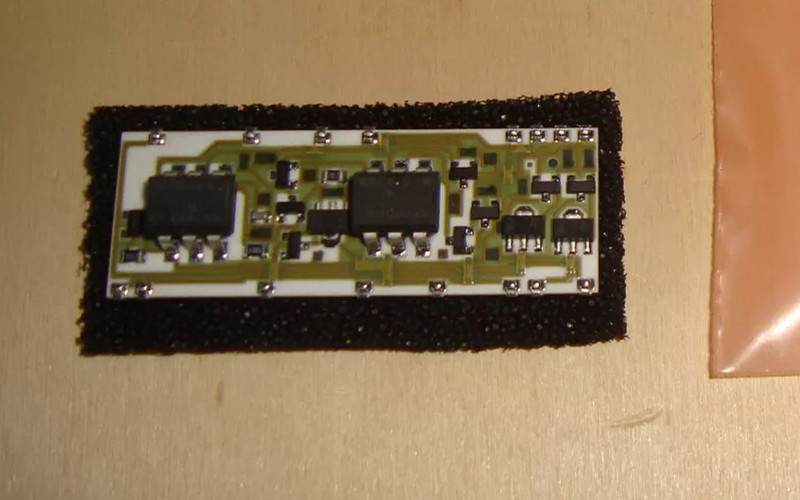

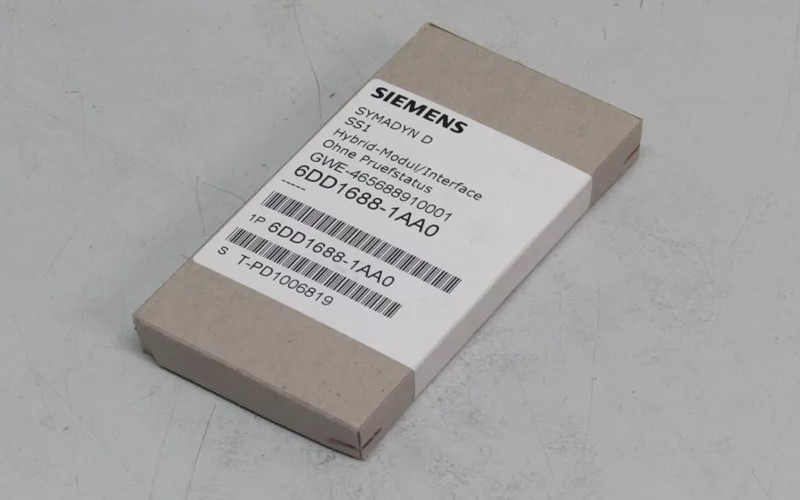

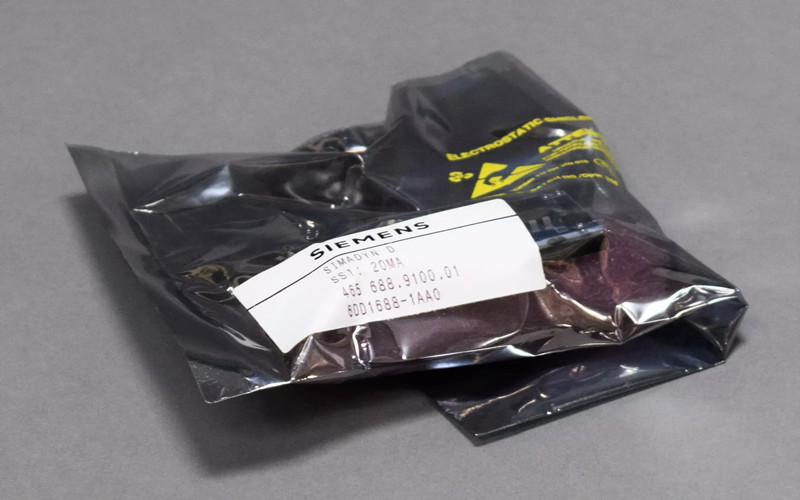

Siemens 6DD1688-1AA0 Module

The Siemens 6DD1688-1AA0 module is part of the Siemens SIMATIC TDC (Technology and Drive Control) product line, a high-performance control system designed for complex automation and drive applications. This model is engineered to provide advanced data processing capabilities, real-time control, and high reliability for demanding industrial environments.

1) Technical Specifications of Siemens 6DD1688-1AA0

l Model Number: 6DD1688-1AA0

l Series: SIMATIC TDC

l Manufacturer: Siemens

l Function: Input/Output Module

l Compatibility: SIMATIC TDC Automation System

l Dimensions: Standard Siemens module size

l Weight: Approx. 0.5 kg

l Power Supply Requirements: Supplied through the SIMATIC rack

l Operating Temperature: 0°C to +60°C (standard industrial temperature range)

l Storage Temperature: -25°C to +70°C

l Mounting Type: Rack-mounted on a standard Siemens TDC rack

2) Detailed Features of Siemens 6DD1688-1AA0

l High-Speed Processing

Equipped with high-performance processing capabilities, the 6DD1688-1AA0 supports real-time data acquisition and control, essential for applications requiring precise, high-speed responses.

l Flexible Configuration

This module can be configured for various input/output operations, making it adaptable to multiple industrial automation needs. It offers customizable functionality, meeting diverse application demands.

l Reliable Data Transfer

The module provides reliable and accurate data transfer across the TDC system, ensuring that all automation processes are synchronized and reducing latency in data transmission.

l Robust Design

Engineered for industrial environments, the 6DD1688-1AA0 has a durable structure designed to withstand harsh conditions, including fluctuations in temperature and power.

l Integrated Diagnostics

This module supports self-diagnostic features, enabling continuous monitoring of operational health. It can detect and report errors promptly, helping to maintain system integrity and reduce downtime.

l High Compatibility

Fully compatible with Siemens TDC systems, this module can be easily integrated with other SIMATIC components, enhancing its versatility within an industrial control environment.

3) Applications of Siemens 6DD1688-1AA0

The Siemens 6DD1688-1AA0 module is well-suited for complex automation and control tasks across various industrial sectors, including:

ü Steel and Metal Processing: Controlling rolling mills, processing lines, and other metal-forming equipment.

ü Energy and Utilities: Used in turbine control systems and energy distribution automation.

ü Chemical and Petrochemical Plants: Ideal for controlling reactors, distillation columns, and other high-precision processes.

ü Automotive and Manufacturing: Enables reliable automation of assembly lines and other manufacturing processes requiring precise control.

ü Water Treatment Facilities: Efficiently manages water treatment plants' pumping, filtration, and chemical dosing processes.

4) Related Part Numbers of Siemens 6DD1688-1AA0

For complementary or related parts in the Siemens TDC family, consider the following modules:

l 6DD1681-0BA0 – TDC Processor Module for advanced data handling

l 6DD1601-0AD1 – Analog Input Module for TDC systems

l 6DD1606-1AB0 – Communication Module for networked control systems

l 6DD1607-0EA0 – Digital Output Module for TDC systems

l 6DD1682-0BC0 – Auxiliary Power Supply for high-demand modules

l 6DD1681-0EK0 – TDC Memory Module for extended data storage needs
