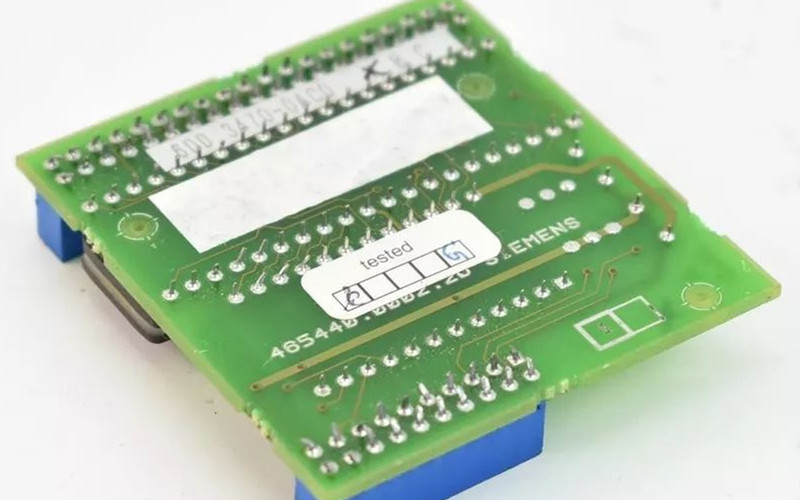

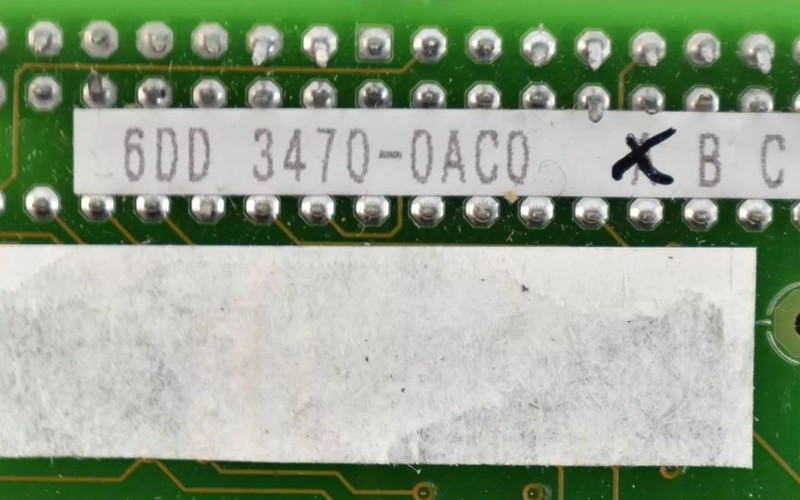

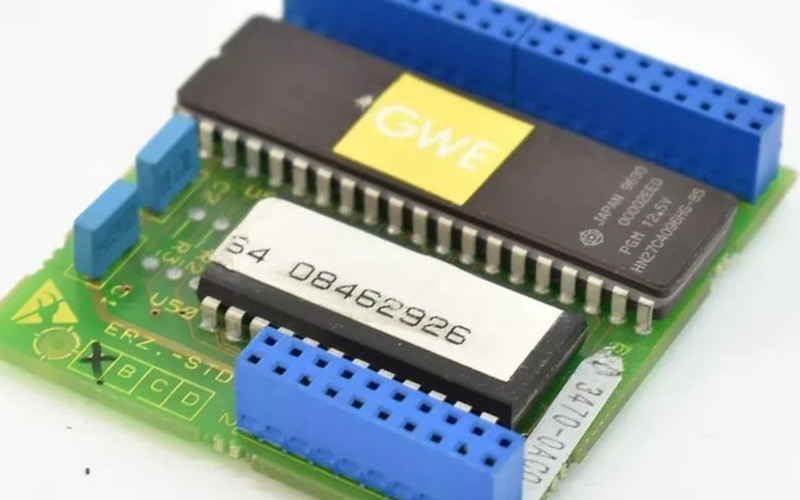

Siemens 6DD3470-0AC0 SIMATIC S5 Synchronization Module

The Siemens 6DD3470-0AC0 is a high-performance synchronization module designed for the SIMATIC S5 and PCS7 automation systems. It is ideal for applications that require precise synchronization and control in distributed automation environments. The module is reliable, durable, and optimized for integration within Siemens' advanced automation frameworks.

1. Technical Specifications of Siemens 6DD3470-0AC0

l Module Type: Synchronization Module

l Product Family: SIMATIC S5/PCS7

l Operating Voltage: 24 V DC

l Power Consumption: Approx. 2W

l Input Signals: External clock synchronization input, digital signal compatibility

l Output Signals: Synchronization signal output for downstream devices and systems

l Mounting Type: Rack-mounted (standard SIMATIC system racks)

l Temperature Range: -20°C to +60°C

l Dimensions: 125 x 40 x 120 mm (H x W x D)

l Weight: Approx. 250 grams

2. Detailed Features of Siemens 6DD3470-0AC0

a. High Precision Synchronization: Ensures accurate timekeeping and coordination between system modules, enhancing overall system performance in distributed automation tasks.

b. Integrated Diagnostics: Features built-in diagnostics for monitoring operational health, enabling quick troubleshooting and reducing system downtime.

c. Versatile Connectivity: It is compatible with SIMATIC S5 and PCS7 environments, making it flexible for various Siemens automation systems.

d. Easy Installation: It is designed for standard SIMATIC racks, allowing seamless integration into existing setups without additional hardware requirements.

e. Durable Design: Built to withstand industrial environments with robust materials that highly resist dust, heat, and vibration.

3. Applications of Siemens 6DD3470-0AC0

ü Industrial Automation: Used in manufacturing plants and process industries to synchronize distributed control systems, ensuring coordinated performance across multiple components.

ü Energy Management: Applied in energy facilities, precise timing is essential for synchronized operation between generation, transmission, and distribution systems.

ü Transportation: Deployed in transportation infrastructure to coordinate signalling and control systems, ensuring safe and efficient operation.

ü Chemical and Petrochemical: Provides synchronization within process control applications, enabling accurate and stable chemical production and refining processes.

4. Related Part Numbers of Siemens 6DD3470-0AC0

l 6DD1606-1AB0: Digital output module, compatible with PCS7 systems for expanded control capabilities.

l 6DD1660-0AH1: Interface module for SIMATIC systems, offering additional connectivity for distributed applications.

l 6DD3471-0AC0: A similar synchronization module suited for applications requiring additional synchronization channels.

l 6DD1681-0AE2: Centralized processing unit for SIMATIC PCS7, compatible with the 6DD3470-0AC0 for complex automation networks.

l 6DD2920-0BB0: The expansion module for SIMATIC systems provides additional input/output channels for broader system integration.
