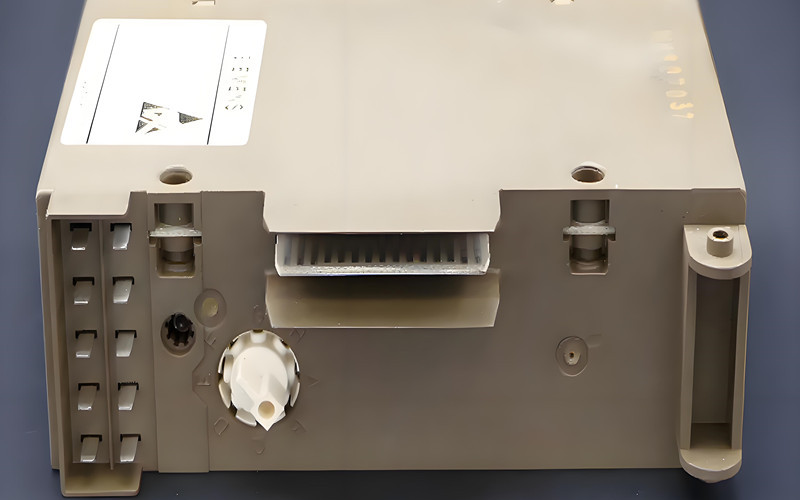

Siemens 6ES5420-8MA11 Digital Output Module

Siemens 6ES5420-8MA11 Digital Output Module

The Siemens 6ES5420-8MA11 provides robust, reliable relay output functionality, making it ideal for legacy systems and industrial applications requiring dependable digital output control.

Short Description:

Brand: SIEMENS

Item Number: Siemens 6ES5420-8MA11 Digital Output Module

Payment by: T/T

Warranty: 1 year

Shipping from: Xiamen City, China

Technical Specifications of Siemens 6ES5420-8MA11 Digital Output Module are:

Product Series**: SIMATIC S5 PLC

Module Type**: Digital Output Module

Output Channels**: 8 relay outputs

Output Voltage**: - 24V DC - 48V DC - 60V DC - 120V AC - 230V AC

Output Current**: - Maximum 2A per channel

Output Type**: Relay-based (mechanical switching)

Switching Frequency**: Depends on load characteristics, typically low to medium Frequency.

Electrical Isolation**: Galvanic Isolation between the control circuit and outputs for improved safety and reliability

Connection Type**: Screw terminals for secure and reliable connections

Mounting Type**: Standard mounting in SIMATIC S5 racks

Dimensions**: Compact design, compatible with standard S5 chassis

Power Dissipation**: Low, varies with the output load

Operating Temperature Range**: - 0°C to +55°C

Storage Temperature Range**: - -40°C to +70°C

Certifications**: - Meets Siemens and international industrial automation standards (e.g., CE, UL)

Weight**: Approx. 0.5 kg

Compatibility**: Fully compatible with Siemens S5 PLC systems

Siemens 6ES5420-8MA11 Digital Output Module can be widely used on occasions as below:

Industrial Automation**: - Used for controlling machinery and processes where digital output control is required, such as actuators, solenoids, and motors in automated systems.

Manufacturing Systems**: - Ideal for controlling discrete automation tasks in assembly lines, robotic systems, and packaging machines.

Process Control**: - Widely applied in process industries such as chemical, oil and gas, and pharmaceutical manufacturing, where precise control of pumps, compressors, and valves is required.

Besides Siemens 6ES5420-8MA11 Digital Output Module, there are other part numbers under the same series in which you may be interested; please refer to the following, and please get in touch with us for more information.

6ES5430-7LA12  8 Digital Input Module (24V DC input)

6ES5470-8MA11  16 Digital Output Module (Relay outputs)

6ES5451-4UA13  16 Digital Input/Output Module (24V DC input/output)

6ES5465-8MA11  8 Analog Output Module (0-10V output)

6ES5464-8MA11  8 Analog Input Module (0-10V input)

6ES5312-5CA12   Central Processing Unit (CPU 312), for small to medium automation tasks

6ES5316-8FA12   32 Digital Input Module (24V DC input)

6ES5471-8MA12  32 Digital Output Module (Relay outputs)

6ES5941-7UA11  Power Supply Module (for S5-115U series)

6ES5462-8MA12  4 Analog Output Module (current/voltage outputs)

6ES5462-8MA12  4 Analog Output Module (current/voltage outputs)
