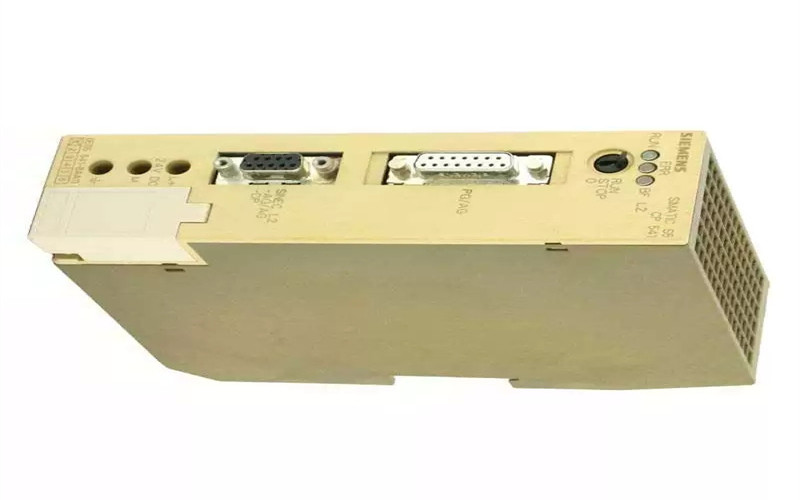

Siemens 6ES5541-8AA11 SIMATIC S5 Communication Processor Module

Siemens 6ES5541-8AA11 SIMATIC S5 Communication Processor Module

This module plays a crucial role in enabling serial communication in Siemens S5 automation systems, ensuring data can be exchanged reliably and efficiently in various industrial settings.

General Description:

Brand: SIEMENS

Item Number: Siemens 6ES5541-8AA11 SIMATIC S5 Communication Processor Module

Payment by: T/T

Warranty: 1 year

Shipping from: Xiamen City, China

Technical Specifications of Siemens 6ES5541-8AA11 SIMATIC S5 Communication Processor Module are:

Product Type: Siemens SIMATIC S5 Communication Processor Module

Series: S5

Model: 6ES5541-8AA11

Function: Communication processor (CP) module for industrial automation

Interface: Serial interface RS232C

Transmission Speed: Configurable up to 19.2 kbps

Supported Protocols: ASCII, 3964R, RK512

Connector Type: D-sub 25-pin connector for serial communication

Communication Channels: Single communication channel

Voltage Requirement: 5V DC supplied by the PLC

Current Consumption: Approximately 500 mA

Module Type: Plug-in module for SIMATIC S5 PLCs

Operating Temperature Range: 0°C to +60°C

Weight: Approximately 500 grams

Dimensions: Standard size for communication modules in S5 systems

The application of Siemens 6ES5541-8AA11 SIMATIC S5 Communication Processor Module can be widely used on:

Data Communication: Facilitates communication between the SIMATIC S5 PLC and external devices such as PCs, printers, and other automation components using serial data exchange.

Industrial Automation: Used in process control systems, factory automation, and industrial networking for managing data exchange between different automation systems.

Remote Control and Monitoring: Enables remote control and monitoring of machinery and industrial processes via serial communication protocols.

Integration with Legacy Systems: Useful for integrating legacy devices and systems that communicate via RS232C serial interfaces.

Protocol Conversion: Provides support for communication protocols like ASCII, 3964R, and RK512, which are essential for exchanging data between various automation systems in industries like manufacturing, oil and gas, and utilities.

Customized Communication Solutions: Commonly used in situations where customized communication is needed between automation controllers and external systems or machines.

In addition to the 6ES5541-8AA11 SIMATIC S5 Communication Processor Module, there are other part numbers within the same series that you might be interested in. Please refer to the list below, and feel free to contact us for more information.

6ES5531-7LA12 – Communication processor (CP) for PROFIBUS DP, used for data exchange in decentralized automation systems.

6ES5535-3KA12 – CP 535 for connecting SIMATIC S5 to local area networks (LAN) using industrial Ethernet.

6ES5536-3AA12 – CP 536, a communication module for Ethernet, allowing S5 PLC systems to connect to industrial networks.

6ES5541-4UA12 – CP 541 module with RS422/RS485 interface, used for communication in high-speed serial applications.

6ES5542-8MA11 – CP 542, supporting point-to-point communication between SIMATIC S5 and other devices.

6ES5550-3UA12 – CP 550 module, supporting high-level communication protocols such as SEND/RECEIVE for S5 systems.

6ES5563-3LA12 – CP 563 communication processor, specifically designed for communication over Siemens Industrial Ethernet.

6ES5577-0AA12 – CP 577 module, used for communication via SINEC L1, a proprietary Siemens networking protocol.
