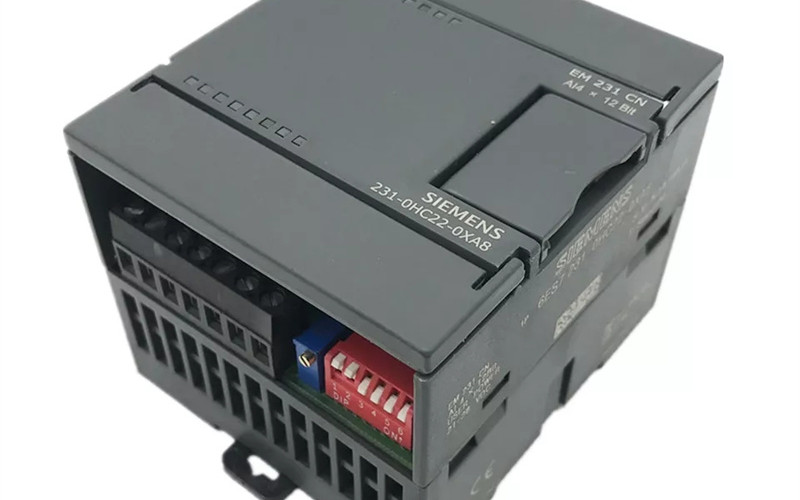

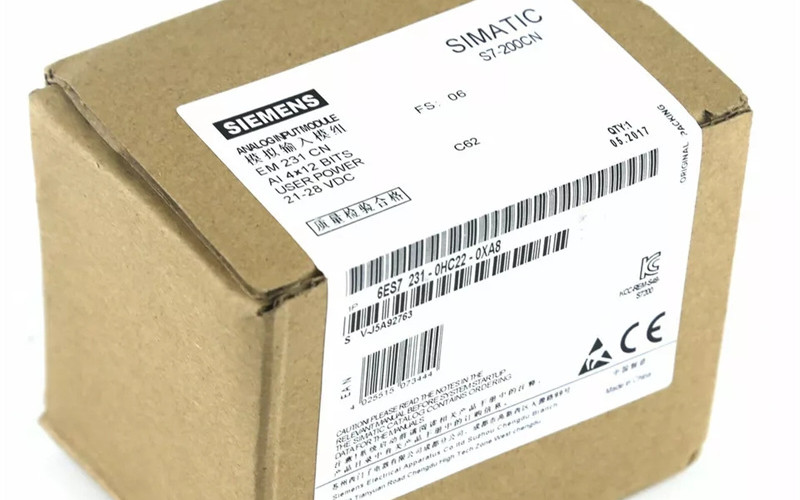

SIEMENS 6ES7231-0HC22-0XA8 analog input module

SIEMENS 6ES7231-0HC22-0XA8 analog input module

Short Description:

Brand: SIEMENS

Item Number: Siemens SIEMENS 6ES7231-0HC22-0XA8 analog input module

Payment by: T/T

Warranty: 1 year

Shipping from: Xiamen City, China

Technical Specifications of SIEMENS 6ES7231-0HC22-0XA8 analog input module are :

Part Number: 6ES7231-0HC22-0XA8

Product Type: Analog Input Module

Series: SIMATIC S7-1200

Number of Inputs: 4 (AI)

Input Range:

Voltage: ±10V, 0-10V

Current: 0-20mA, 4-20mA

Resolution:

Voltage: 14 bits + sign (±10V)

Current: 13 bits + sign (0-20mA, 4-20mA)

Conversion Time: 1 ms per channel

Accuracy:

Voltage: ±0.3% (of full-scale)

Current: ±0.2% (of full-scale)

Input Impedance:

Voltage: 1 MΩ

Current: 50 Ω

Isolation: Between channels and backplane bus (500 V AC)

Power Consumption: Max. 1W

Dimensions: 100 x 45 x 75 mm (H x W x D)

Mounting Type: DIN rail

Operating Temperature: -20 to +60°C

Storage Temperature: -40 to +70°C

Degree of Protection: IP20

Certifications: CE, UL, cULus, FM Class I Div 2

SIEMENS 6ES7231-0HC22-0XA8 analog input module can be widely used on occasions as below:

The Siemens 6ES7231-0HC22-0XA8 analog input module is typically used in industrial automation applications where precise monitoring of analog signals is required. It is part of the SIMATIC S7-1200 series, which is used for various small to medium-sized automation tasks. Key applications include:

Process Control: Monitoring and controlling temperature, pressure, flow, or other analog signals in industrial processes.

Building Automation: Used to measure and control HVAC systems, lighting systems, and other building-related analog sensors.

Machine Control: Ideal for integrating analog inputs like pressure sensors, flow meters, and more in machinery.

Factory Automation: Useful in data acquisition systems, where multiple analog sensors need to be connected for monitoring equipment performance.

Besides SIEMENS 6ES7231-0HC22-0XA8 analog input module, there are other part numbers under Siemens S7-1200 in which you may be interested; please refer to:

6ES7231-4HD32-0XB0 - 8AI (8 analog inputs) module for current/voltage input.

6ES7231-5PD32-0XB0 - 4AI module .

6ES7231-5QD32-0XB0 - 4AI module for resistance thermometers (RTD).

6ES7232-0HB22-0XA8 - 2AO (2 analog outputs) module for current/voltage output.

6ES7232-4HD32-0XB0 - 8AO module for current/voltage output.

6ES7221-1BF22-0XA8 - 8DI (8 digital inputs) module.

6ES7222-1HF22-0XA8 - 8DO (8 digital outputs) module for 24V DC.

6ES7223-1PH32-0XB0 - 16DI/16DO module (16 digital inputs and 16 digital outputs).

6EP1332-1SH71 - 24V DC/2.5A power supply for S7-1200.

6EP1333-1SH52 - 24V DC/5A power supply for S7-1200.

6ES7211-1AE40-0XB0 - CPU 1211C, 6DI/4DO, 2AI.

6ES7212-1AE40-0XB0 - CPU 1212C, 8DI/6DO, 2AI.

6ES7214-1AG40-0XB0 - CPU 1214C, 14DI/10DO, 2AI.

6ES7241-1CH32-0XB0 - RS485 communication module.

6ES7241-1AH32-0XB0 - RS232 communication module.
