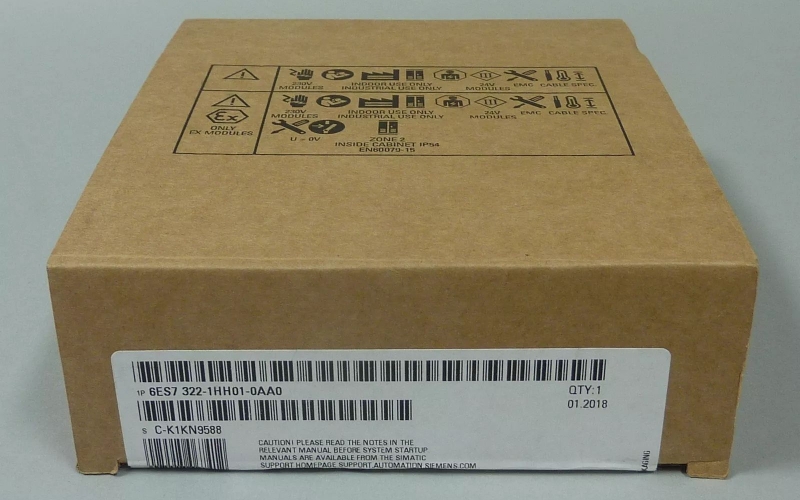

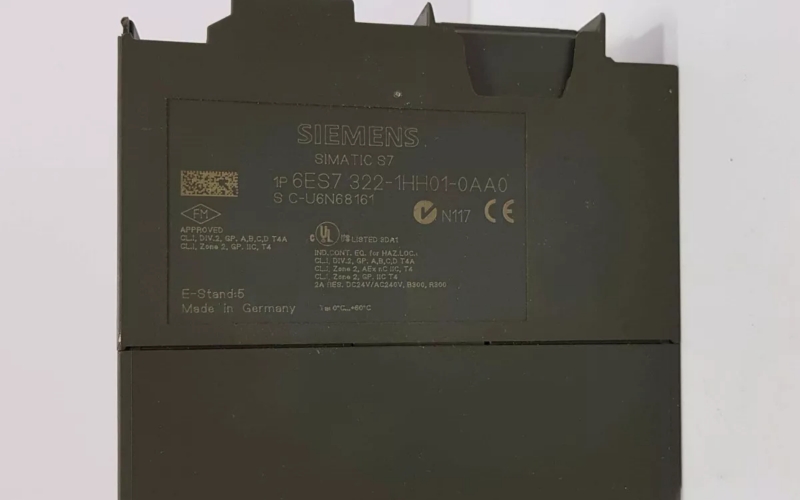

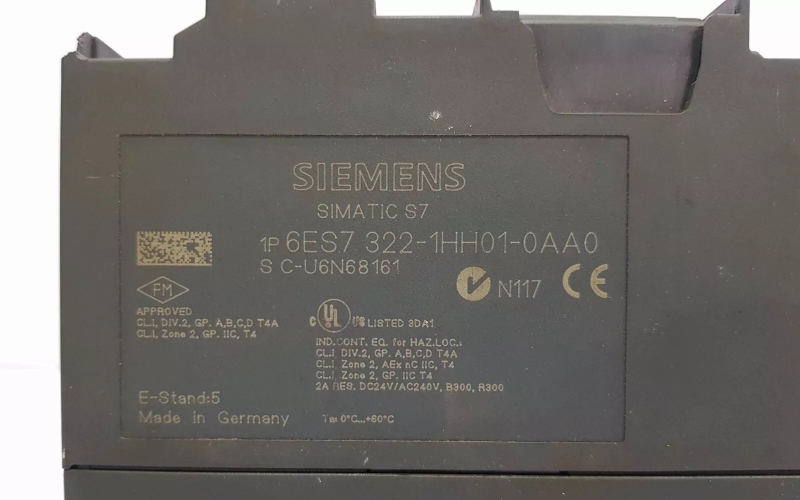

Siemens 6ES7322-1HH01-0AA0 Digital Input Output Module
General Description:
The Siemens 6ES7322-1HH01-0AA0 is an I/O module designed for use in Siemens SIMATIC S7-300 automation systems. It is part of the Siemens modular PLC platform and provides digital input and output capabilities for applications requiring high-speed data acquisition, process control, and machine automation.
General Specifications of Siemens 6ES7322-1HH01-0AA0
l Product Family: Siemens S7-300 Series
l Module Type: Digital Input/Output (I/O) Module
l Form Factor: Plug-in module for S7-300 Rack
l Operating System Compatibility: Compatible with Siemens S7-300 controllers
l Functionality: Provides digital inputs and outputs for interfacing with various field devices in industrial automation applications
l Nominal Voltage (DC): 24 V DC (for both inputs and outputs)
l Bus Connection: Profibus DP, or direct connection to S7-300 CPU via system bus
Electrical Specifications:
l Input Voltage Range:
n Rated Input Voltage: 24 V DC
n Input Voltage Range: 20.4 V to 28.8 V DC
l Output Voltage Range:
n Rated Output Voltage: 24 V DC
n Output Voltage Range: 20.4 V to 28.8 V DC
l Input Current Consumption:
n Typical Current Consumption: Approx. 40 mA (without load)
l Output Current:
n Rated Output Current per Channel: 0.5 A per channel (max.)
l Total Output Current: 4 A (max.)
l Power Consumption: 3 W (max.)
I/O Specifications:
l Number of Channels:
n Digital Inputs: 8 channels (DC)
n Digital Outputs: 8 channels (DC), relay outputs
l Input Signal Type:
n DC input, type "0" (for voltage level detection)
l Output Signal Type:
n DC output, relay contacts (for driving external devices)
l Input Characteristics:
n Input Resistance: Typically five kΩ
n Switching Threshold: 15 V DC (high), 5 V DC (low)
l Output Characteristics:
n Relay Type: Normally open (NO)
l Relay Switching Capacity: Max 230 V AC / 2 A (resistive load)
l Relay Protection: Overload and short-circuit protection
Environmental Specifications:
l Operating Temperature Range:
n Regular Operation: 0 °C to +60 °C
n Storage Temperature Range: -40 °C to +70 °C
l Humidity Range: 5% to 95% relative humidity, non-condensing
l Shock Resistance: Complies with IEC 60068-2-27 (shock: 15g, 11 ms)
l Vibration Resistance: Complies with IEC 60068-2-6 (vibration: 5 Hz to 500 Hz)
Mechanical Specifications:
l Dimensions (HxWxD): 125 mm x 40 mm x 120 mm
l Weight: Approx. 180 g
l Mounting: Rack-mounted (for S7-300 PLC system)
l Communication:
n Bus Connection Type:
l Direct connection to the S7-300 CPU system bus
l Supports Profibus DP communication for I/O data exchange
l Communication Protocol: Profibus DP
Certification and Standards Compliance:
l CE Marking: Yes
l UL Listed: Yes
l RoHS Compliant: Yes
l IEC Standards Compliance: IEC 61131-2 (for I/O modules)
Detailed Features of Siemens 6ES7322-1HH01-0AA0:
1) Modular Design:
The Siemens 6ES7322-1HH01-0AA0 is part of the flexible and scalable SIMATIC S7-300 PLC platform, which allows easy integration into existing or new automation systems. This module is designed to offer high I/O density, compactness, and ease of integration with other S7-300 modules.
2) High I/O Density:
It provides eight digital inputs and eight digital relay outputs, ensuring that the module can support a wide range of industrial applications with a relatively small footprint.
Relay Outputs for Robust Applications:
The digital relay outputs can switch 230 V AC at up to 2 A per channel, making this module suitable for controlling field devices such as motors, lights, and other AC-powered actuators in industrial automation systems.
3) Wide Voltage Range:
The module can operate with input and output voltages between 20.4 V and 28.8 V DC, offering greater flexibility for use in systems where the voltage supply may vary slightly.
Reliable Protection Features:
The module includes overload and short-circuit protection for the outputs, ensuring safe and reliable operation in harsh industrial environments.
4) Efficient Communication:
Supports communication via the Profibus DP interface, enabling high-speed data exchange with other field devices and systems in the automation network.
5) Environmental Robustness:
The Siemens 6ES7322-1HH01-0AA0 is designed to withstand extreme conditions such as temperature fluctuations, vibrations, and shocks, making it suitable for industrial applications in various settings, including factory floors, machine control systems, and process automation.
Applications of Siemens 6ES7322-1HH01-0AA0:
l Industrial Automation:
They are used in PLC-based systems to automate control processes in manufacturing plants, production lines, and other industrial operations.
l Process Control:
It is suitable for applications in the chemical, pharmaceutical, or food and beverage industries where precise digital control and monitoring are required.
l Machine Control:
It can be used to control and monitor machinery such as conveyors, pumps, motors, and actuators.
l Building Automation:
She was employed in building management systems to control HVAC, lighting, and security systems via digital I/O signals.
l Energy Management:
Suitable for controlling electrical equipment and monitoring energy usage in industrial plants, substations, or other critical infrastructure.
Related Part Numbers of Siemens 6ES7322-1HH01-0AA0:
l Siemens 6ES7322-1HH01-0AA0 – Digital Input/Output Module (8DI/8DO with relay)
l 6ES7322-1HF01-0AA0 – Digital I/O Module, variant with different relay types
l 6ES7322-1HD01-0AA0 – Digital Input/Output module with higher density
l 6ES7322-1HA01-0AA0 – Variant for use in specialized or hazardous environments
These part numbers are part of the same family of I/O modules for Siemens S7-300 PLC systems and offer variations in terms of relay type, output ratings, and I/O configurations to suit different industrial requirements.
Please refer to the file attached for the data sheet
