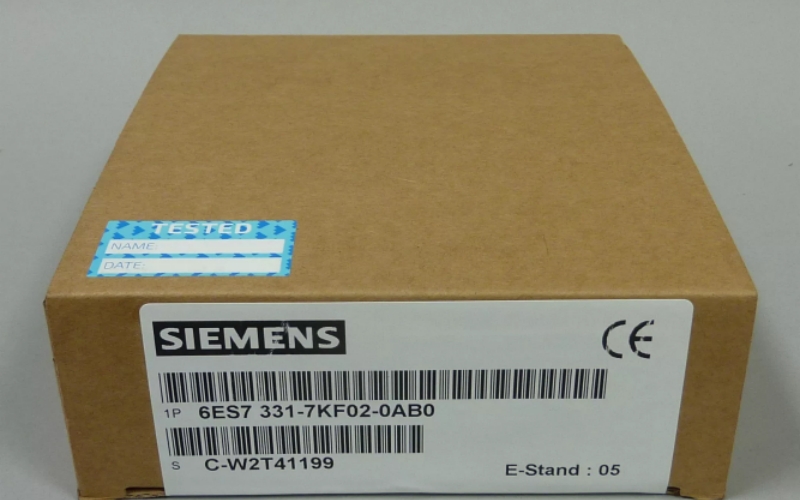

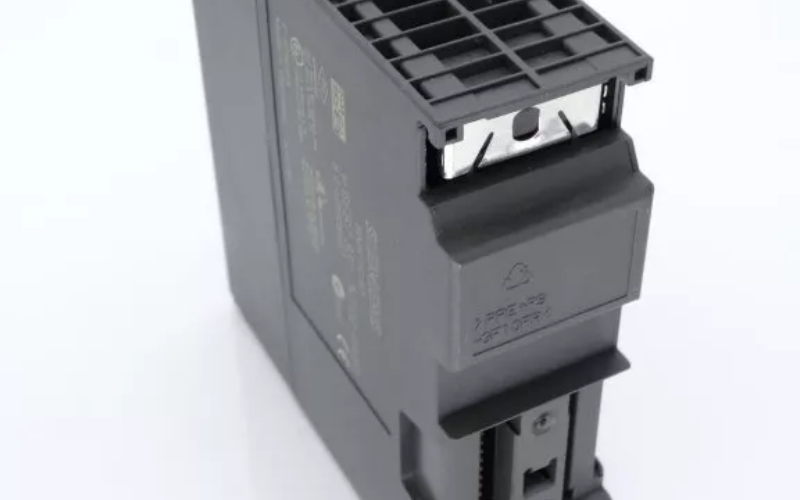

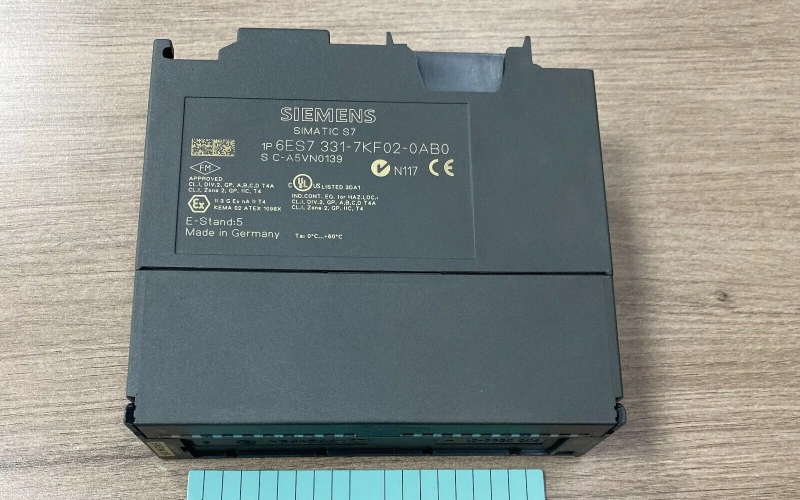

Siemens 6ES7331-7KF02-0AB0 Analog Input Output Signal Board

General Description:

The Siemens 6ES7331-7KF02-0AB0 is a Signal Board for the S7-300 modular PLC system, providing high-performance analog input and output (I/O) functionalities. It is part of the SIMATIC S7-300 series, designed for applications requiring precise signal acquisition and processing of analog values in industrial automation systems. The module allows for the integration of various analog field devices, such as sensors and actuators, with the Siemens S7-300 controller.

General Specifications of Siemens 6ES7331-7KF02-0AB0

l Product Family: Siemens S7-300 Series

l Module Type: Analog Input/Output Signal Board (S7-300 modular system)

l Part Number: 6ES7331-7KF02-0AB0

l Form Factor: Plug-in module for the Siemens S7-300 rack

l Functionality: Provides analog signal processing with 4 analog input channels and 4 analog output channels

l Bus Connection: Direct connection to the S7-300 system bus via rack-mounted connection to the S7-300 CPU

l Operating System Compatibility: Compatible with S7-300 PLC CPUs, such as S7-300, S7-400

l Certification and Compliance: CE, UL, RoHS compliant

l Electrical Specifications:

n Input Voltage Range:

u Rated Supply Voltage: 24 V DC

u Voltage Range: 20.4 V to 28.8 V DC (allowing flexibility in voltage supply)

l Power Consumption:

n Typical Power Consumption: 2.5 W (without load)

l Current Consumption:

n Input Current: 25 mA (typical)

n Output Current: Dependent on load and output configuration

l Analog I/O Specifications:

n Number of Channels:

u Analog Inputs: 4 channels (single-ended)

u Analog Outputs: 4 channels (voltage or current output)

l Input Range:

n Voltage Inputs: 0-10 V, ±10 V (configurable)

n Current Inputs: 4-20 mA

n Input Impedance: ≥ 200 kΩ for voltage inputs

l Output Range:

n Voltage Outputs: 0-10 V, ±10 V (configurable)

n Current Outputs: 0-20 mA, 4-20 mA (configurable)

n Output Load: Maximum load for voltage outputs is 1 kΩ; for current outputs, the maximum load is 500 Ω

l Resolution:

n Input Resolution: 12-bit (approx. 0.025% of the full scale)

n Output Resolution: 12-bit (approx. 0.025% of the full scale)

l Accuracy:

n Input Accuracy: ±0.5% of the full scale

n Output Accuracy: ±0.5% of the full scale

l Conversion Time:

n Analog-to-Digital Conversion: Approx. 2 ms per channel

n Digital-to-Analog Conversion: Approx. 2 ms per channel

l Galvanic Isolation: Yes, each channel is isolated from the others for improved noise immunity and safety

l Environmental Specifications:

n Operating Temperature Range:

n Normal Operation: 0 °C to +60 °C

n Storage Temperature Range: -40 °C to +70 °C

l Humidity Range: 5% to 95% relative humidity, non-condensing

l Vibration Resistance: Complies with IEC 60068-2-6 (vibration: 5 Hz to 500 Hz)

l Shock Resistance: Complies with IEC 60068-2-27 (shock: 15 g, 11 ms)

l Mechanical Specifications:

n Dimensions (HxWxD): 125 mm x 40 mm x 120 mm

l Weight: Approx. 180 g

l Mounting: Plug-in into the S7-300 rack; supports up to 8 I/O modules in a single rack

Detailed Features of Siemens 6ES7331-7KF02-0AB0:

1. Modular and Flexible Design:

The Siemens 6ES7331-7KF02-0AB0 is designed as a modular I/O board for easy integration into the S7-300 PLC system. It allows for the configuration of multiple I/O modules and ensures scalability and flexibility in the automation system.

2. High-Precision Analog Signal Processing:

The module provides precise analog signal input and output capabilities, supporting both voltage and current types. This makes it ideal for industrial applications requiring accurate signal processing, such as monitoring temperature, pressure, and flow.

3. Four Analog Channels for Input and Output:

The module offers 4 analog input channels and 4 analog output channels, each with configurable voltage (0-10 V, ±10 V) or current (4-20 mA, 0-20 mA) ranges. The ability to process multiple signals simultaneously provides flexibility in industrial applications.

4. High-Resolution and Accuracy:

With a 12-bit resolution for both inputs and outputs, the module ensures fine granularity for precise control and measurement. The accuracy of the input and output signals is within ±0.5% of the full scale, ensuring reliable data handling.

5. Fast Conversion Time:

The module offers fast analog-to-digital and digital-to-analog conversion times (approx. 2 ms per channel), providing high-speed signal processing for time-sensitive applications.

6. Galvanic Isolation:

Each channel is galvanically isolated, preventing electrical noise from affecting the signals and offering protection against voltage spikes or ground loops that could cause errors in measurement.

7. Configurable Signal Ranges:

The ability to configure voltage or current signal ranges allows for compatibility with a wide variety of field devices. Users can select the most appropriate input/output range for each application.

8. High Integration with Siemens PLCs:

The module is designed to work seamlessly with Siemens S7-300 series CPUs and other compatible components, making it easy to incorporate into existing automation setups.

Applications of Siemens 6ES7331-7KF02-0AB0:

A. Industrial Process Control:

The Siemens 6ES7331-7KF02-0AB0 is well-suited for use in applications that require the monitoring and control of analog parameters such as pressure, temperature, and flow in industries such as chemical, pharmaceutical, and food processing.

B. Automation of Measurement Systems:

This module can be used in systems that require precise analog measurements for control and monitoring, such as environmental monitoring systems, HVAC systems, and energy management.

C. Machine Automation:

The module is used in machinery that requires continuous real-time monitoring of analog signals for feedback control. For example, controlling motor speeds, valve positions, or fluid flow rates in industrial machines.

D. Test and Calibration Systems:

With its high precision and accuracy, the module can be used in test rigs or calibration systems where analog values from sensors need to be monitored or adjusted.

E. Data Acquisition Systems:

It is ideal for applications in data logging or real-time data acquisition where analog signals from external sensors are collected and processed by the PLC system for analysis and reporting.

Related Part Numbers of Siemens 6ES7331-7KF02-0AB0:

l Siemens 6ES7331-7KF02-0AB0 – Analog Signal Board, 4 Analog Inputs/Outputs (Voltage and Current)

l Siemens 6ES7331-7KF01-0AB0 – Analog Input Board (4 channels, voltage only)

l Siemens 6ES7331-7KF03-0AB0 – Analog Output Board (4 channels, voltage or current)

l Siemens 6ES7331-7KF04-0AB0 – Extended analog I/O board with higher input/output channels (8 channels)

l Siemens 6ES7331-7KF05-0AB0 – Analog I/O module with higher resolution and more features for specialized applications

These related part numbers offer variants in terms of I/O channels, signal types, and other configurations, allowing for tailored solutions depending on specific application needs.
