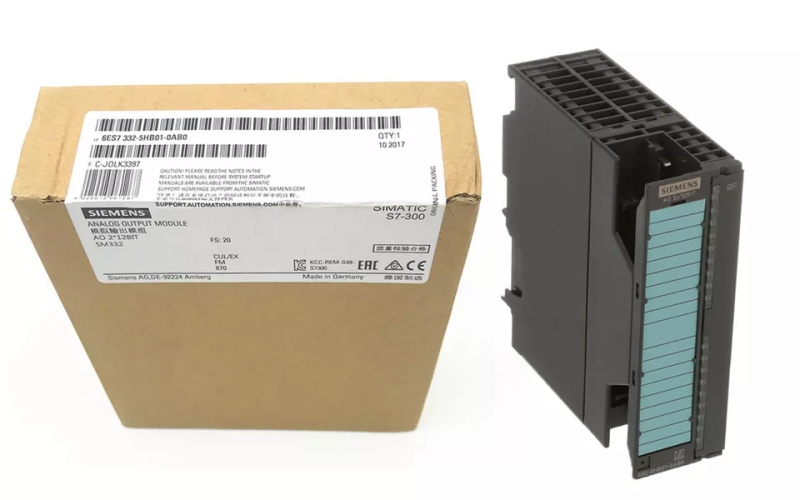

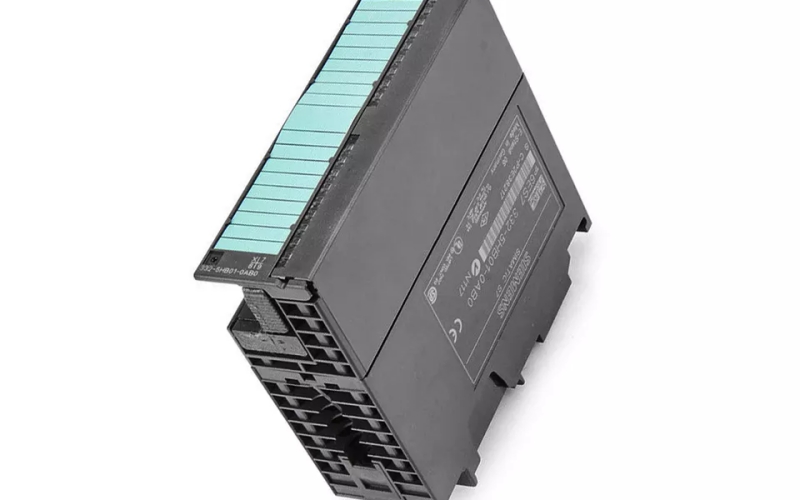

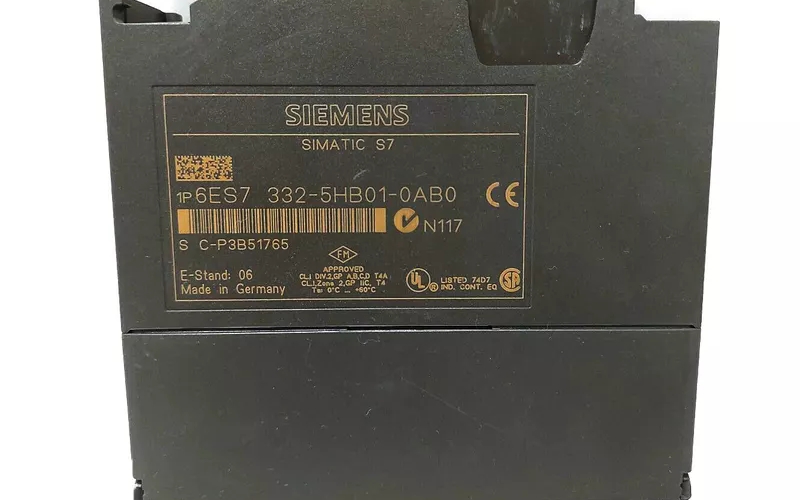

Siemens 6ES7332-5HB01-0AB0 Analog Input Output Module

Overview:

The Siemens 6ES7332-5HB01-0AB0 is an Analog Input/Output Module designed for the S7-300 series of programmable logic controllers (PLCs). It is part of Siemens' SIMATIC S7-300 modular PLC system and provides essential analog I/O functions, ideal for integrating sensors and actuators that require analog signal processing in industrial automation systems.

This module offers 16 analog input channels and 16 analog output channels, enabling precise data acquisition and control of a wide variety of industrial devices, such as sensors, transducers, actuators, and other equipment requiring analog interfacing. The module supports both voltage and current signals and offers fast and high-accuracy signal processing capabilities.

General Specifications of Siemens 6ES7332-5HB01-0AB0:

l Product Family: Siemens S7-300 Series

l Module Type: Analog Input/Output (I/O) Module

l Part Number: 6ES7332-5HB01-0AB0

l Functionality: 16 Analog Inputs / 16 Analog Outputs (Voltage/Current)

l Module Type: Signal board for S7-300 PLC system (rack-mounted)

l Operating System Compatibility: Compatible with S7-300 PLC CPUs, such as the S7-300 series, S7-400 series

l Certification: CE Marked, UL Listed, RoHS Compliant

l Operating Temperature Range: 0 °C to +60 °C

l Storage Temperature Range: -40 °C to +70 °C

l Relative Humidity: 5% to 95% non-condensing

l Mounting: For S7-300 rack (requires S7-300 CPU)

Electrical Specifications:

l Rated Supply Voltage: 24 V DC

l Voltage Range: 20.4 V to 28.8 V DC (tolerable input voltage)

l Power Consumption:

n Typical Power Consumption: 4.5 W

n Maximum Power Consumption: 5.5 W

l Current Consumption:

n Typical Current Consumption: 50 mA (without load)

l Signal Type:

n Analog Inputs: Voltage (0-10 V, ±10 V) or Current (4-20 mA)

n Analog Outputs: Voltage (0-10 V, ±10 V) or Current (4-20 mA, 0-20 mA)

l Input Impedance:

n Voltage Inputs: ≥ 200 kΩ

n Current Inputs: < 10 Ω

l Output Load:

n Voltage Outputs: Max 1 kΩ per channel

n Current Outputs: Max 500 Ω per channel

Analog I/O Specifications:

l A number of Analog Channels:

l Analog Inputs: 16 channels (single-ended)

l Analog Outputs: 16 channels (single-ended)

l Input Range:

n Voltage Inputs: 0-10 V, ±10 V (configurable)

n Current Inputs: 4-20 mA, 0-20 mA (configurable)

l Output Range:

n Voltage Outputs: 0-10 V, ±10 V (configurable)

n Current Outputs: 0-20 mA, 4-20 mA (configurable)

l Resolution:

n Input Resolution: 12-bit (approx. 0.025% of the full scale)

n Output Resolution: 12-bit (approx. 0.025% of the full scale)

l Accuracy:

n Input Accuracy: ±0.5% of the full scale

n Output Accuracy: ±0.5% of the full scale

l Conversion Time:

n Analog-to-Digital Conversion Time: Approx. 2 ms per channel

n Digital-to-Analog Conversion Time: Approx. 2 ms per channel

l Galvanic Isolation: Yes, between each input and output channel for improved signal integrity and safety

Mechanical Specifications:

l Dimensions (H x W x D):

l Height: 125 mm

l Width: 40 mm

l Depth: 120 mm

l Weight: Approx. 300 g

l Mounting Type: Rack-mounted (for integration with the S7-300 rack system)

l Rack Compatibility: Can be installed in an S7-300 CPU rack

l Environmental Specifications:

n Operating Temperature Range: 0 °C to 60 °C (32 °F to 140 °F)

n Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

l Humidity: 5% to 95%, non-condensing

l Vibration Resistance: IEC 60068-2-6 (vibration: 5 Hz to 500 Hz)

l Shock Resistance: IEC 60068-2-27 (shock: 15g for 11 ms)

Detailed Features of Siemens 6ES7332-5HB01-0AB0:

1) High-Density Analog I/O:

The Siemens 6ES7332-5HB01-0AB0 module offers 16 analog inputs and 16 analog outputs, providing high-density analog I/O capabilities for applications requiring significant amounts of analog signal processing in a compact space.

2) Flexible Signal Configuration:

The module supports voltage (0-10 V, ±10 V) and current (4-20 mA, 0-20 mA) input and output types, allowing for easy integration with a wide variety of field devices such as sensors, transducers and actuators.

3) High-Resolution and Accuracy:

The module ensures precise control and measurement with 12-bit resolution for both inputs and outputs. This provides 0.025% of the full scale, guaranteeing accurate signal representation and control in real-time applications.

4) Fast Signal Conversion:

The module features fast analog-to-digital (2 ms per channel) and digital-to-analog conversion (2 ms per channel), ensuring quick response times suitable for time-sensitive applications like process control, motion control, and data acquisition.

5) Galvanic Isolation:

Each channel is galvanically isolated, reducing the impact of electrical noise and ensuring reliable operation in noisy industrial environments. This isolation provides additional protection against voltage spikes and ground loops.

6) Robust Performance in Harsh Environments:

The module is designed to perform reliably under challenging conditions, including extreme temperature variations, humidity, and vibrations. This makes it suitable for industrial settings like manufacturing plants, energy management, and process automation.

7) Seamless Integration with Siemens S7-300:

As a native S7-300 module, the 6ES7332-5HB01-0AB0 integrates seamlessly into the Siemens PLC architecture, simplifying installation and configuration within existing systems.

Applications of Siemens 6ES7332-5HB01-0AB0 :

l Industrial Process Control:

Suitable for monitoring and controlling analog signals such as temperature, pressure, and flow in chemical, pharmaceutical, and petrochemical industries where precise process control is essential.

l Machine Automation:

The module can be used to control analog devices in machines, such as variable-speed drives, actuators, and valves, ensuring accurate and real-time feedback control in packaging, assembly, and material handling systems.

l Test and Measurement Systems:

Ideal for test benches or calibration systems where multiple analog signals must be acquired and processed simultaneously, such as in the automotive or aerospace industries.

l Energy Management:

It can be used in energy monitoring systems to track analog parameters such as voltage, current, and power and to control energy-consuming devices.

l Building Automation:

They are employed in HVAC systems, lighting control, and other building management systems where analog inputs (e.g., temperature sensors, humidity sensors) and outputs (e.g., controlling fan speed or dimming lights) are necessary.

l Data Acquisition and Remote Monitoring:

The module is well-suited for data logging and remote monitoring applications where analog sensor data is collected and transmitted to a central system for analysis and reporting.

Related Part Numbers of Siemens 6ES7332-5HB01-0AB0 :

l Siemens 6ES7332-5HB01-0AB0 – Analog Input/Output Module (16 Inputs, 16 Outputs, Voltage/Current)

l 6ES7332-5HB02-0AB0 – Analog I/O Module, similar with different input/output configurations

l 6ES7332-5HB03-0AB0 – Higher channel density with more input/output points

l 6ES7332-5HB04-0AB0 – Specialized version with enhanced resolution or accuracy

l 6ES7332-5HB05-0AB0 – Compact version with fewer input/output channels (e.g., eight inputs, eight outputs)

These related part numbers represent similar or enhanced models within the Siemens S7-300 series, offering different configurations for I/O requirements, and are suitable for specific industrial needs.
