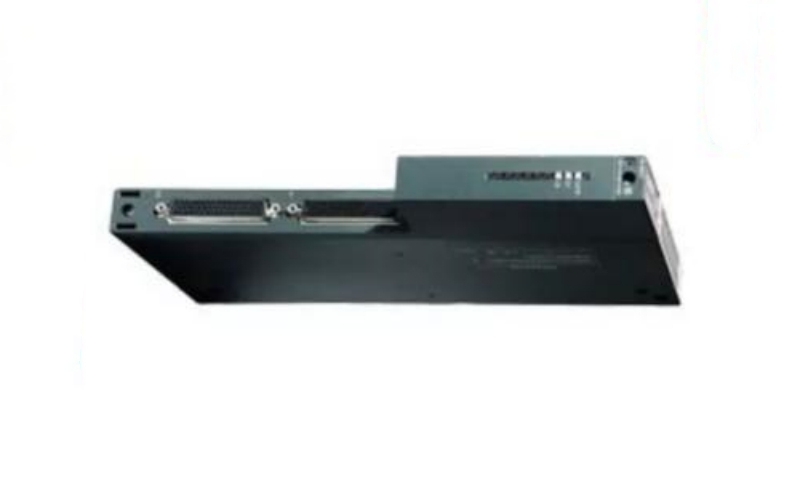

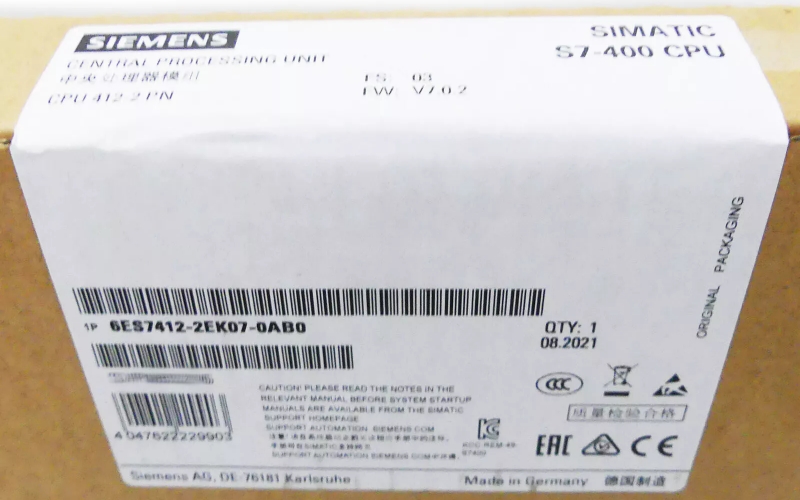

Siemens 6ES7412-2EK07-0AB0 Central Processing Unit Module

Technical Specifications of Siemens 6ES7412-2EK07-0AB0

l Product Name: Siemens 6ES7412-2EK07-0AB0

l Product Type: Central Processing Unit (CPU) Module

l Series: Simatic S7-400

l CPU Model: CPU 412-2

l Processor Speed: 48 MHz

l RAM: 128 KB

l Power Supply: 5V DC, with an integrated backup battery

l Interfaces: MPI (Multipoint Interface) and PROFIBUS DP

l Programming Languages: Ladder Logic, Function Block Diagram, Structured Text

l Cycle Time: 0.1 ms per 1,000 operations

l Mounting Type: Rack-mountable

l Dimensions: 290 x 219 x 56 mm (H x W x D)

l Weight: Approximately 1 kg

Detailed Features of Siemens 6ES7412-2EK07-0AB0

A. Optimized for Medium-Complexity Applications:

The Siemens 6ES7412-2EK07-0AB0 CPU offers a robust solution for managing automation tasks in medium-complexity systems. It provides reliable control at an attractive price-to-performance ratio.

B. High Data Processing Speed:

Equipped with a 48 MHz processor, the module achieves cycle times as low as 0.1 ms per 1,000 operations, making it suitable for processes requiring fast response times and efficient data handling.

C. Flexible Communication Interfaces:

Featuring both MPI and PROFIBUS DP interfaces, the CPU integrates seamlessly with Siemens and third-party devices across industrial networks, allowing for scalable expansion and flexible deployment.

D. Enhanced System Stability:

The CPU includes an integrated battery for data retention during power interruptions, ensuring consistent system stability and data protection across various operational environments.

E. User-Friendly Programming Options:

It supports multiple programming languages—ladder Logic, Function Block Diagram, and Structured Text—catering to different programming preferences and enhancing usability.

Applications of Siemens 6ES7412-2EK07-0AB0

The Siemens 6ES7412-2EK07-0AB0 CPU is well-suited for medium-complexity automation applications, such as:

l Manufacturing Processes: Effective for managing conveyor systems, batch production, and quality control.

l Building Management Systems: Ideal for monitoring HVAC systems, lighting, and access control in extensive facilities.

l Industrial Processing: This is commonly used in sectors like food and beverage, pharmaceuticals, and packaging to handle automation tasks with moderate complexity.

l Utility Systems are useful in power distribution, water treatment, and similar infrastructure that require reliable control and monitoring.

Related Part Numbers of Siemens 6ES7412-2EK07-0AB0

To complete the automation setup, the Siemens 6ES7412-2EK07-0AB0 CPU module pairs well with the following related components. These parts enhance system capabilities, making the S7-400 series adaptable to various industrial automation needs.

l 6ES7400-1JA01-0AA0: Rack for S7-400 series modules

l 6ES7405-0RA02-0AA0: Power Supply Module, providing stable power

l 6ES7431-1KF10-0AB0: Analog Input Module for data collection

l 6ES7432-1HF00-0AB0: Analog Output Module for control applications

l 6ES7421-1BL01-0AA0: Digital Input Module

l 6ES7422-1BL00-0AA0: Digital Output Module

l 6ES7403-1TA01-0AA0: Interface module for additional communication support
