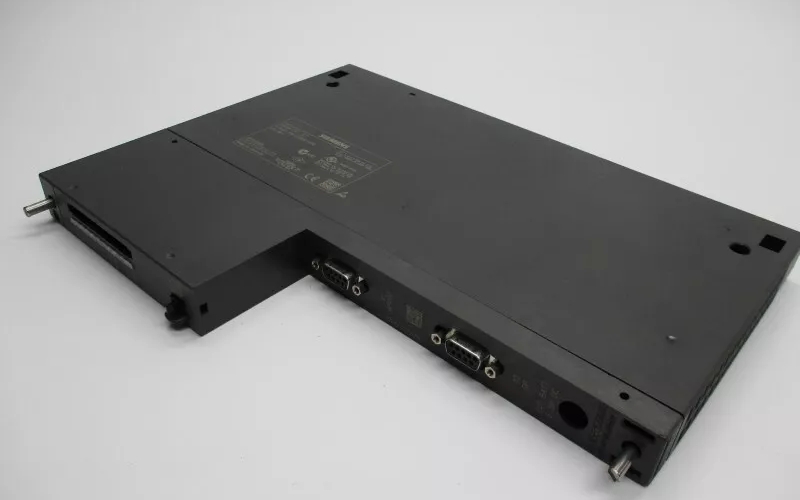

Siemens 6ES7416-2XN05-0AB0 Central Processing Unit Module

Technical Specifications of Siemens 6ES7416-2XN05-0AB0

l Product Name: Siemens 6ES7416-2XN05-0AB0

l Product Type: Central Processing Unit (CPU) Module

l Series: Simatic S7-400

l CPU Model: CPU 416-2

l Processor Speed: 100 MHz

l RAM: 4 MB

l Cycle Time (per 1,000 operations): 0.05 ms

l Interfaces: MPI, PROFIBUS DP, and Industrial Ethernet

l Programming Languages: Ladder Logic, Function Block Diagram, Structured Text

l Power Supply Requirement: 5V DC with integrated battery backup

l Dimensions: 290 x 219 x 56 mm (H x W x D)

l Weight: Approximately 1.2 kg

l Mounting Type: Rack-mountable

Detailed Features of Siemens 6ES7416-2XN05-0AB0

(1) High Processing Power for Demanding Applications:

Equipped with a 100 MHz processor and a fast 0.05 ms cycle time, the Siemens 6ES7416-2XN05-0AB0 CPU handles large-scale, complex automation tasks efficiently, making it ideal for critical industrial applications.

(2) Large Memory Capacity:

With 4 MB of RAM, this CPU supports extensive programs and data requirements, providing ample memory for high-level automation processes and real-time data processing.

(3) Versatile Communication Interfaces:

The CPU includes MPI, PROFIBUS DP, and Industrial Ethernet interfaces, enabling connectivity across diverse industrial networks, facilitating seamless device integration, and supporting flexible and scalable system architecture.

(4) Reliable Data Retention and System Stability:

The integrated battery backup protects against data loss during power interruptions, maintaining system stability and data integrity in various operational environments.

(5) Flexible Programming Options:

It supports Ladder Logic, Function Block Diagrams, and Structured Text, offering flexibility in programming approaches to accommodate different engineering requirements and preferences.

Applications of Siemens 6ES7416-2XN05-0AB0

The Siemens 6ES7416-2XN05-0AB0 CPU is designed for complex automation and control systems, such as:

² High-Speed Manufacturing: Suitable for precision control in automotive, electronics, and advanced manufacturing sectors where rapid response and high processing power are critical.

² Process Industries: Used in chemical, oil & gas, and pharmaceuticals for reliable and continuous control in complex, safety-critical processes.

² Infrastructure Automation: Ideal for managing extensive automation systems in water treatment, power distribution, and other utility infrastructures.

² Advanced Building Automation: Efficient for handling large-scale HVAC, lighting, and security systems in commercial and industrial buildings.

Related Part Numbers of Siemens 6ES7416-2XN05-0AB0

To optimize and expand the functionality of the Siemens 6ES7416-2XN05-0AB0 CPU, the following related components are commonly used. These related parts work in synergy with the 6ES7416-2XN05-0AB0 to create a comprehensive and adaptable automation system suitable for high-demand industrial environments.

l 6ES7400-1JA01-0AA0: Rack for mounting S7-400 series modules

l 6ES7405-0RA02-0AA0: Power Supply Module for stable power delivery

l 6ES7431-1KF10-0AB0: Analog Input Module for data acquisition

l 6ES7432-1HF00-0AB0: Analog Output Module for precise control

l 6ES7421-1BL01-0AA0: Digital Input Module for handling digital signals

l 6ES7422-1BL00-0AA0: Digital Output Module for digital control outputs

l 6ES7403-1TA01-0AA0: Interface module to enhance connectivity
