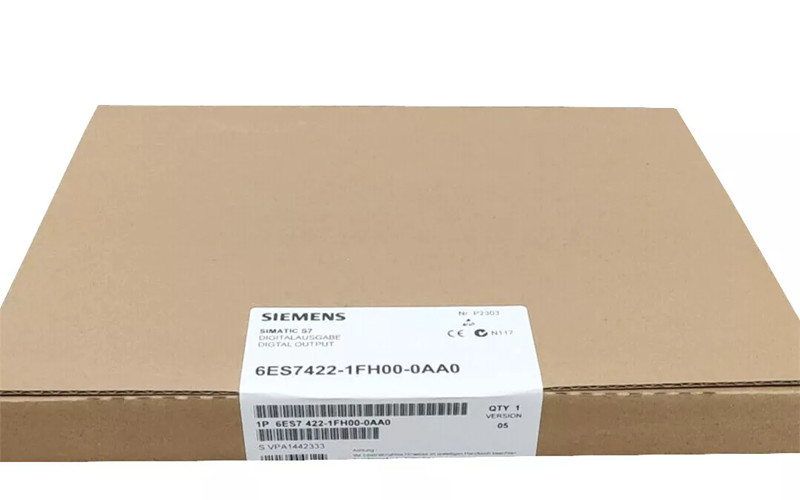

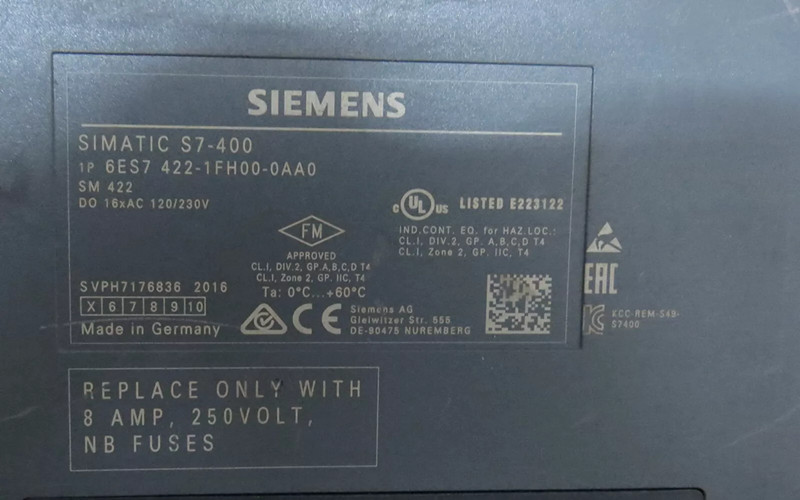

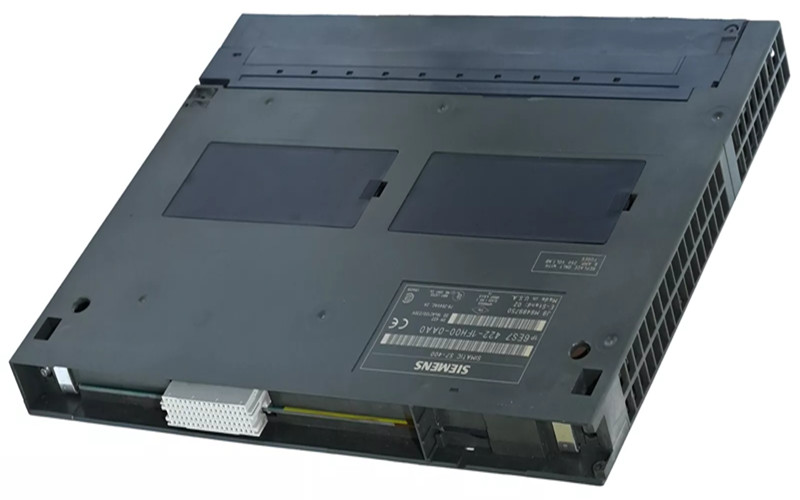

SIEMENS 6ES7422-1FH00-0AA0 Digital Output Module

Technical Specifications of SIEMENS 6ES7422-1FH00-0AA0

l Model Number: SIEMENS 6ES7422-1FH00-0AA0

l Type: Digital Output Module

l Series: SIMATIC S7-400

l Voltage Output Range: 24V DC

l Number of Outputs: 16 isolated channels

l Output Type: Digital

l Output Current: 0.5A per channel

l Isolation Voltage: 500V AC (output to ground)

l Current Consumption: Approx. 150 mA (at 24V DC)

l Response Time: Approximately 0.5 ms

l Dimensions (H x W x D): 290 x 25 x 210 mm

l Weight: 0.5 kg

l Certifications: CE, UL, CSA

l Operating Temperature Range: -25°C to +60°C

l Storage Temperature Range: -40°C to +70°C

l Humidity Tolerance: 5-95%, non-condensing

Detailed Features of SIEMENS 6ES7422-1FH00-0AA0

A. Industrial-grade Reliability: Built for harsh environments, this module ensures consistent performance across 16 channels, each supporting isolated 24V DC digital outputs.

B. Fast Signal Output Processing: A quick 0.5 ms response time allows precise and immediate control, essential for high-speed automation systems.

C. High Output Capacity: Each output can handle up to 0.5A, accommodating various load requirements in automation setups.

D. Enhanced Electrical Safety: Equipped with 500V AC isolation to protect against voltage spikes and improve operational safety.

Applications of SIEMENS 6ES7422-1FH00-0AA0

The Siemens 6ES7422-1FH00-0AA0 Digital Output Module is ideal for diverse industrial applications, such as:

Factory Automation: Used for controlling actuators, lights, alarms, and other output devices in production lines.

l Process Automation is essential for managing digital outputs in sectors such as oil and gas, chemical processing, and pharmaceuticals.

l Building Automation: Enables control over building management systems like HVAC, lighting, and access controls.

l Power Utilities: Deployed utility and power systems to control digital signals and manage operational equipment safely.

Related Part Numbers of SIEMENS 6ES7422-1FH00-0AA0

l 6ES7422-1BL00-0AA0: A digital output module with similar specifications in the SIMATIC S7-400 series.

l 6ES7422-1BH00-0AA0: An alternative model with slightly varied configuration options for specific applications.

l 6ES7422-1FH10-0AA0: Another S7-400 output module variant offering comparable features.

l 6ES7422-1GH00-0AA0: A digital output module with enhanced performance for high-demand automation environments.
