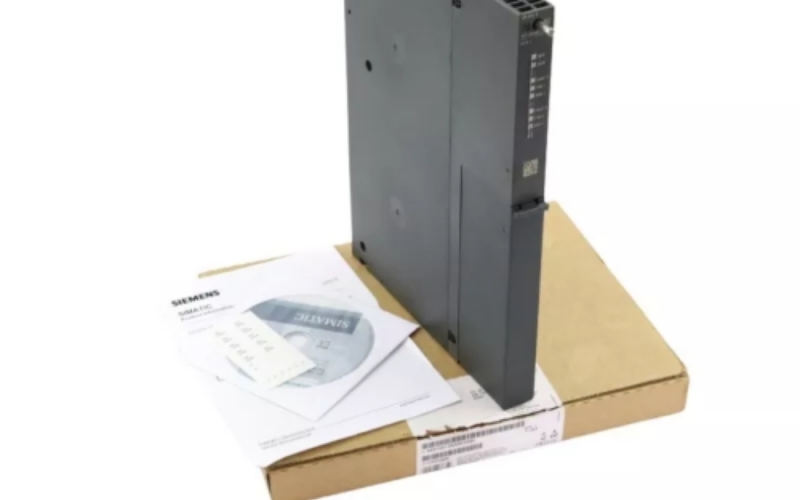

SIEMENS 6ES7441-2AA05-0AE0 SIMATIC S7-400 Digital Output Module

Technical Specifications of SIEMENS 6ES7441-2AA05-0AE0

l Manufacturer: Siemens

l Series: SIMATIC S7-400

l Product Type: Digital Output Module

l Output Channels: 16 digital outputs

l Output Type: Relay (normally open)

l Load Voltage Range: 5V DC to 250V AC, or up to 60V DC

l Max Switching Current per Channel: 2A

l Switching Frequency: Up to 2 Hz

l Isolation: Optical isolation between channels and backplane

l Connector Type: 40-pin front connector

l Power Supply: Draws from the backplane of the SIMATIC S7-400

l Operating Temperature: 0°C to +60°C

l Dimensions: 290 mm x 25 mm x 210 mm

l Weight: Approx. 0.7 kg

Features of SIEMENS 6ES7441-2AA05-0AE0

A. Versatile Voltage Range: Supports a wide load voltage range (5V DC to 250V AC) and high current capacity (up to 2A per channel), offering flexibility for diverse applications.

B. Reliable Relay Outputs: The 6ES7441-2AA05-0AE0 uses relay contacts, providing robust switching capabilities suitable for resistive and inductive loads.

C. Optical Isolation for Safety: Optical isolation between output channels and the system ensures safe and reliable operation by protecting against voltage spikes and interference.

D. Durable Design: Designed to operate in industrial environments with temperatures up to 60°C, ensuring stable performance under demanding conditions.

Applications of SIEMENS 6ES7441-2AA05-0AE0

The Siemens 6ES7441-2AA05-0AE0 is ideal for a variety of industrial applications, including:

1. Factory Automation: Controls high-power devices on production lines, such as motors, actuators, and alarms.

2. Building Management Systems: Suitable for managing large buildings’ HVAC systems, lighting, and power relays.

3. Process Control Systems: Controls relay-based outputs in process control environments requiring high current switching.

4. Infrastructure and Utilities: Used in water and waste treatment, energy management, and similar applications requiring reliable switching of AC and DC loads.

Related Part Numbers of SIEMENS 6ES7441-2AA05-0AE0

l 6ES7441-2AA02-0AE0: Digital output module with similar specifications for S7-400.

l 6ES7432-1HF00-0AB0: Analog input module compatible with the S7-400 series for analogue signal processing.

l 6ES7451-3AH00-0AE0: Digital input module compatible with the S7-400 series for enhanced input handling.
