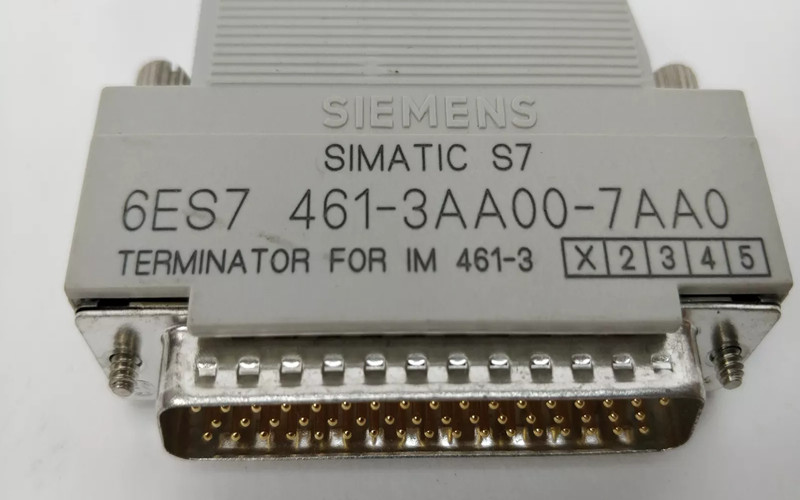

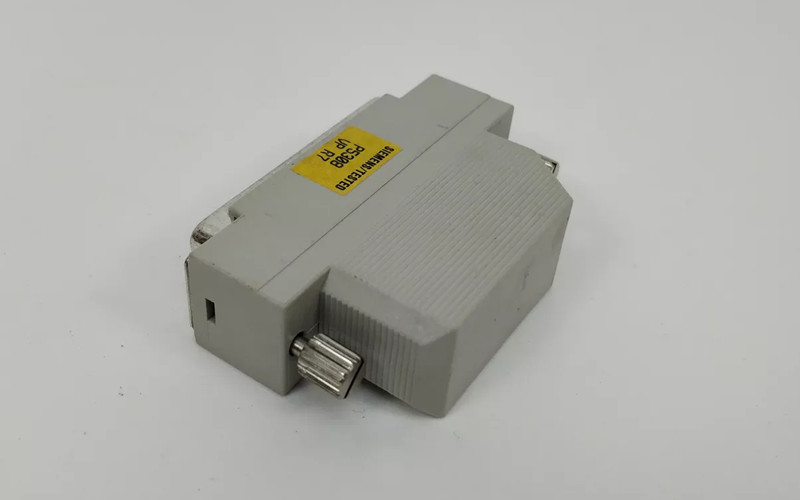

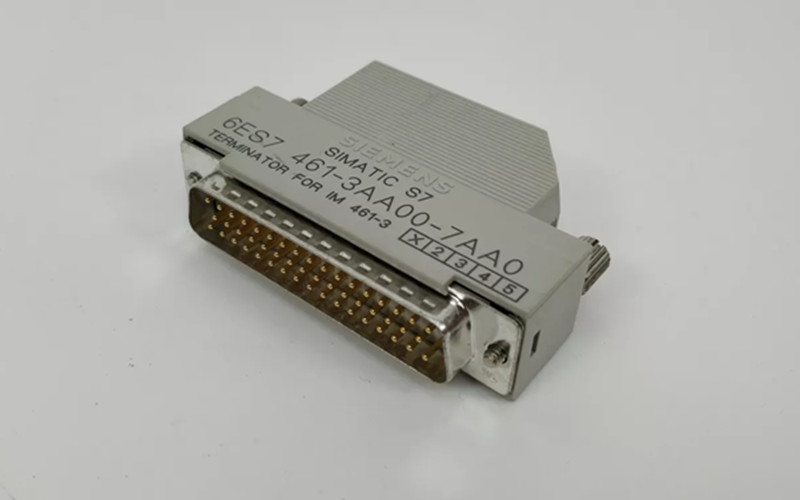

SIEMENS 6ES7461-3AA00-7AA0 Input Output Module

Technical Specifications of SIEMENS 6ES7461-3AA00-7AA0

l Product Name: Siemens 6ES7461-3AA00-7AA0

l Product Type: Input/Output Module

l Series: S7-400

l Module Type: Digital I/O

l Part Number: 6ES7461-3AA00-7AA0

l Voltage Supply: 24V DC

l Power Consumption: Approx. 60mA

l Input Voltage: 24V DC

l Output Type: Digital

l Mounting Type: DIN Rail

l Signal Type: 24V DC, Sinking/Sourcing

l Transmission Type: Parallel

l Operating Temperature Range: 0°C to +60°C

l Storage Temperature Range: -25°C to +70°C

l Protection Class: IP20 (for panel mounting)

l Weight: Approx. 230g

l Dimensions (HxWxD): 125 mm x 50 mm x 120 mm

Detailed Features of SIEMENS 6ES7461-3AA00-7AA0

l High-Quality Digital I/O Module: This module is designed for use with Siemens S7-400 series PLC systems and provides reliable input and output performance for complex automation tasks.

l Sinking and Sourcing Capability: The module supports both sinking and sourcing connections, allowing for flexibility in wiring to accommodate a wide range of devices and systems.

l 24V DC Digital Signals: The 6ES7461-3AA00-7AA0 module is specifically designed for 24V DC systems, ensuring compatibility with standard industrial control applications.

l Modular Integration: Easily integrates into Siemens S7-400 PLC configurations, ensuring seamless communication with other modules and devices for optimized automation solutions.

l Extended Temperature Range: With an operating temperature range from 0°C to +60°C, the module can function in various industrial environments, making it suitable for most factory automation setups.

l Durability and Robustness: Designed with an IP20 protection class, the module provides durability against typical industrial environments, including light exposure to dust and moisture.

Applications of SIEMENS 6ES7461-3AA00-7AA0

1. Industrial Automation: Widely used in factory automation systems to control machinery and processes requiring reliable digital I/O capabilities.

2. Process Control Systems are ideal for use in complex control applications where precise monitoring and control of digital signals are needed.

3. Energy Management: Integrates seamlessly with Siemens PLC systems to monitor and control power and energy usage across various industrial sectors.

4. Manufacturing Lines: Fast and reliable digital communication is essential for maintaining production speed and efficiency in assembly and packaging lines.

Related Part Numbers of SIEMENS 6ES7461-3AA00-7AA0

l Siemens 6ES7461-1AA00

l Siemens 6ES7461-3AA01

l Siemens 6ES7461-3AA02

l Siemens 6ES7461-7AA00

l Siemens 6ES7461-3AA00-7AB0
