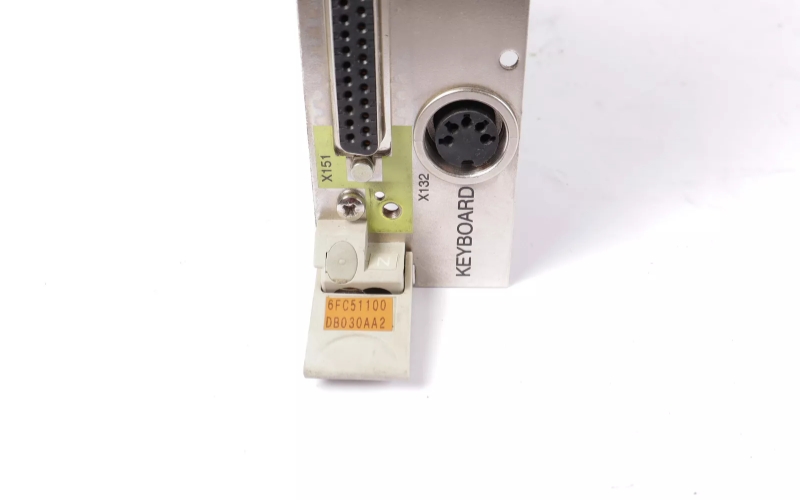

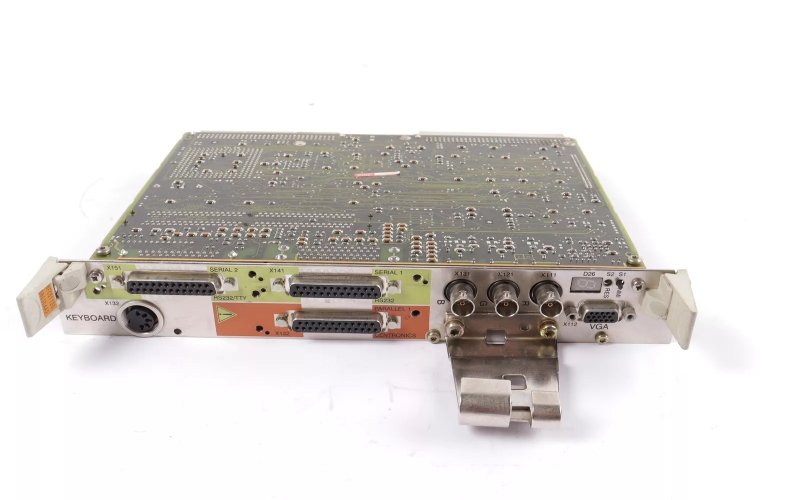

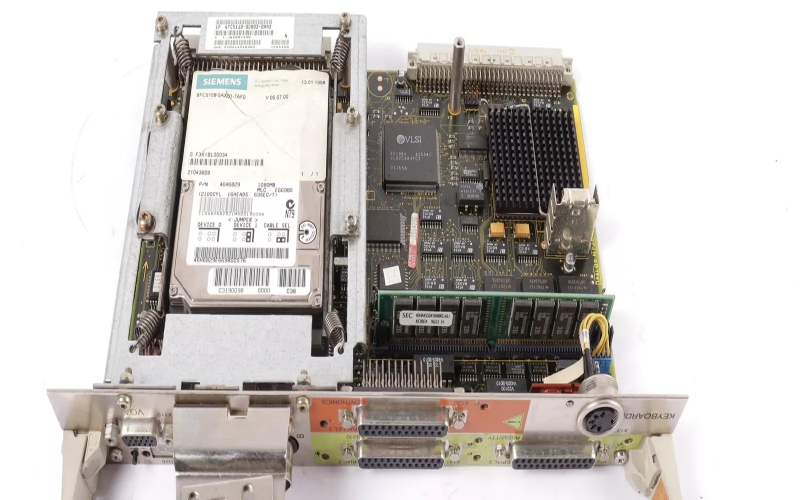

Siemens 6FC5110-0DB03-0AA2 SINUMERIK Module

General Description

The Siemens 6FC5110-0DB03-0AA2 is a high-performance SINUMERIK module for advanced CNC control systems. It seamlessly integrates with SINUMERIK 840D/810D, providing robust communication, precise control, and reliable performance for demanding industrial automation tasks. This module is engineered to deliver superior efficiency and productivity in complex machining applications, making it an essential asset for precision-driven industries.

Technical Specifications of Siemens 6FC5110-0DB03-0AA2

l Part Number: 6FC5110-0DB03-0AA2

l Brand: Siemens

l Product Type: SINUMERIK Module

l Series: SINUMERIK 840D/810D

l Voltage Supply: 24V DC

l Dimensions: Compact design suitable for space-constrained installations

l Weight: Approximately 1.3 kg

l Mounting Type: DIN rail or panel mount

l Communication Interfaces: PROFIBUS DP, MPI, Ethernet, RS232/RS485

l Operating Temperature: 0°C to 50°C

l Storage Temperature: -25°C to 70°C

l Protection Class: IP20

l Certifications: CE, UL, ISO certified

l Cooling System: Passive cooling for efficient temperature management

Detailed Features of Siemens 6FC5110-0DB03-0AA2

A. Comprehensive Communication Options: Equipped with multiple communication interfaces, including PROFIBUS DP, MPI, Ethernet, and RS232/RS485, the 6FC5110-0DB03-0AA2 offers enhanced flexibility for integrating with a wide variety of industrial equipment and networks.

B. Robust Design for Harsh Environments: The module delivers stable and reliable performance even in demanding industrial settings, minimizing downtime and ensuring continuous productivity.

C. Energy Optimization: This module features intelligent energy management, which reduces power consumption, promoting energy-efficient operations without sacrificing performance or accuracy in CNC and automation applications.

D. Easy Installation and Maintenance: The module is designed for user-friendly installation and offers options for DIN rail or panel mounting. It allows for quick integration into automation systems. Integrated diagnostics simplify maintenance, ensuring optimal performance with minimal intervention.

Applications of Siemens 6FC5110-0DB03-0AA2

1. Advanced CNC Machinery: Ideal for controlling complex CNC machines, including multi-axis systems, milling machines, lathes, and grinders that require precise and efficient performance.

2. Automated Manufacturing Systems: Suitable for automated assembly lines in the automotive, aerospace, and electronics industries, providing reliable and consistent control.

3. Industrial Robotics: Used in robotic applications for accurate motion control, high-speed data communication, and precise automation.

4. Process Automation: Perfect for logistics, packaging, and material handling systems that demand robust and scalable control solutions.

Related Part Numbers of Siemens 6FC5110-0DB03-0AA2

l 6FC5110-0DA00-0AA1: A previous version with basic communication capabilities.

l 6FC5210-0DB00-0AA2: An alternative SINUMERIK module with enhanced features for specialized applications.

l 6FC5140-0DB01-0AA1: A related model featuring additional communication options.

l 6FC5310-0DB03-0AA0: Advanced module with extended automation capabilities for complex systems.

For the previous part, please refer to the link:  Siemens 6FC5110-0BB03-0AA1
