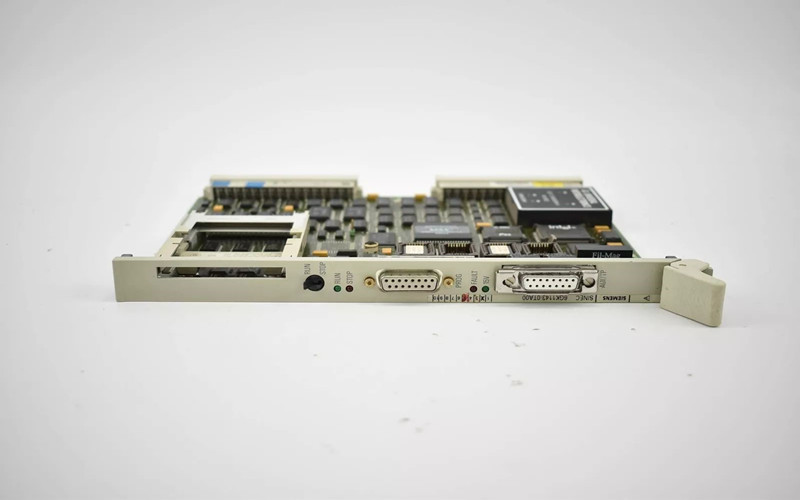

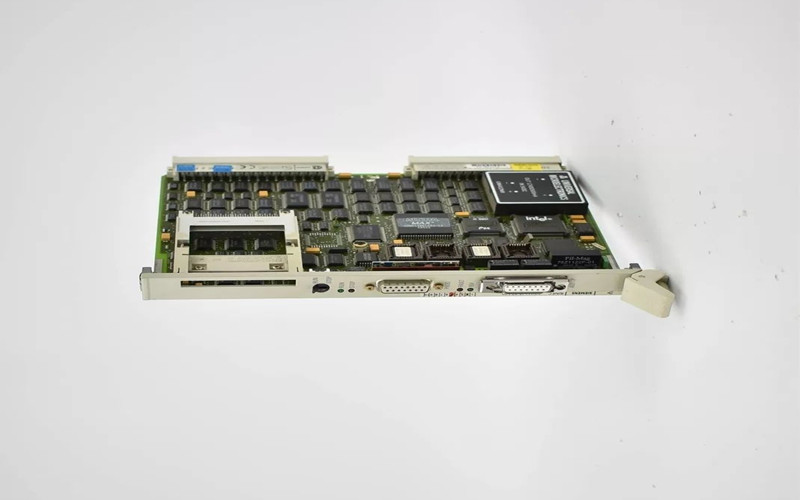

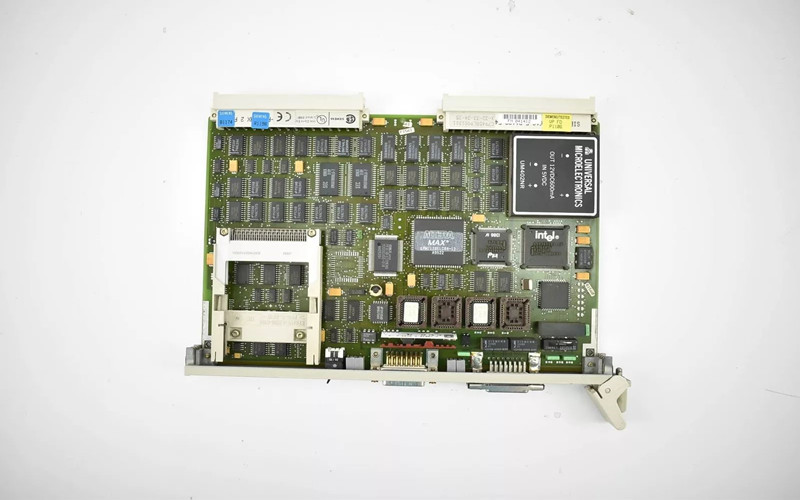

SIEMENS 6GK1143-0TA00 Communication Processor

General Description:

The SIEMENS 6GK1143-0TA00 is a high-performance communication processor that facilitates seamless communication between automation systems and field devices via the PROFIBUS network. It ensures reliable data transmission and supports a wide range of industrial applications. This module is suitable for integration into Siemens automation systems, delivering enhanced connectivity and efficiency in industrial environments.

Technical Specifications of SIEMENS 6GK1143-0TA00 :

l Manufacturer: Siemens

l Model: 6GK1143-0TA00

l Type: Communication Processor

l Protocol: PROFIBUS

l Data Transmission Rate: Up to 12 Mbps

l Network Interface: PROFIBUS DP/MPI

l Operating Voltage: 24V DC

l Connector Type: 9-pin Sub-D

l Dimensions: 125 x 40 x 120 mm

l Weight: 0.2 kg

l Operating Temperature Range: 0°C to +60°C

l Certifications: CE, UL, CSA

Detailed Features of SIEMENS 6GK1143-0TA00:

A. High-Speed Data Transmission: Supports data transmission rates up to 12 Mbps, enabling rapid device communication.

B. Robust Connectivity: Compatible with PROFIBUS DP/MPI protocols, ensuring stable and secure network connections in industrial environments.

C. Versatile Integration: Can be seamlessly integrated into Siemens automation systems, enhancing data exchange between control units and field devices.

D. Easy Installation and Maintenance: The compact design, with user-friendly connectors and clear LED indicators for network diagnostics, facilitates quick setup and troubleshooting.

E. Reliable Performance: Operates efficiently in harsh industrial conditions with a temperature range of 0°C to +60°C, ensuring continuous operation without failures.

F. Global Compliance: Certified with CE, UL, and CSA standards, guaranteeing high quality and safety in various international markets.

Applications of SIEMENS 6GK1143-0TA00 :

1. Manufacturing Automation: Used in industrial automation setups to connect and manage various manufacturing machinery and devices.

2. Process Control: Ideal for process industries requiring precise equipment control and monitoring via PROFIBUS networks.

3. Energy Management: Facilitates communication between energy control systems for effective power distribution and monitoring.

4. Building Automation: Integrates with building management systems to control HVAC, lighting, and security systems.

5. Water and Wastewater Treatment: Supports communication between control systems and field devices for efficient plant operation.

Related Part Numbers of SIEMENS 6GK1143-0TA00 :

l 6GK1143-0AA01: Communication processor for similar PROFIBUS networks.

l 6GK1143-0TA01: Upgraded version with enhanced features for PROFIBUS networks.

l 6GK1905-0EA00: Accessory cable for PROFIBUS DP connections.

l 6ES7972-0BA12-0XA0: Siemens PROFIBUS connector.

l 6ES7972-0BB12-0XA0: PROFIBUS DP connector with screw terminals.
