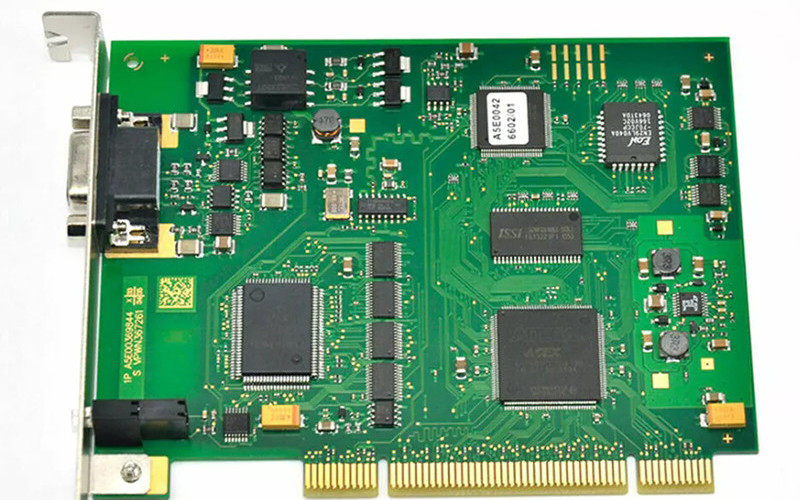

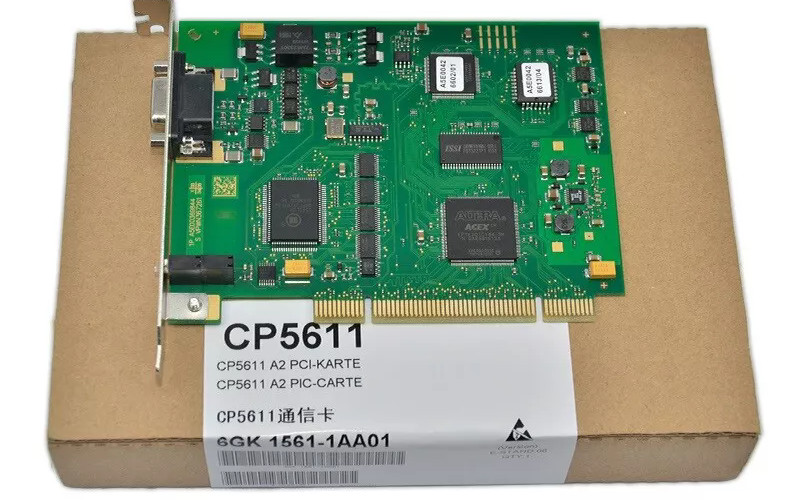

SIEMENS 6GK1561-1AA01 PROFIBUS CP5611 Communication Module

General Description

The Siemens 6GK1561-1AA01 is a high-performance PROFIBUS communication module that facilitates seamless communication between industrial devices and systems. This module is ideal for integrating PCs into PROFIBUS networks, offering reliable data exchange and efficient network management. The CP5611 communication module enhances automation systems by providing fast and secure connectivity, making it suitable for various industrial applications.

Technical Specifications of SIEMENS 6GK1561-1AA01

l Manufacturer: Siemens

l Model Number: 6GK1561-1AA01

l Product Type: PROFIBUS Communication Module (CP5611)

l Network Interface: PROFIBUS DP (up to 12 Mbps)

l Bus Connector: 9-pin D-Sub PROFIBUS interface

l PC Interface: PCI slot for standard PCs

l Power Supply: 5V DC (via PCI slot)

l Operating Temperature: 0°C to 55°C

l Storage Temperature: -40°C to 70°C

l Dimensions: Standard PCI card form factor

l Weight: Approx. 150g

l Certifications: CE, UL, RoHS

l LED Indicators: Status, Data Communication

Detailed Features of SIEMENS 6GK1561-1AA01

A. High-Speed Communication: Supports up to 12 Mbps data transfer rates, enabling rapid and efficient data exchange within PROFIBUS networks.

B. Easy Integration: The 6GK1561-1AA01 is a PCI-based module, making it easy to install in any standard PC and quickly integrate with PROFIBUS systems.

C. Reliable Performance: It is designed for stability and delivers consistent communication in demanding industrial environments with minimal latency and high data accuracy.

D. Versatile Connectivity: Equipped with a 9-pin D-Sub interface for direct PROFIBUS connection, ensuring compatibility with various industrial devices and controllers.

E. Diagnostic Features: Includes LED indicators for status monitoring and data communication, simplifying diagnostics and maintenance tasks.

Applications of SIEMENS 6GK1561-1AA01

1. Factory Automation: Integrates PCs into PROFIBUS-based automation systems for control, monitoring, and data acquisition.

2. Process Industries: Ideal for use in complex process control environments, including petrochemical, pharmaceuticals, and food & beverage industries.

3. Building Automation: Facilitates communication between HVAC systems, lighting controls, and other building management devices.

4. Energy Management: Provides reliable communication for energy monitoring and control systems, optimizing power distribution and usage.

Related Part Numbers of SIEMENS 6GK1561-1AA01

l 6GK1561-1AA00: Earlier version of the CP5611 with standard performance.

l 6GK1561-1AA11: Enhanced model with advanced diagnostic capabilities.

l 6GK1571-1AA00: Similar communication module with USB interface for mobile applications.

l 6GK1561-1AA02: Upgraded version with improved firmware and higher data rates.

For previous part, please refer to the link: SIEMENS 6GK1161-3AA01
